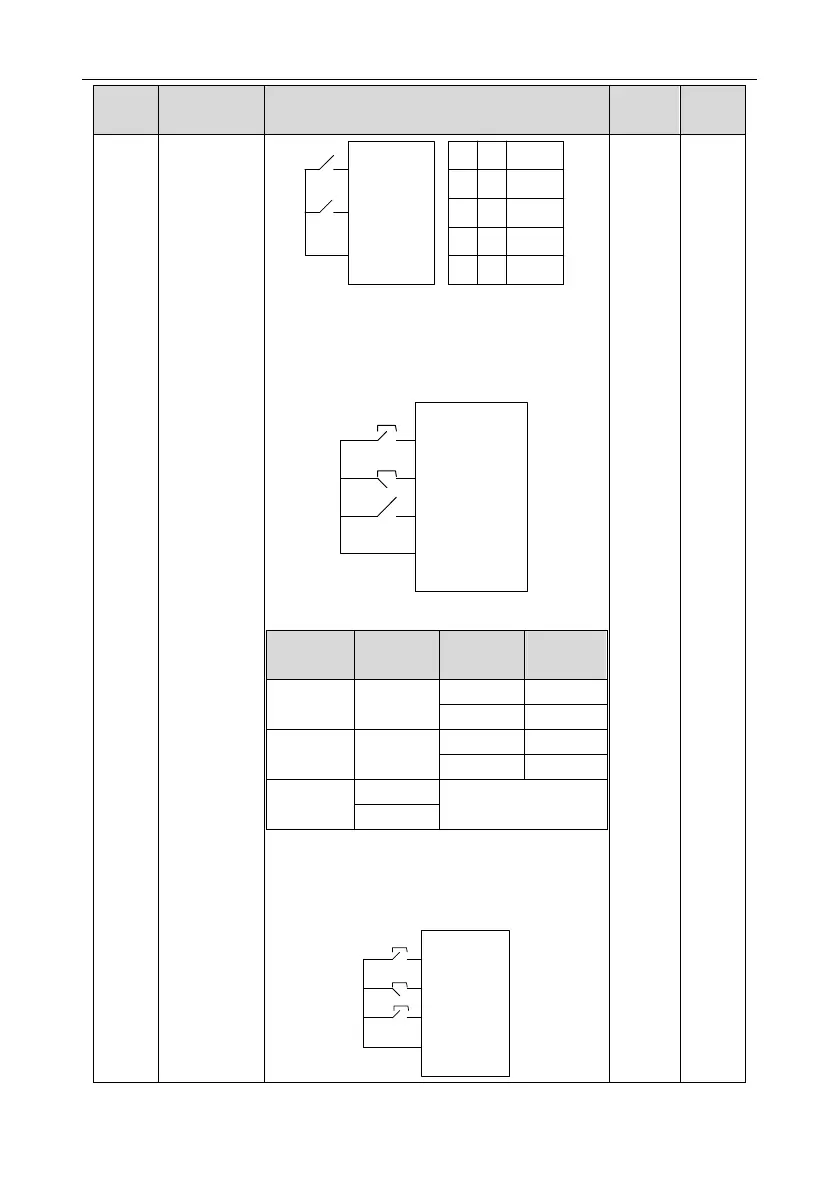

INVT Goodrive200A Series User Manual

GD200A series VFD Function parameters
-59-
Function
code
Name
Description
Default
value
Modify
FWD
REV
COM
K1
K2
Running
command
FWD REV
OFF OFF
OFF
OFF
ON
ON
ON ON
Stopping
Stopping
Forward
running
Reverse
running
2: 3-wire control 1; Sin is the enabling terminal on
this mode, and the running command is caused by
FWD and the direction is controlled by REV. Sin
is natural closed.
COM
K
SB2
SB1
FWD
REV
SIn
The direction control is as below during operation:
Sln
REV
Previous
direction
Current
direction
ON
OFF→ON
Forward
Reverse
Reverse
Forward
ON
ON→OFF
Reverse
Forward
Forward
Reverse
ON→OFF
ON
Decelerate to stop
OFF
3: 3-wire control 2; Sin is the enabling terminal on
this mode, and the running command is caused by
SB1 or SB3 and both of them control the running
direction. NC SB2 generates the stop command.
COM
SB2
SB1
FWD
REV
SIn
SB3
