ION CUB - Page 11

Cub Instrument User Manual V2.4
Unrivalled Gas Detection. Page 11 of 46 ionscience.com

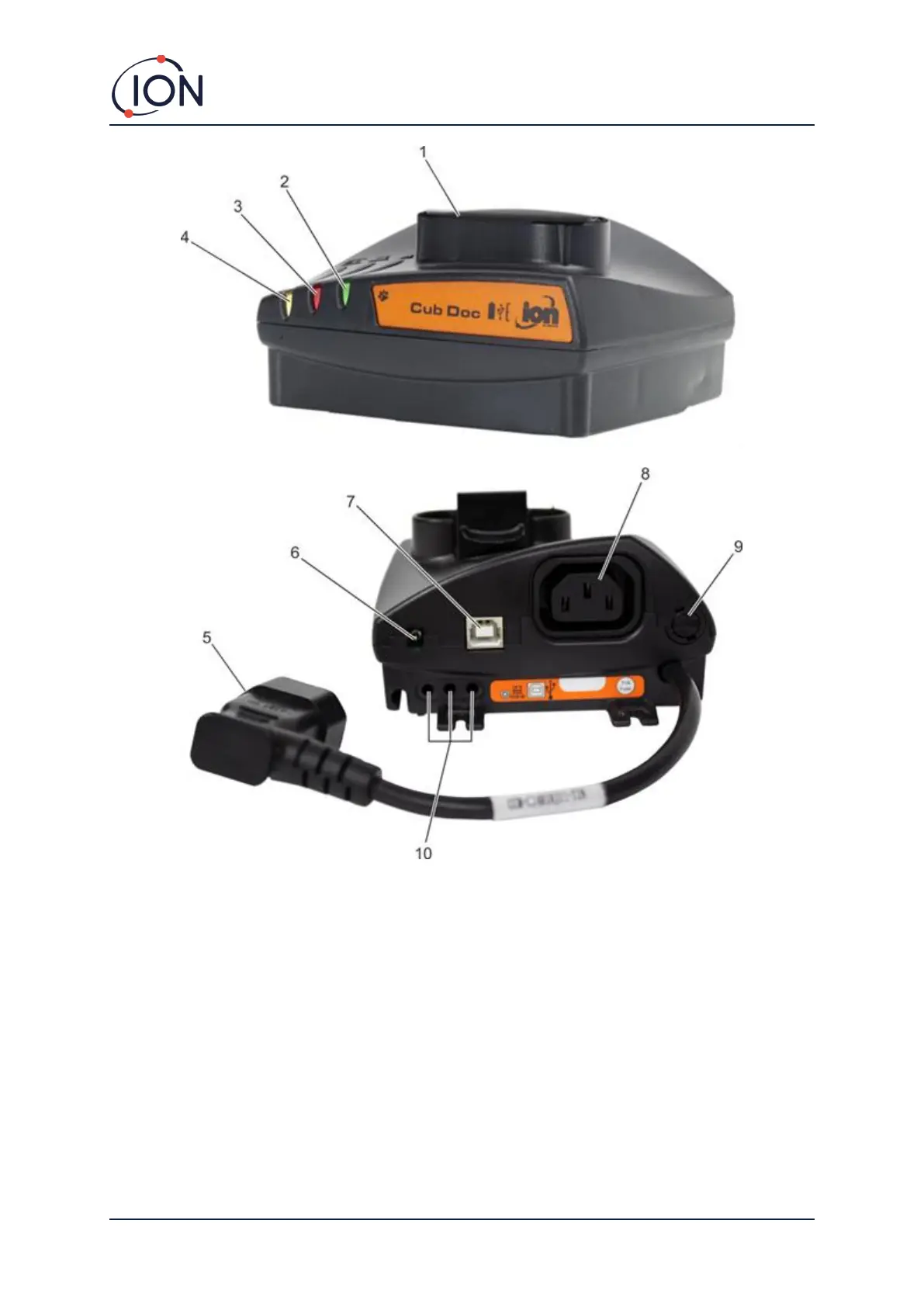

1 Cub dock.
2 Diagnostic LED.
3 USB LED.
4 Charge LED.
5 Flying socket for mains power
connection.
6 12V DC socket.
7 USB socket (not on Charge Dock).
8 Socket for “daisy chaining” (see next page).
9 Fuse socket.
10 Gas calibration ports (Calibration Dock
only).
