Step 3:Connecting the Wire Feeder Adapter and Components

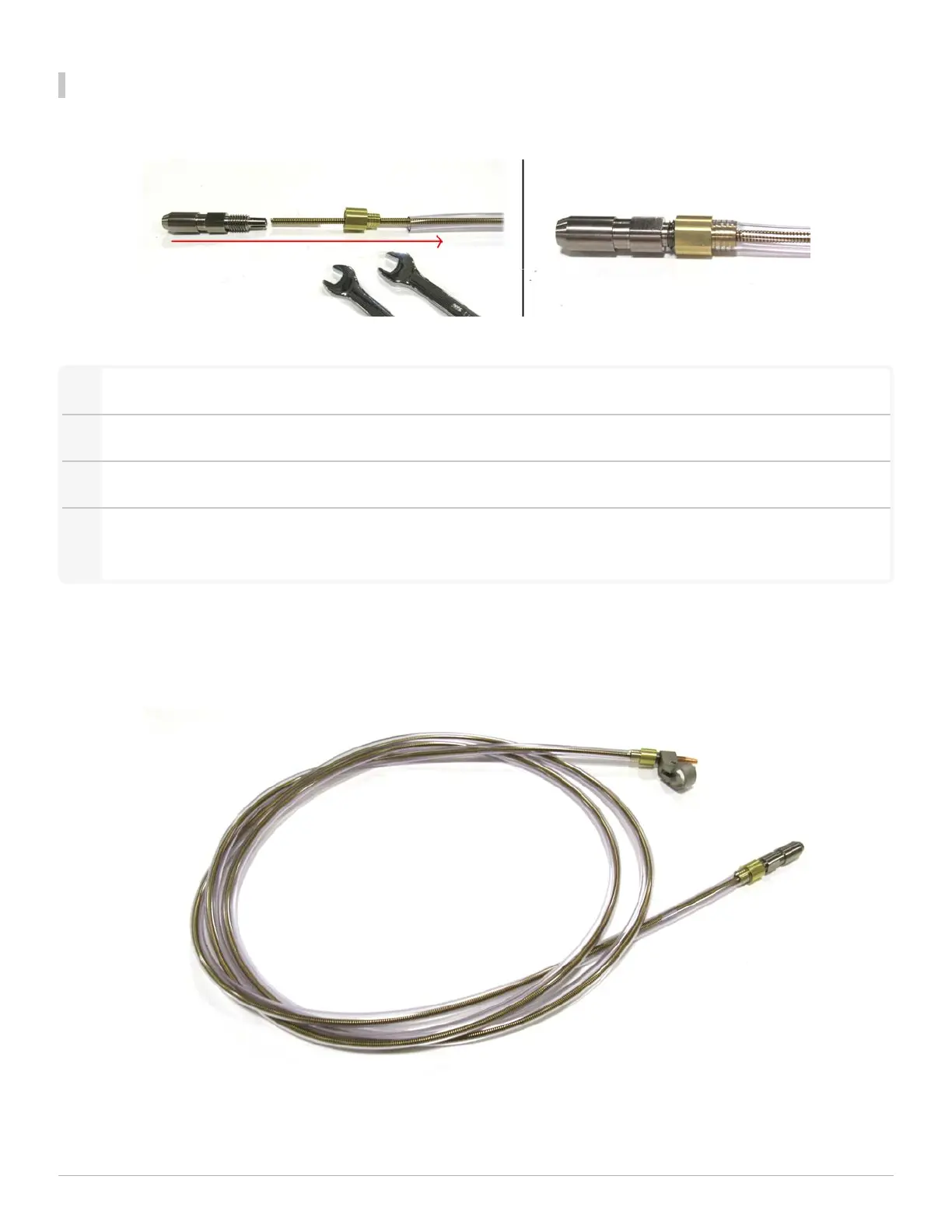

The wire feeder adapter and components can be assembled from left to right, as shown below.
1
Insert the Liner into the Wire Feeder Adapter until the liner is flush with the end of wire feeder adapter.
2
Manually screw the Nut on to the Wire FeederAdapter.
3
Tighten the Nut on the Wire Feeder Adapter using a 10mm and 12mm wrenches.
4
Push the Housing Tube over the barbed end of the Nut. Move the housing tube back and forth while
simultaneously pushing, until it is flush with the nut.
The photo below is what will be referred to as the Wire Feeder Attachment. This connects the Wire Feeder Unit to the
LightWELD Weld Head. The Wire Feeder Attachment can be disassembled and reassembled according to the hard or
soft wire configurations.
