Iris Technology Operator's Manual
QuietPower 1800 (QP-1800) Doc 287.F701 / 100412
Page 21 of 56 Rev 12 APR 2010
NOTE: Attach the DC Cable
harness first to the unit if
mounting the unit makes access
to the rear terminals difficult.
Refer to Section 2.6 on wiring
the inverter for full instructions
2.5 Mounting the Inverter
Before mounting the QuietPower Inverter, test the chosen location for adequate space around
the unit to allow for connections and ventilation. Mounting hardware should be corrosion
resistant ¼” or 6 mm diameter screws. Your mounting system should be able to support three
times the weight of the QuietPower Inverter, which weighs approximately 16 pounds (7.3Kg).
The more clearance for ventilation around the unit, the better the performance. At a minimum,
have 5” of free space on all sides of the inverter. For your convenience, four (4) Neoprene
Cylindrical Sandwich Mount Vibration Isolators and attachment hardware are provided for shock
mounting.
Mount the QuietPower Inverter on either a horizontal or vertical
surface (such as a bulkhead) using the mounting holes provided.
For secure, permanent mounting, use at least four (4) mounting
holes. Optionally, use four shock mounts provided. For safety
requirements, the QuietPower Inverter must be mounted in one of
the three orientations shown in Figure 3 below. Mounting it in one of
the two (2) prohibited configurations could allow foreign objects to
drop into the AC receptacle, controls, or cooling fan.

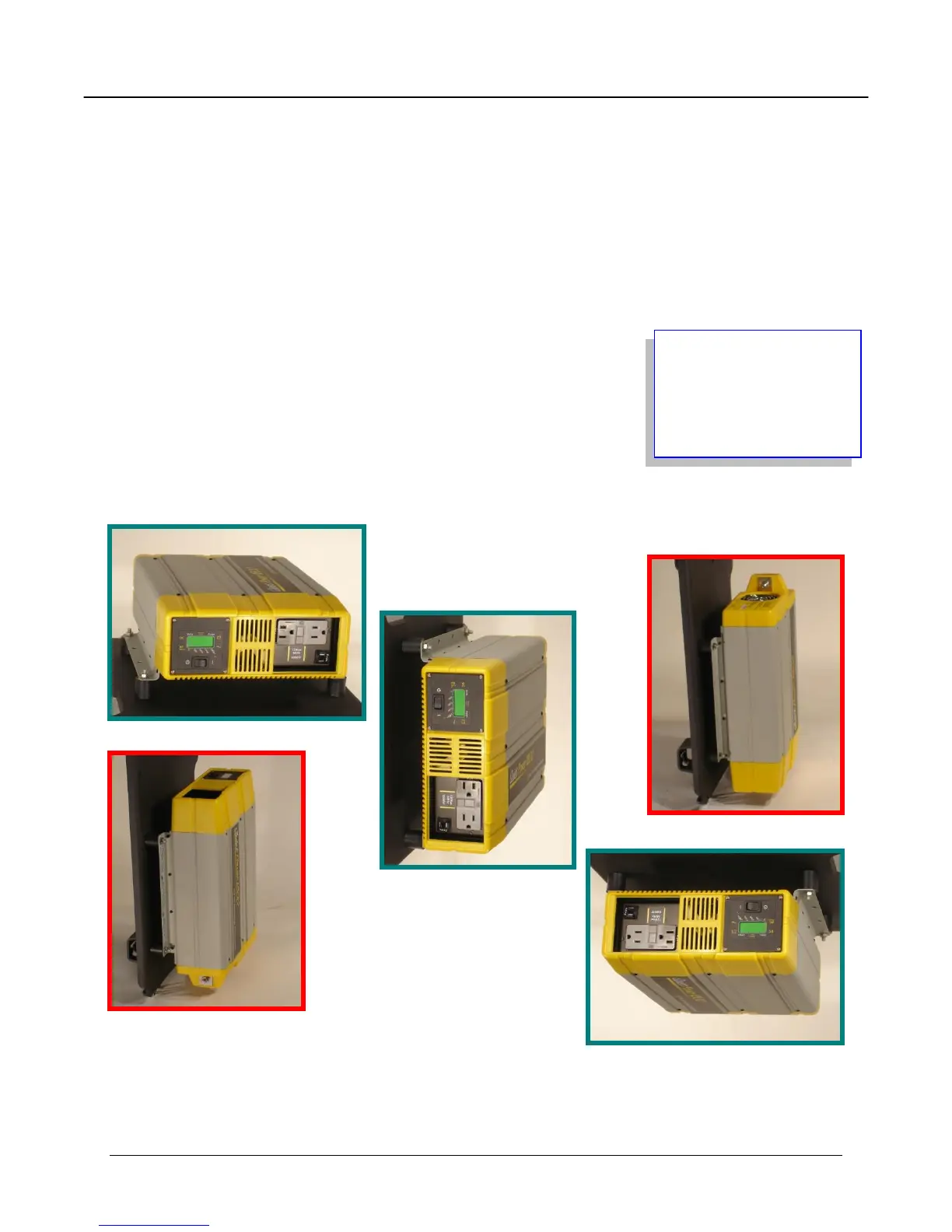

Figure 3: Approved Mounting Orientations of the QP-1800
