Iris Technology Operator's Manual
QuietPower 1800 (QP-1800) Doc 287.F701 / 100412
Page 45 of 56 Rev 12 APR 2010

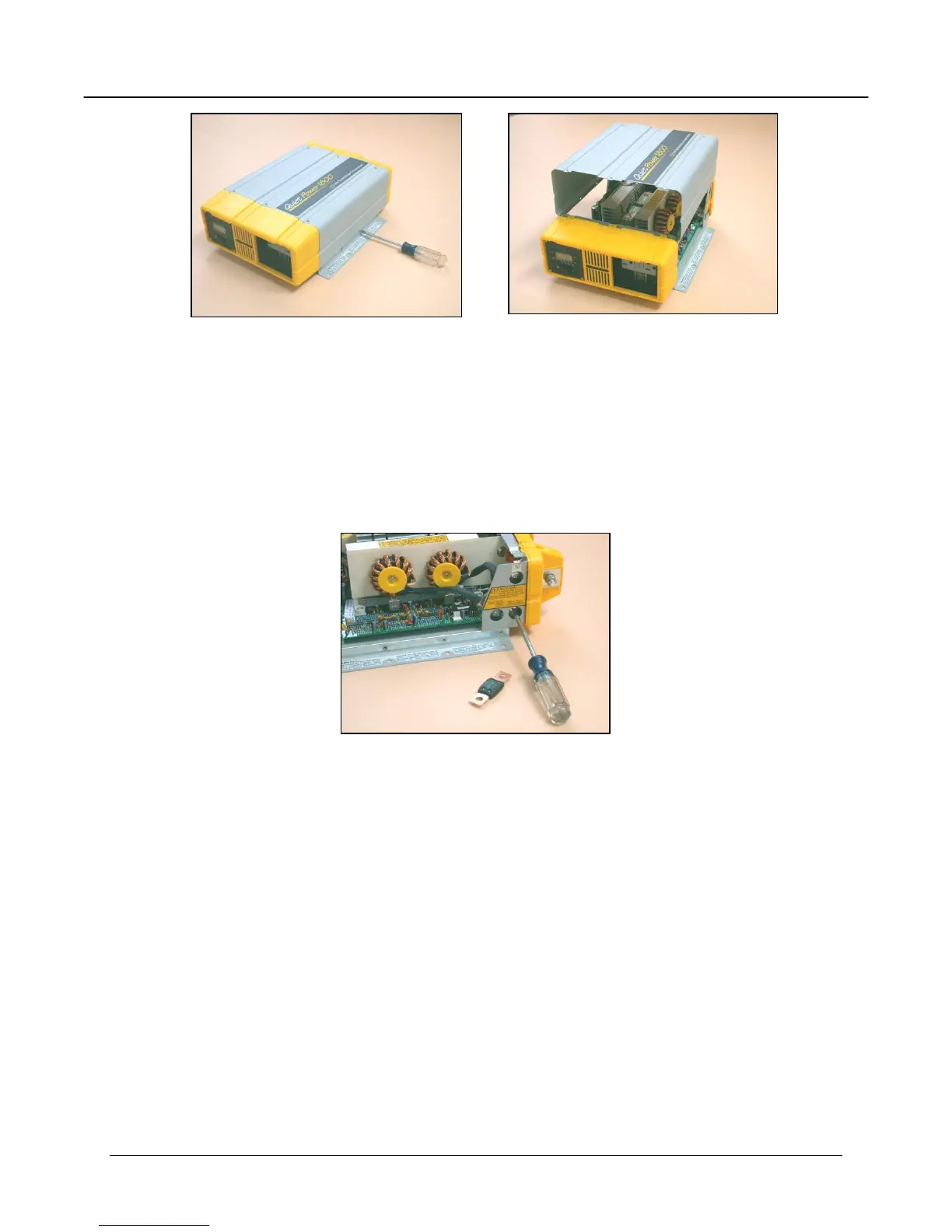

Figure 11: Inverter Cover Removal
9. Blow out dust from inverter using a compressed air duster.
10. Using an ohmmeter, measure the resistance of the installed fuse and determine
whether it has blown. A good fuse should measure as a short circuit.
11. If the fuse is defective, remove two screws securing fuse to inverter and remove
fuse from inverter (refer to Figure 12).
Figure 12: Fuse Removal and Replacement.
6.3.2 Fuse Installation
Install the fuse as follows:
1. Position the fuse on inverter and secure fuse to inverter with two screws.
2. Position the cover on inverter and secure cover to inverter with 14 screws.
3. Make sure inverter power switch is in off ('O') position.
4. Connect inverter DC wires first then connect to 24 VDC power source (NATO Plug).
5. Turn inverter switch to the On („|‟) position.
6. Test inverter for proper operation. Refer to Section 4, Test And Troubleshooting.
