Iris Technology Operator's Manual
QuietPower 1800 (QP-1800) Doc 287.F701 / 100412
Page 22 of 56 Rev 12 APR 2010
2.5.1 Control Panel Orientation
The QuietPower QP-1800 control panel can be detached
and reoriented to facilitate accessing the panel in various
mounting positions. Remove and re-attach the control panel
depending on the orientation of the base unit itself. For
example, if the unit is mounted on a vertical surface, you
may want to remove the panel and attach it so it is again
readable horizontally.

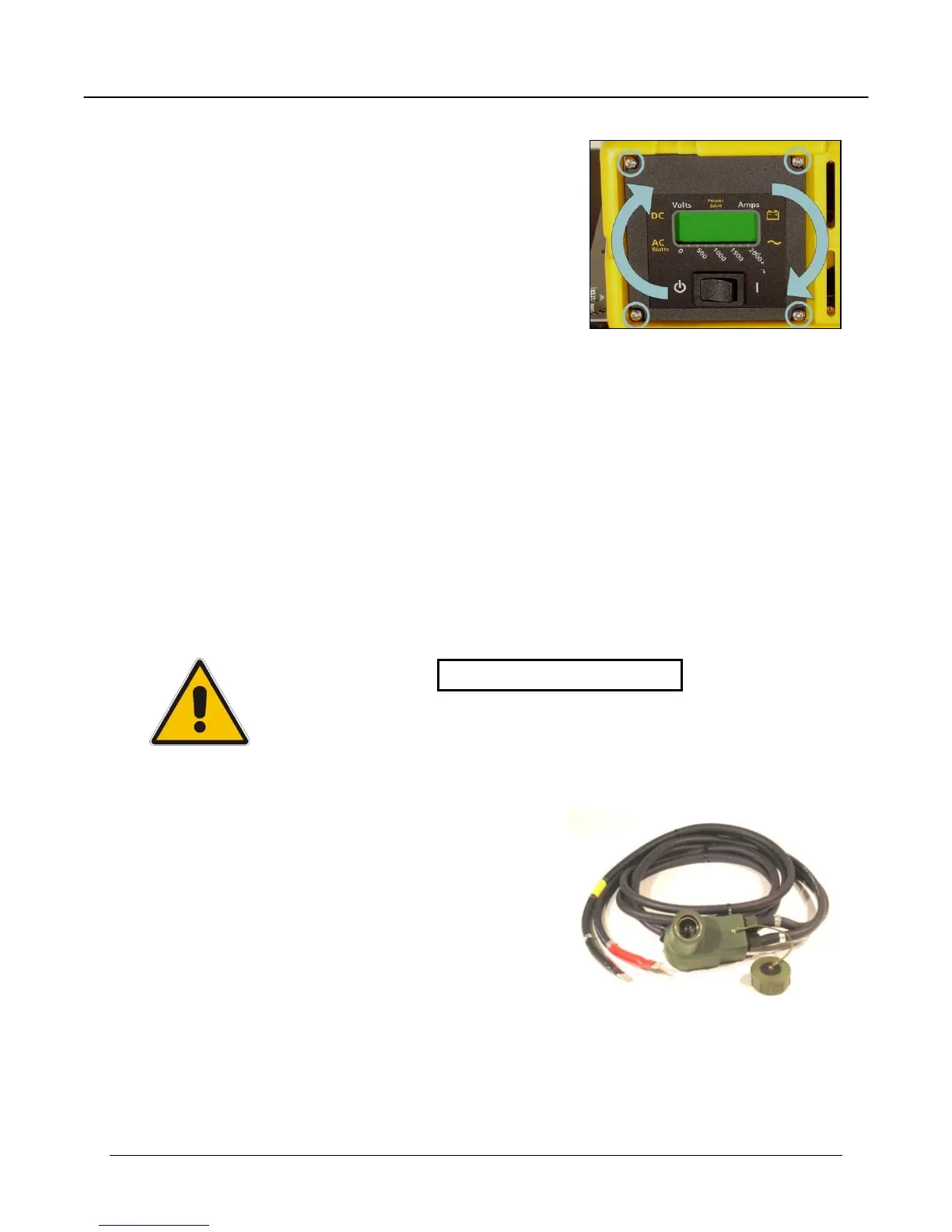

Figure 4: Control Panel Rotation and Attachment
This can be done as follows: (Refer to Figure 4 right);
1. Using the Philips screwdriver, remove the 4 screws on the outer edges of the control
panel.
2. Lift the panel straight-up, out of the housing
3. Rotate the panel to the desired orientation.
4. Reattaching the panel to the base unit.
5. Re-install and secure all four screws.
2.6 Wiring the Inverter
The DC connections must be complete as the first step in wiring the inverter, then the grounding
connections before the unit is ready to deliver AC power via the duplex outlet.
CAUTION
It is recommended that you read the entire wiring instruction Section first
before attempting to wire the Inverter
2.6.1 Making DC Wiring Connections
The cable for the QuietPower Inverter System is
approximately 12 feet long and is fabricated from 2/0
AWG multi-strand flexible wires. It is terminated with a
NATO Plug at one end and with two (2) lug terminals
connecting to the Inverter at the other end. This cable is
supplied as a part of the Inverter System (PN 287A107) or
Inverter Complete (PN 287A120). It is also available
separately as PN 287A106 to be used with the Inverter
(PN 287A101)
Figure 5: Inverter NATO Cable
To Next Page
