UP FRONT CONTROL PANEL (UFCP)

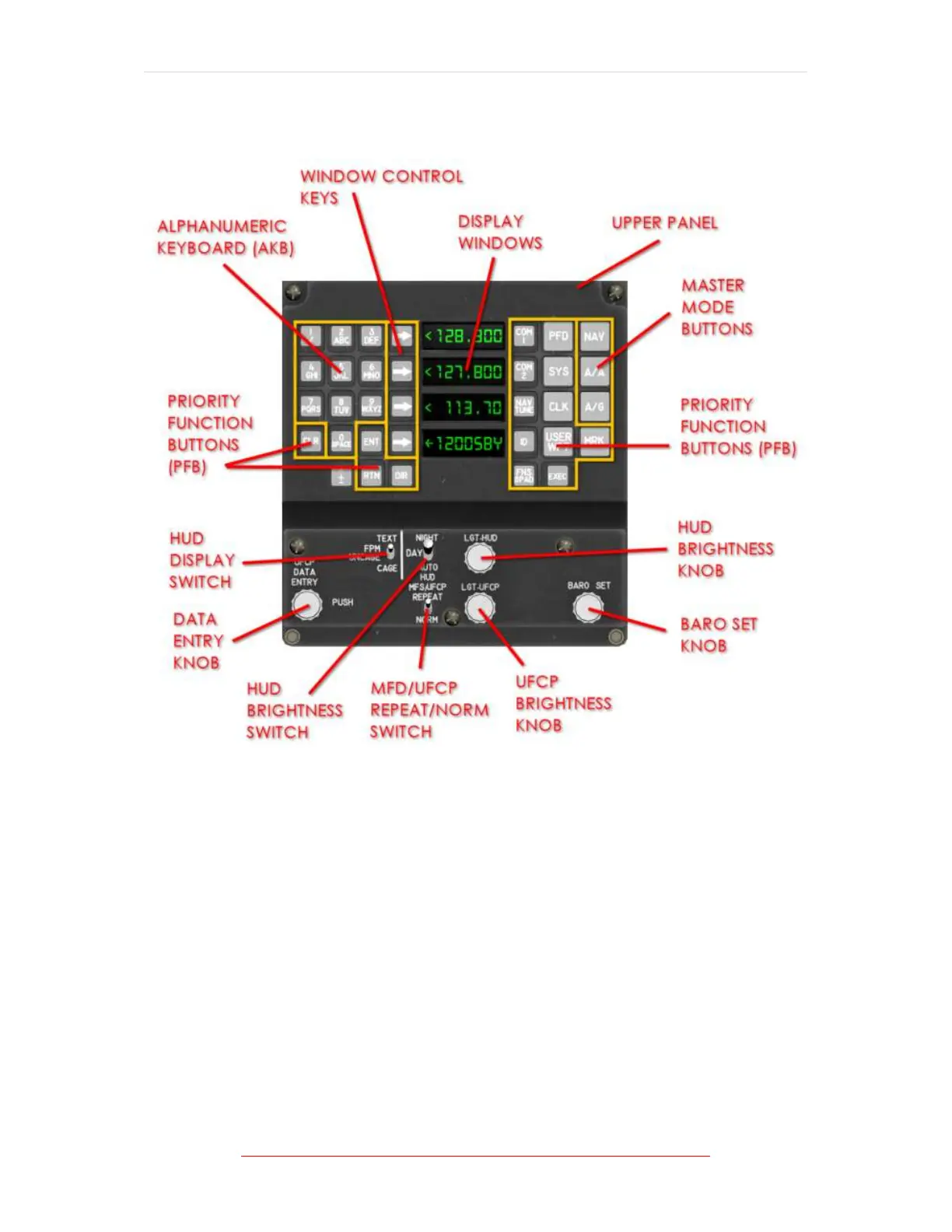

Figure 1-24 Up Front Control Panel (UFCP) (Upper and Lower)
The UFCP provides the primary means for data entry for a wide assortment of data
input and data selection required during flight.
The UFCP pilot interface consists of an upper and a lower panel. The UFCP provides
four eight-character display windows (window 1 being the uppermost while window
4 is the lowest), an alphanumeric keyboard, option select buttons, master mode
buttons, and priority function buttons (PFB) to provide the controls and displays
necessary for pilot access to required parameters for data entry.
