THE COCKPIT

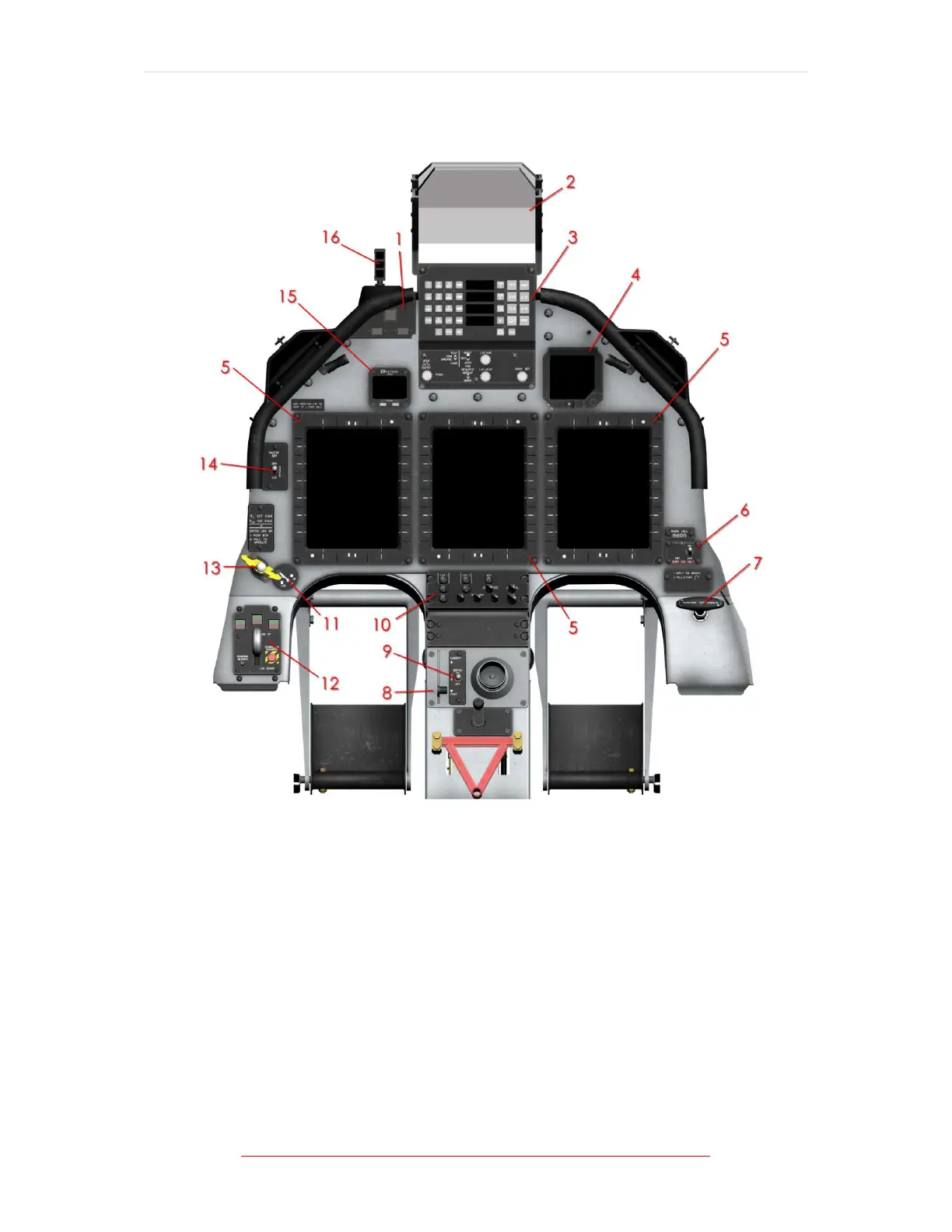

Figure 1-3 Front Instrument Panel
1. MASTER CAUTION/DISPLAY PANEL 9. DEFOG SWITCH
2. HEAD UP DISPLAY 10. AUDIO CONTROL PANEL
3. UP FRONT CONTROL PANEL 11. FLAP POSITION INDICATOR
4. BACKUP FLIGHT INSTRUMENT 12. LANDING GEAR CONTROL PANEL
5. MULTIFUNCTION DISPLAY 13. EMERGENCY GEAR EXTENSION HANDLE
6. EMERGENCY LOCATOR TRANSMITTER 14. MASTER ARM SWITCH
7. PARKING BRAKE HANDLE 15. DIGITAL CLOCK
8. VENT CONTROL LEVER 16. ANGLE OF ATTACK INDEXER
