LANDING GEAR SYSTEM
The aircraft is equipped with a retractable tricycle system actuated by the aircraft’s
hydraulic system. Four actuators, one on each gear and one for the main gear
doors, operate the landing gear from either the main or emergency hydraulic
systems.

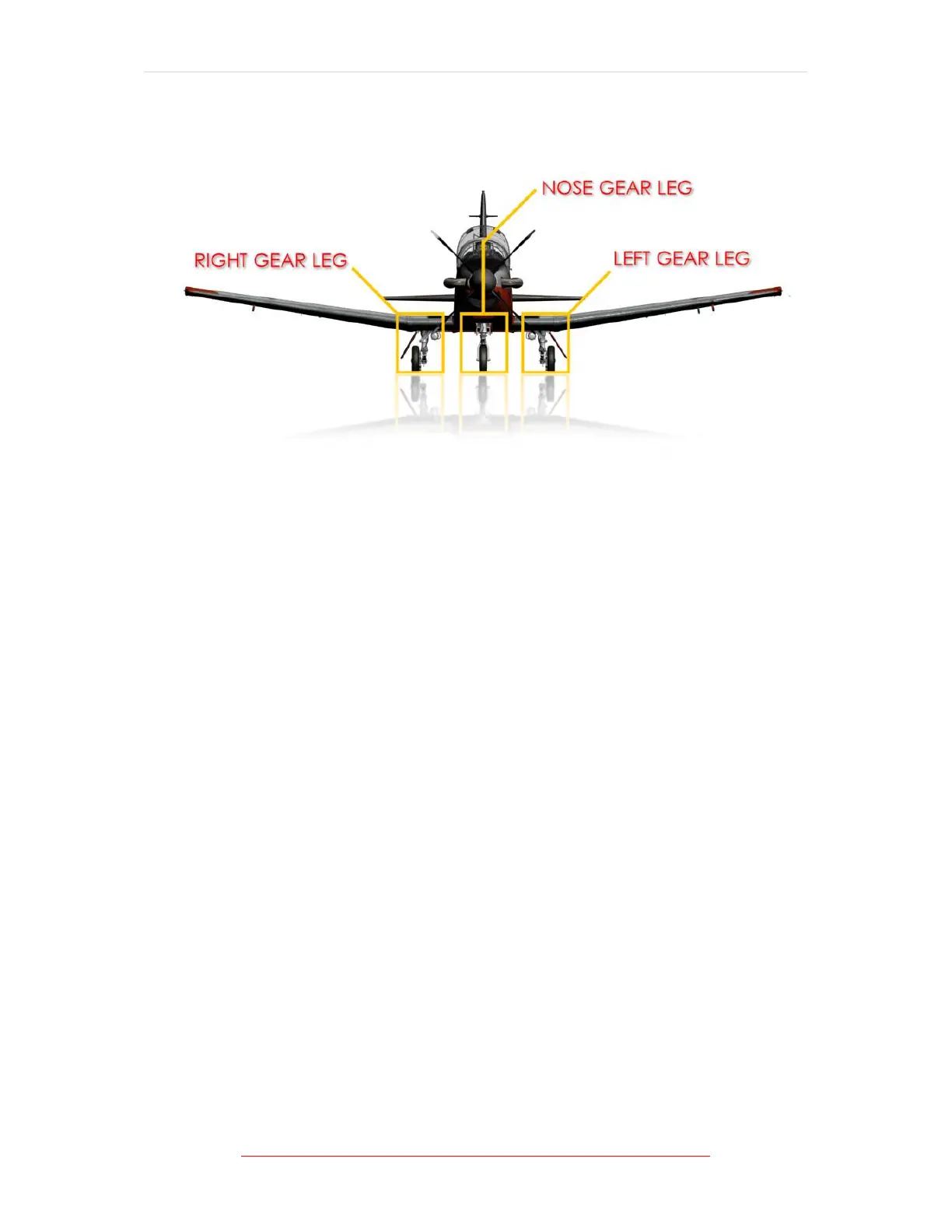

The major components are the two main landing gear with attached outboard gear
doors, two inboard gear doors, a steerable nose gear with moveable doors, landing
gear handles in each cockpit that provide gear position indications, and an
emergency extension handle, placarded EMER LDG GR, in the front cockpit.
