FIREWALL SHUTOFF HANDLE

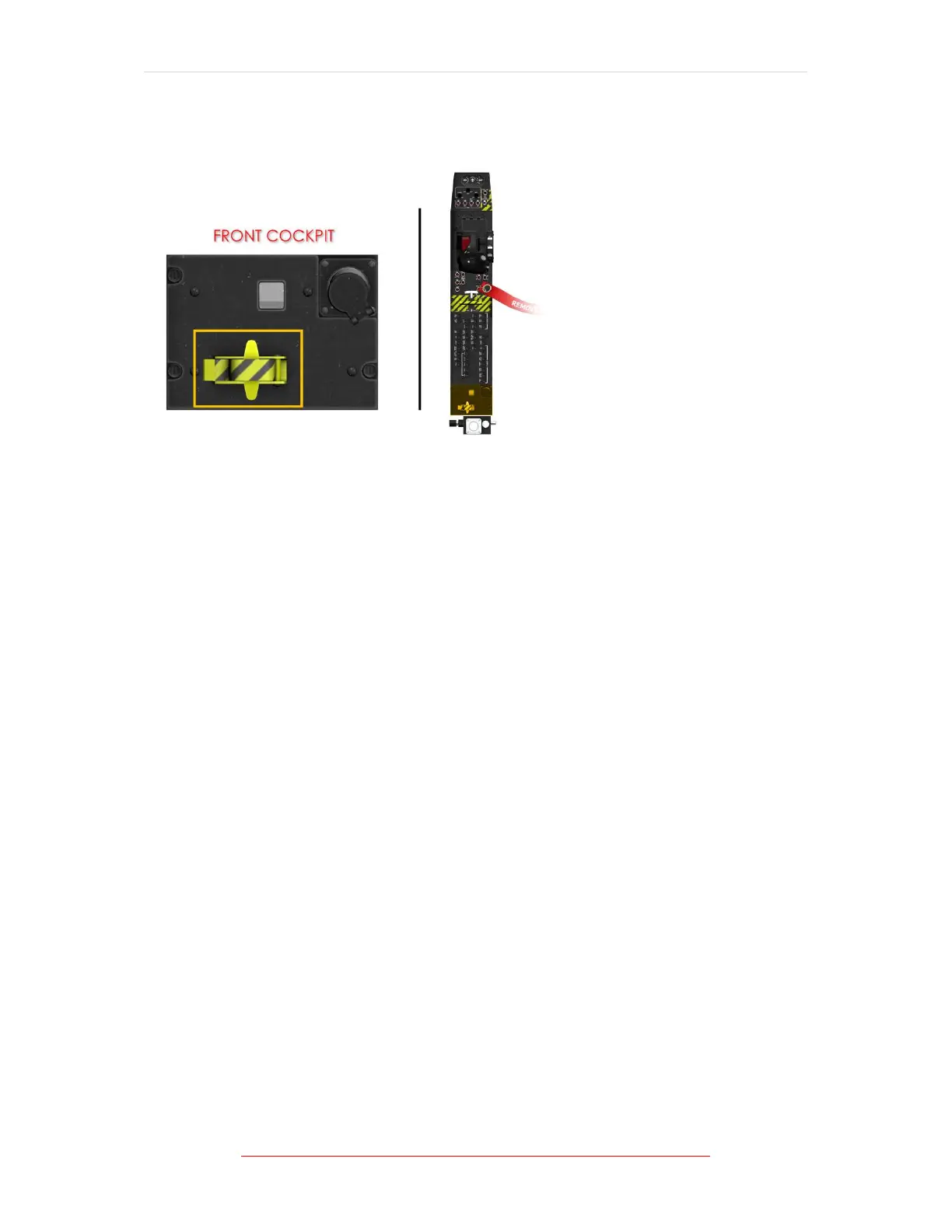

Figure 1-12 Firewall Shutoff Handle Location

The firewall shutoff handle, located on the front left console panel, mechanically

operates cables to close valves at the firewall, cutting off fuel and hydraulic fluid to

the engine, as well as cutting off bleed air from the engine.

To activate the firewall shutoff valves, lift the handle guard and rotate it out of the

way, then pull up on the handle (2 to 2.5 inches). The valves may be reset by

pushing the handle down.
