I A P 2 0 2 3 . 0 0 1 - A F M / I R I S T E X A N I I P A G E | 20
FOR SIMULATION USE ONLY ā NOT A TRAINING AID

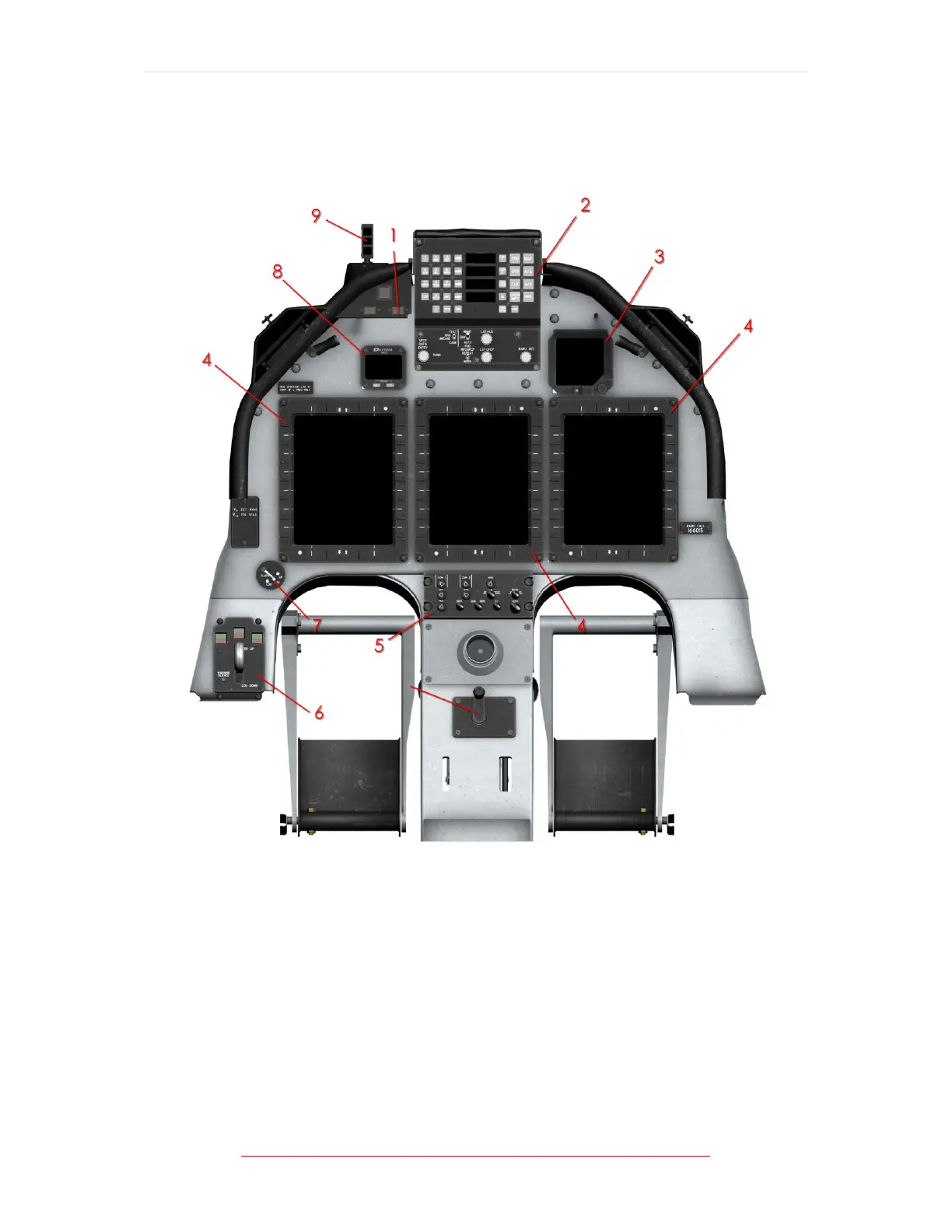

Figure 1-4 Rear Instrument Panel
1. MASTER CAUTION/DISPLAY PANEL 6. LANDING GEAR CONTROL PANEL
2. UP FRONT CONTROL PANEL 7. FLAP POSITION INDICATOR
3. BACKUP FLIGHT INSTRUMENT 8. DIGITAL CLOCK
4. MULTIFUNCTION DISPLAY 9. ANGLE OF ATTACK INDEXER
5. AUDIO CONTROL PANEL
