iv

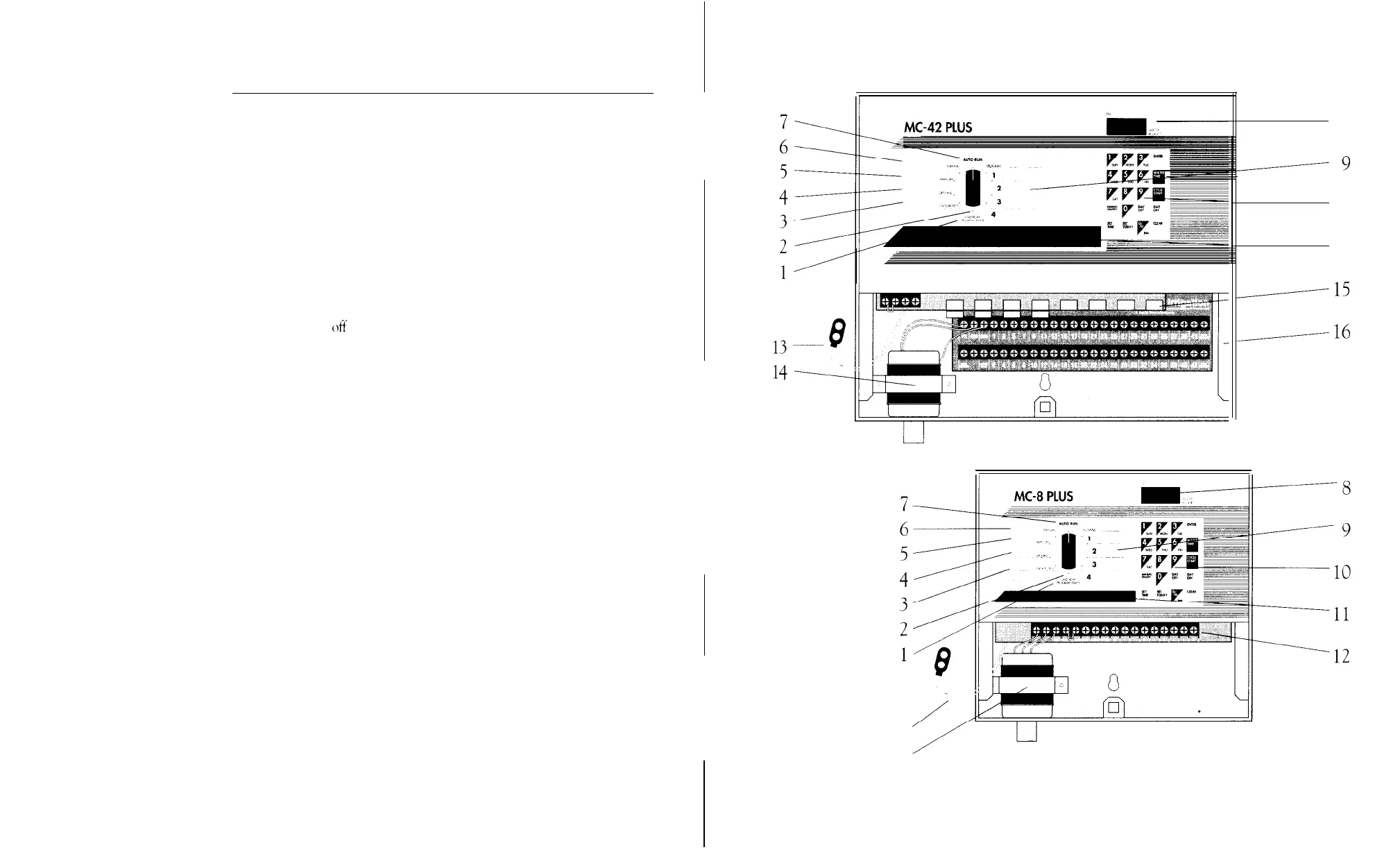

LOCATION
OF PARTS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
Function Dial
For selecting programming and operating functions.
Calendar/Program Erase
Calendar for setting calendar length
(
1 to 16 days) and/or program
erase for erasing all programmed information.
Station Test
For running a valve test for all stations from 1 to
9
minutes.
Options
For selecting options, single program option and seconds
watering time option.
Rain Off
For turning
off
output
to all stations manually or programming up
to 7
days
off.
Manual
For true manual on and
off~operation.
Auto/Run
Programming off posistion for automatic operation.
Digital Display
For
viewing
time
and
program
information.
Program Positions One Through Four
For selecting program.
Twenty Position Keyboard
For programming data and
operating
controller.
LED Station Indicator Lights
For
viewing
stations that are currently on.
Terminal Strip
MC-4,6,8
and 12 Plus
For hook-up of 24 volts, "GND", valve
wires,
common, pump start
and sensors.
Battery Snap
For hook-up of 9V alkaline battery to keep time during power failures.
1
10V/24V Transformer
Main Bus Strip MC-18, 24,
30,36
and 42 Plus
For hook-up
to
quick disconnect terminal strip.
Quick Disconnect Terminal Strip MC-18, 24, 30, 36 and 42 Plus
For hook-up of 24 volts,
"GND",
valve wires, common, pump start
and sensors.
Location of Parts
8
-9
10
11
-15
-16
13
14
Location of Parts
V
