28
TXG23
FOUR-WHEEL DRIVE SHIFT LEVER
(4WD model)

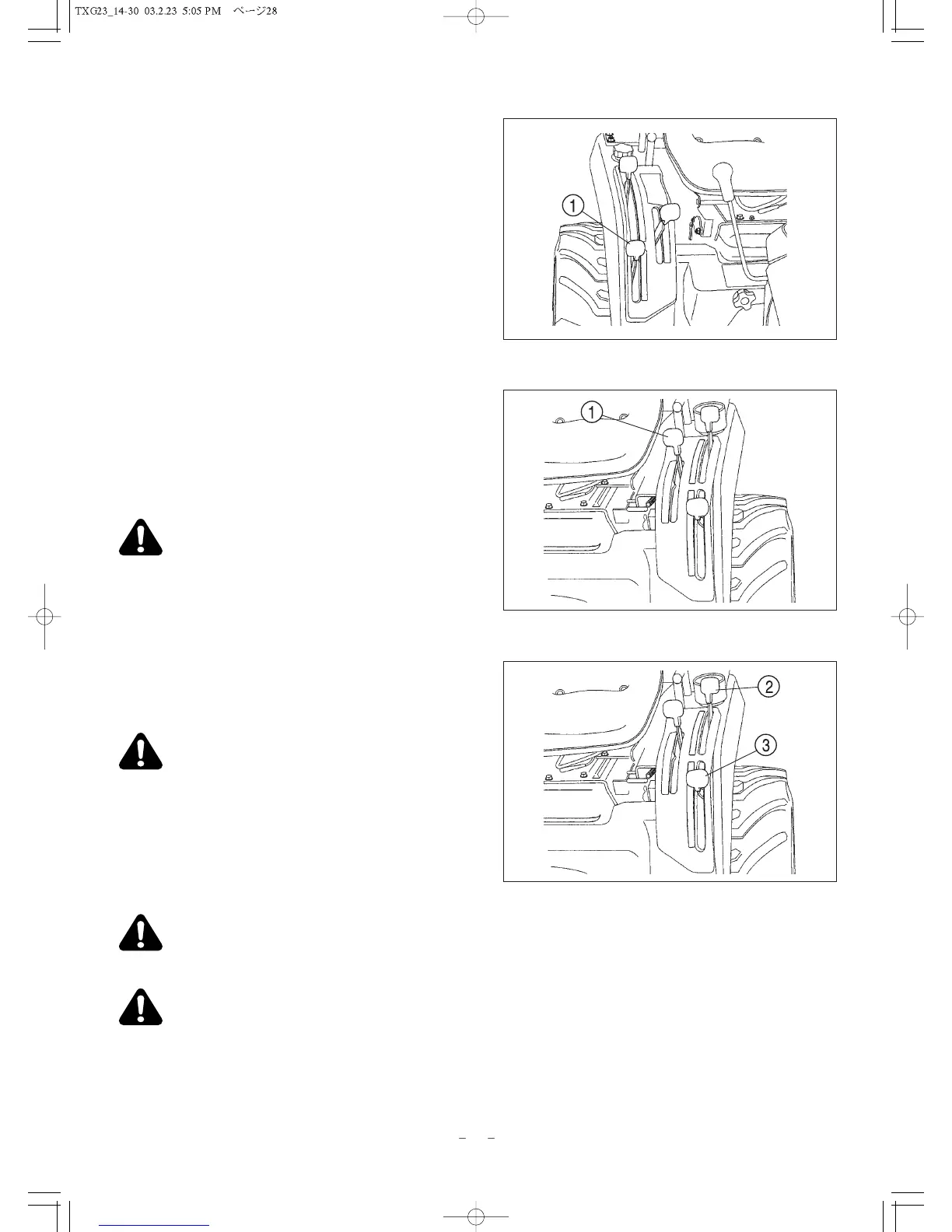

FIG. 22: Shift lever, 1, engages and disengages drive for
the front axle. Lever forward, the front axle is engaged,
and power is available to both front and rear axle. Lever
rearward, the front axle (4-WD) is disengaged.
IMPORTANT: Stop Tractor before engaging or disengag-
ing four -wheel drive.
Do not use 4-WD on hard surface. Rapid wear of front
tires and possible drive line damage could occur if 4-WD
is operated for prolonged periods on hard surface.
PTO CLUTCH LEVER
FIG. 23: PTO (Power Take-Off) clutch lever, 1, engages
and disengages both PTO's (Rear PTO, Mid PTO, or both
at same time) on Tractor.
When lever is forward, PTO (Rear PTO and Mid PTO) is
engaged.
When lever is returned to rear disengage position, the
gear drive is disengaged.
CAUTION: Always shut off PTO and shut off
Tractor engine before servicing PTO-driven
implement. Allow all movement and motion to
stop before leaving operator's seat.
REAR & MID PTO SELECTOR LEVERS
FIG. 24: Rear PTO (Power Take-Off) selector lever, 2, co-
ntrols rear PTO on Tractor.
When lever is forward, neutral position, the gear drive is
disengaged.
When lever is rearward, 540 rpm rear PTO is selected.
CAUTION: Always shut off PTO and shut off
Tractor engine before servicing PTO-driven
implement. Allow all movement and motion to
stop before leaving operator's seat.
Mid PTO (Power Take-Off) selector lever, 3, controls mid
PTO on Tractor.
When lever is forward, neutral position, the gear drive is
disengaged.
When lever is rearward, 2000 rpm rear PTO is selected.
CAUTION: Always shut off PTO and shut off
Tractor engine before servicing PTO-driven
implement. Allow all movement and motion to
stop before leaving operator's seat.
CAUTION: Always select engine speed to
ensure safe operation. Reduce speed prior to
turning or backing Tractor.
FIG. 22
FIG. 23
FIG. 24
