Isokern IBV-36 Installation, Operation, Maintenance And Owner's Manual

11

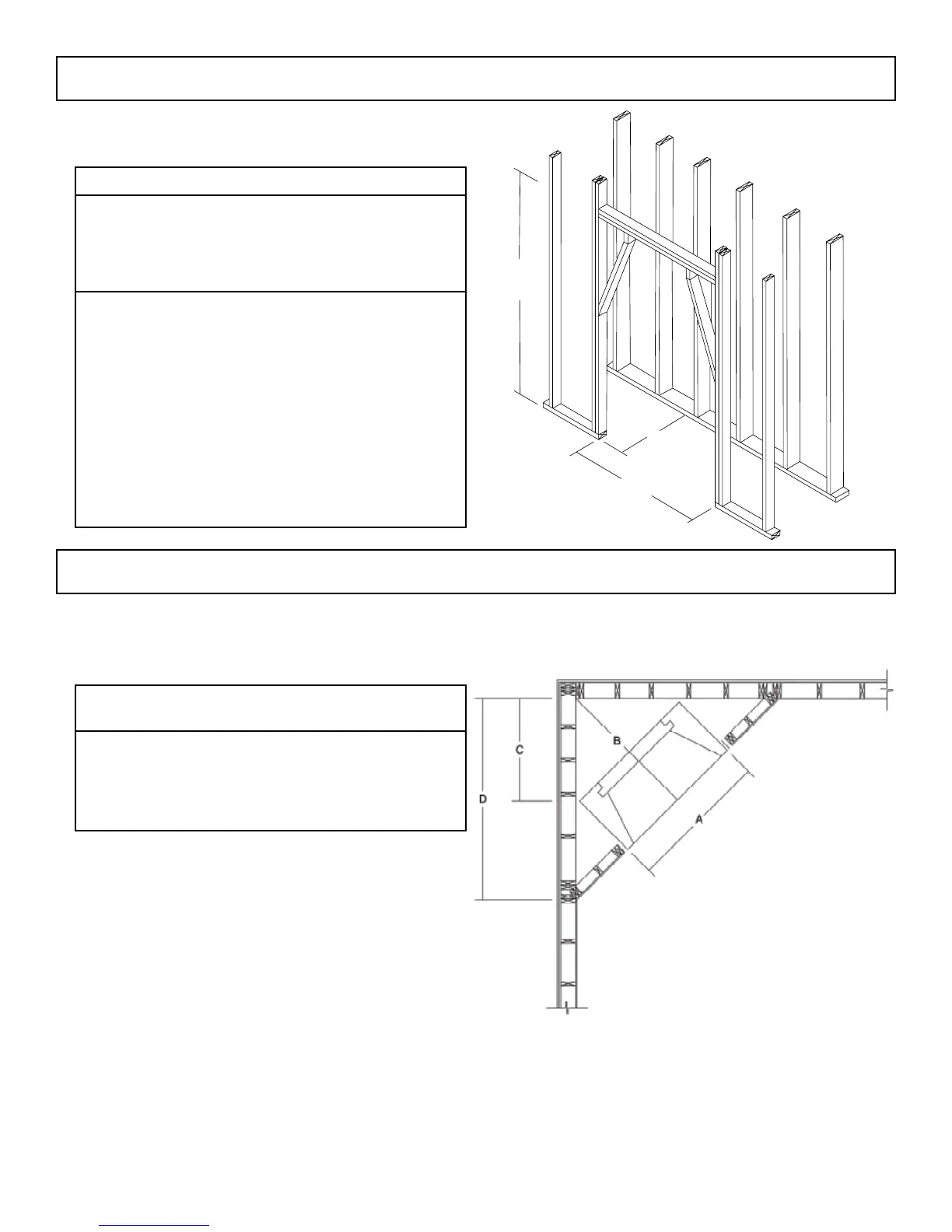

IBV Rough Framing Dimensions
Rough Framing Dimensions
Model A B C
IBV 36 43” 72”,83”,93” 26 3/4”
IBV 46 53” 72”,83”,93” 26 3/4”
Notes:
1. “Raised hearth” requires additional rough opening
height at “B” equal to the height of the raised hearth
detail.
2. Rough framing dimension for depth “C” allows for
one and one-half inch (1-1/2”) clearance at the back of
the IBV.
3. Keep all insulation and vapor barriers three inches
(3”) away from all IBV surfaces.
4.Openingheightof83”requiresminimum9’ue93”
heightrequiresminimum12’ue.
IBV Corner Location Layout
The following chart of plan dimensions is intended to aid
in the positioning of an IBV in a corner condition.
Model A B C D
IBV 36 43” 49” 32” 70”
IBV 46 53” 59” 39” 77”
B
Framed
Opening
A
Framed
Opening
C
