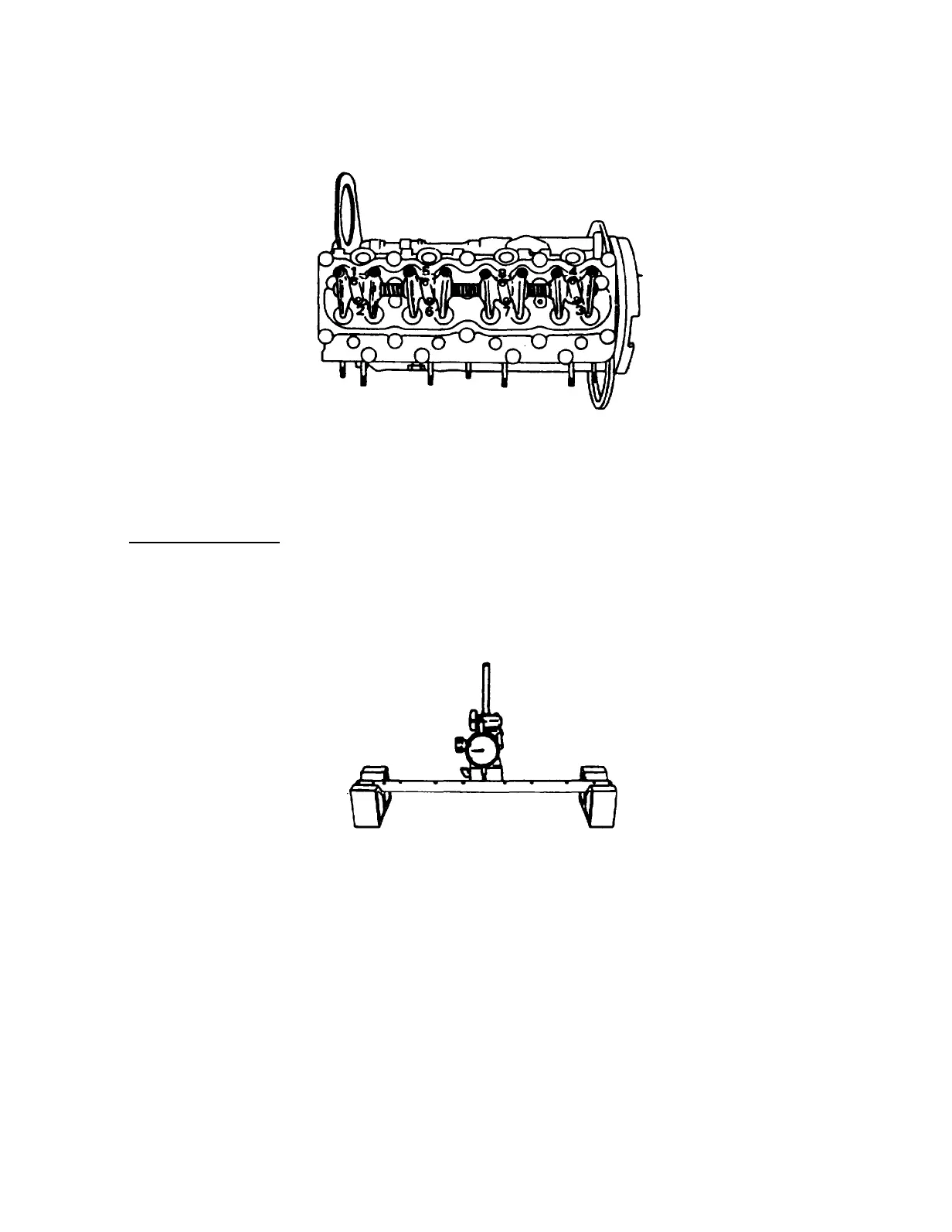

FIGURE 3-53. Rocker Arm Retaining Plate Bolt Loosening Sequence
c.
Remove nut (19) and adjusting screw (20) from each rocker arm.
d. Remove dust cap (11) from each end of shaft (18).
3-26.3. Inspect and Measure.
a.
Check rocker arm shaft (18, FIGURE 3-52) run-out as follows:
(1)
Place rocker arm shaft on V-blocks, refer to FIGURE 3-54.
FIGURE 3-54. Rocker Arm Shaft Runout
3-104
