Install engine front cover access plate, refer to paragraph 3-25.3 step h.
j.
Connect/assemble engine speed control system to fuel injection pump. Refer to end item maintenance manu-
al.
k.
Position oil feed tube to side of pump and secure with two new preformed packings (4, FlGURE 3-8) and fluid
passage bolt (3). Tighten bolt to 132 in-lbs (14.9 Nm).
l.
Remove caps and position fuel tube from fuel filter on top front of fuel injection pump and secure with two
new seals (2) and fluid passage bolt (1). Tighten bolt to 132 in-lbs (14.9 Nm)
m.
Remove caps and connect fuel tubes to top and bottom of fuel feed pump (10, FIGURE 3-7).
n.
Remove caps and connect fuel tubes to delivery valve ports on fuel injection pump, refer to paragraph 3-10.7,
step c.

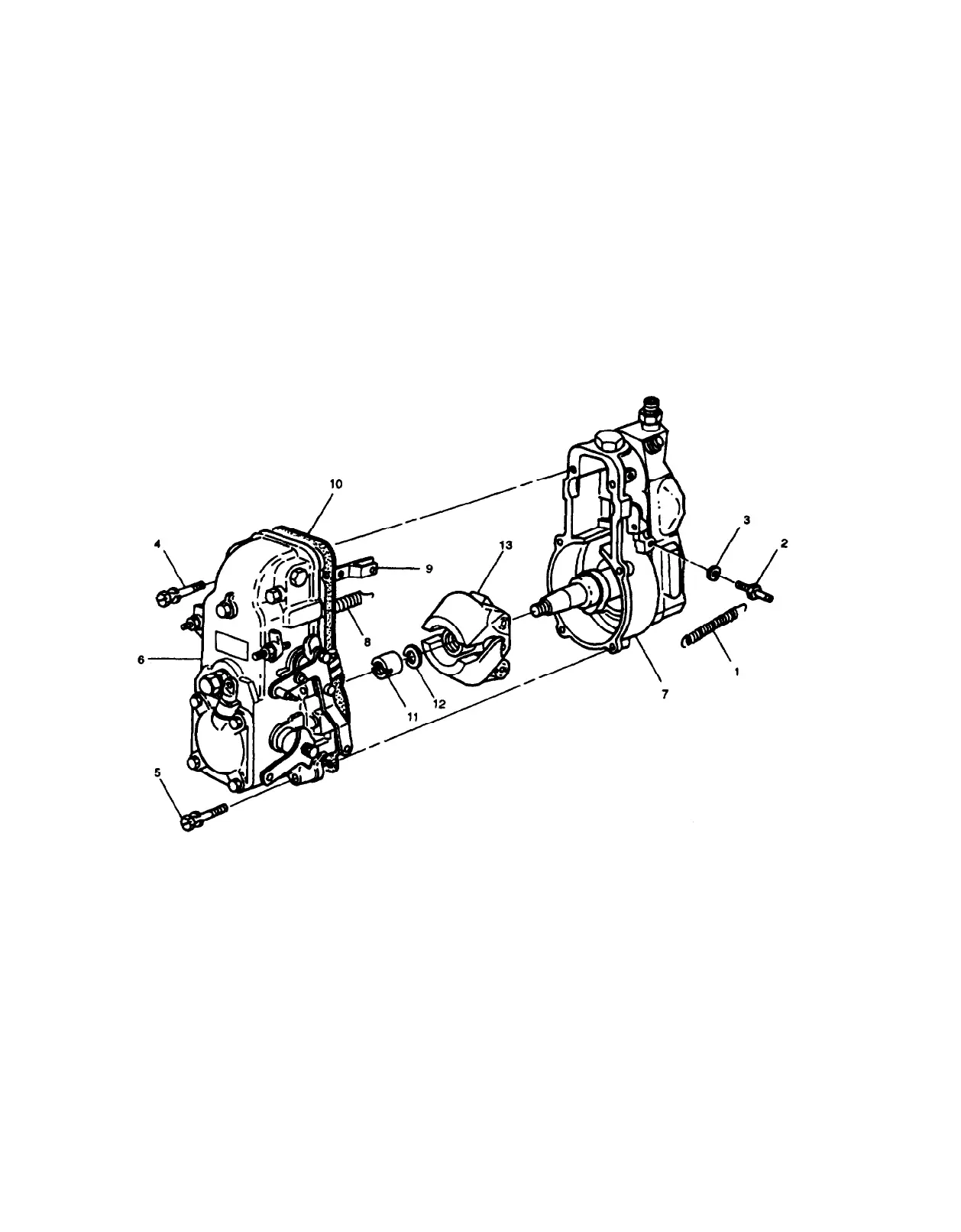

FIGURE 3-37. Removal of Mechanical Governor
3-64
