Do not allow valves (10 and 11, FIGURE 3-60) to fall from bottom of cylinder head.
b.
Use spring compressor to compress springs (8 and 9) and remove spring lock (5).
c.
Release spring compressor and remove seat assembly (6), sealing ring (7). and springs (8 and 9) from valve
stem.
d.
Repeat steps b and c for remaining seven valves.
NOTE
If valves are to be reused, tag them with cylinder number from which
they were removed. If they are to be replaced, valve guides must also
be replaced.
e.
Remove eight valves (10 and 11).
f.
Remove eight valve seals (12) from valve guides (16).
g.
Remove hot plugs (13) as follows:
(1)
Refer to FIGURE 3-62 and insert a 0.12 to 0.20 in. (3.0 to 5.0 mm) diameter brass bar into fuel injector
fifing until it makes contact with hot plug (13, FIGURE 3-60).
(2) Lightly tap bar with a hammer to drive hot plug free.

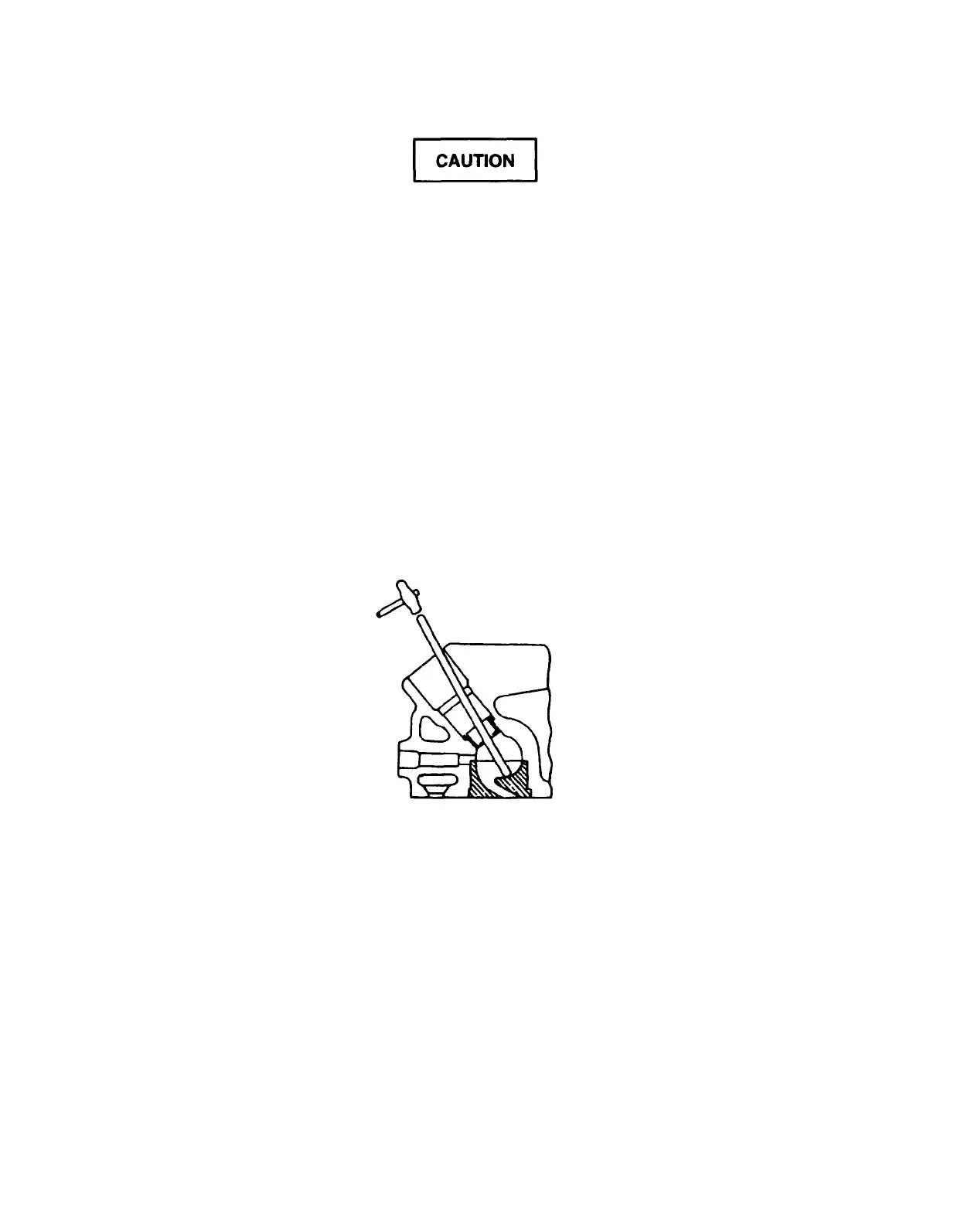

FIGURE 3-62. Hot Plug Removal
