Function and Features

 Resistor Mode

Pin 23 and Pin 13 ( GND wire) can be connected to a resistor for setting the

output voltage value of the power supply.

To set the 0~5V/0~10V or 0~5KΩ/0~10KΩexternal analog setting range, open

the MENU ( Menu) → CONFIG ( Configure) → Ext-Ctrl ( External Analog

Control).

Press the Right Key to select Voltage( or Resistance).

Press the Right Key to select 5V/10V or 5KΩ/10KΩ within the full scale scope.

Voltage monitoring

This function enables monitoring of voltage output via Pin 24 or the GND pin

( i.e., Pin 13), which can be connected to a digital voltmeter ( DVM). To use this

function, the output control should be under the external analog control mode.

The output voltage monitoring range ( which reflects the power supply output

voltage from zero to full scale) can be selected from 0-10V or 0-5V. To switch on

the monitoring range setting, open the MENU ( Menu) → CONFIG ( Configure)

→ Monitor ( External monitor mode). Press the Right Key to select Voltage( or

Resistance).

Press the Right Key to select the output voltage monitoring range ( 0~10V or

0~5V).

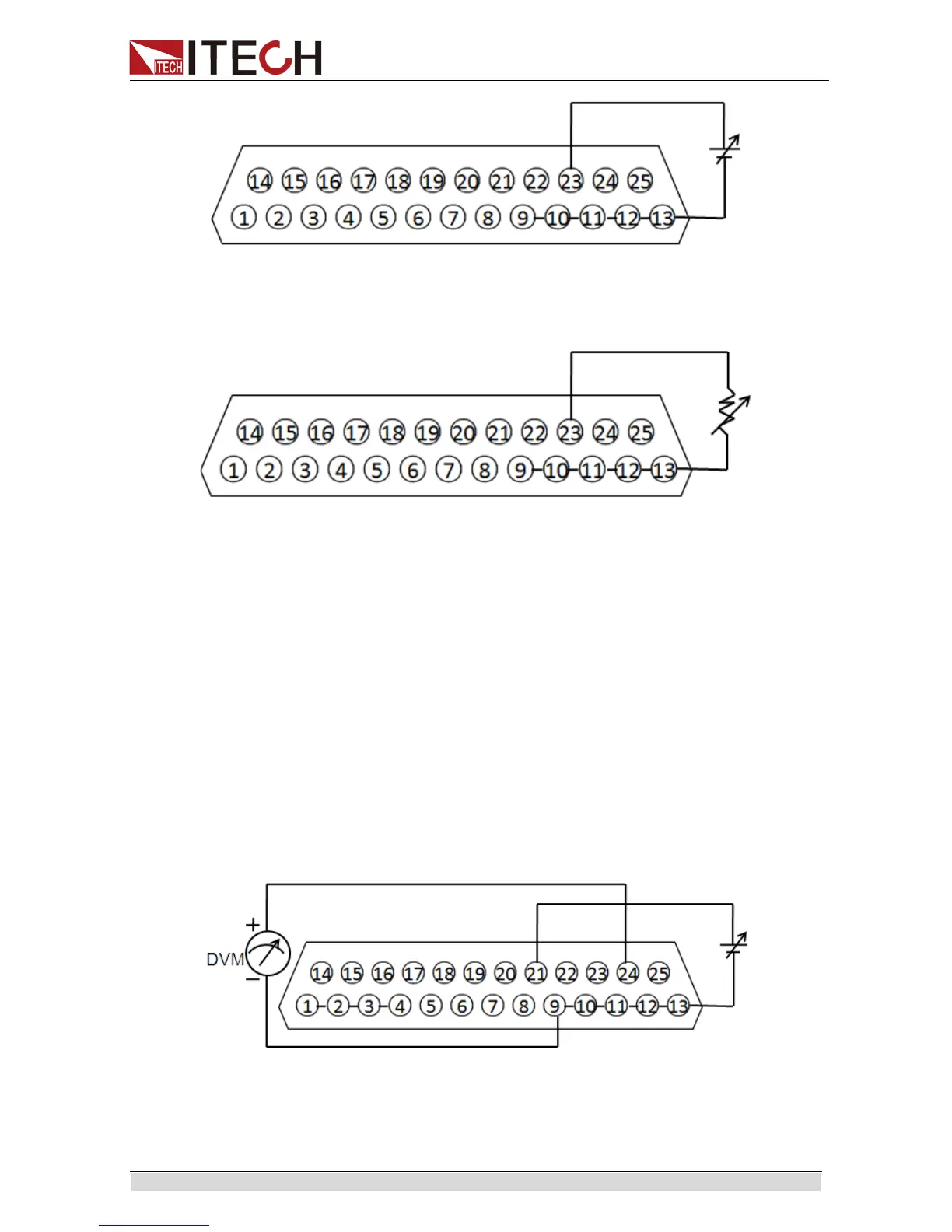

The connection setting of digital voltmeter is shown below.

Current monitoring

This function enables monitoring of current output via Pin 25 or the GND pin

( i.e., Pin 13), which can be connected to a digital voltmeter ( DVM). To use this
