10 Connecting the USB Client and Power Cable
Connecting the USB Client and Power Cable
Prerequisite : AC/DC Adapter Assembled
Note: Do not connect AC power to the AC Adapter yet.

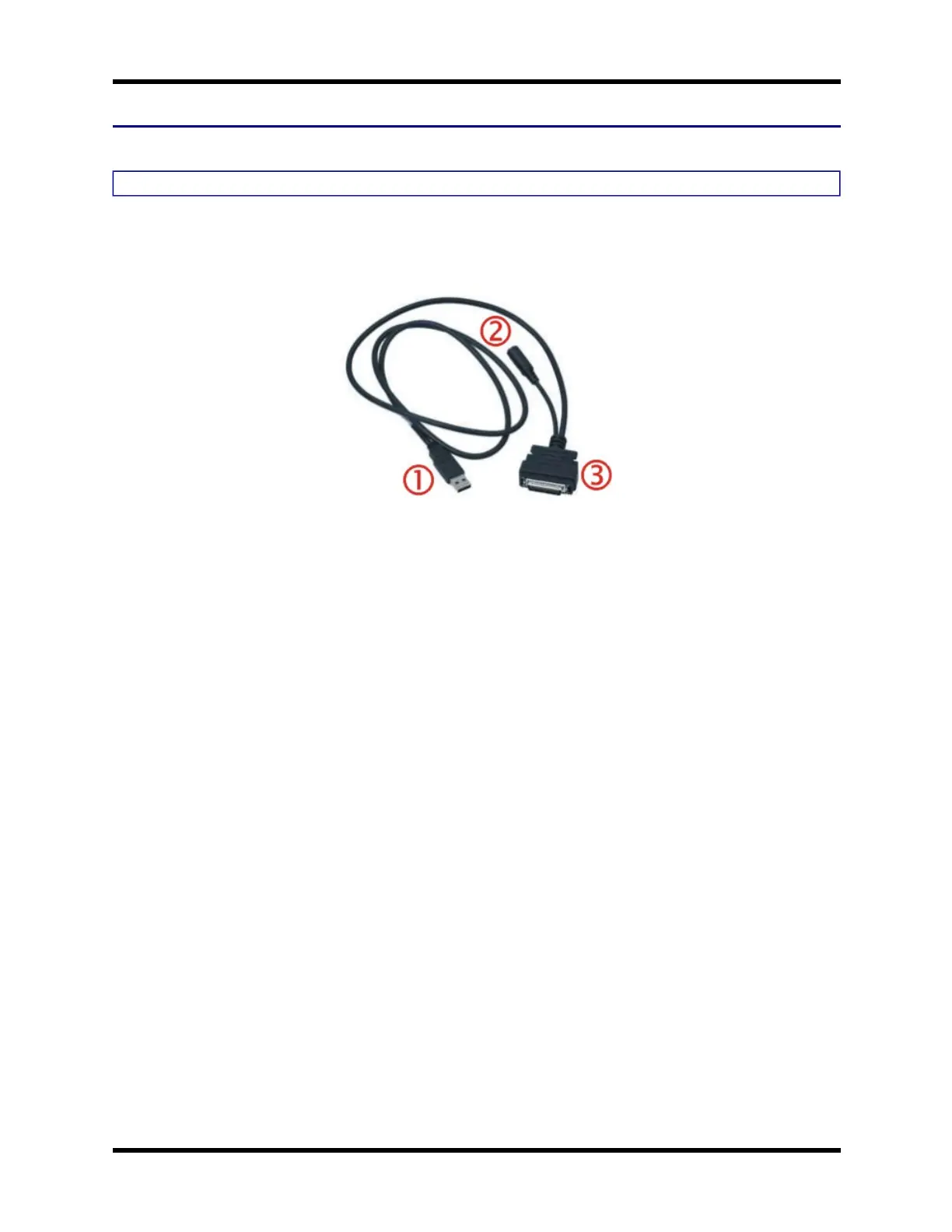

Client Cable Assembly
1. Holding the cable I/O connector (3), pinch the catch release buttons in until the catches are open. Con-
nect the cable to the FC300 I/O port by matching the shape of the I/O connector on the cable with the
shape of the I/O connector at the base of the FC300. Release the catch release buttons.
2. Insert the AC adapter single pin cable (2) .
3. Connect the AC Adapter to a power source (wall outlet).
4. Insert the USB client plug (1) into the target USB Client port.
The FC300 and the USB client are connected.
WH-FC300USER-001 FC300 User Guide
For Review - Do Not Distribute - LXE Confidential
