Attaching the Handstrap
1. Place the FC300 with the screen facing down, on a flat stable surface.

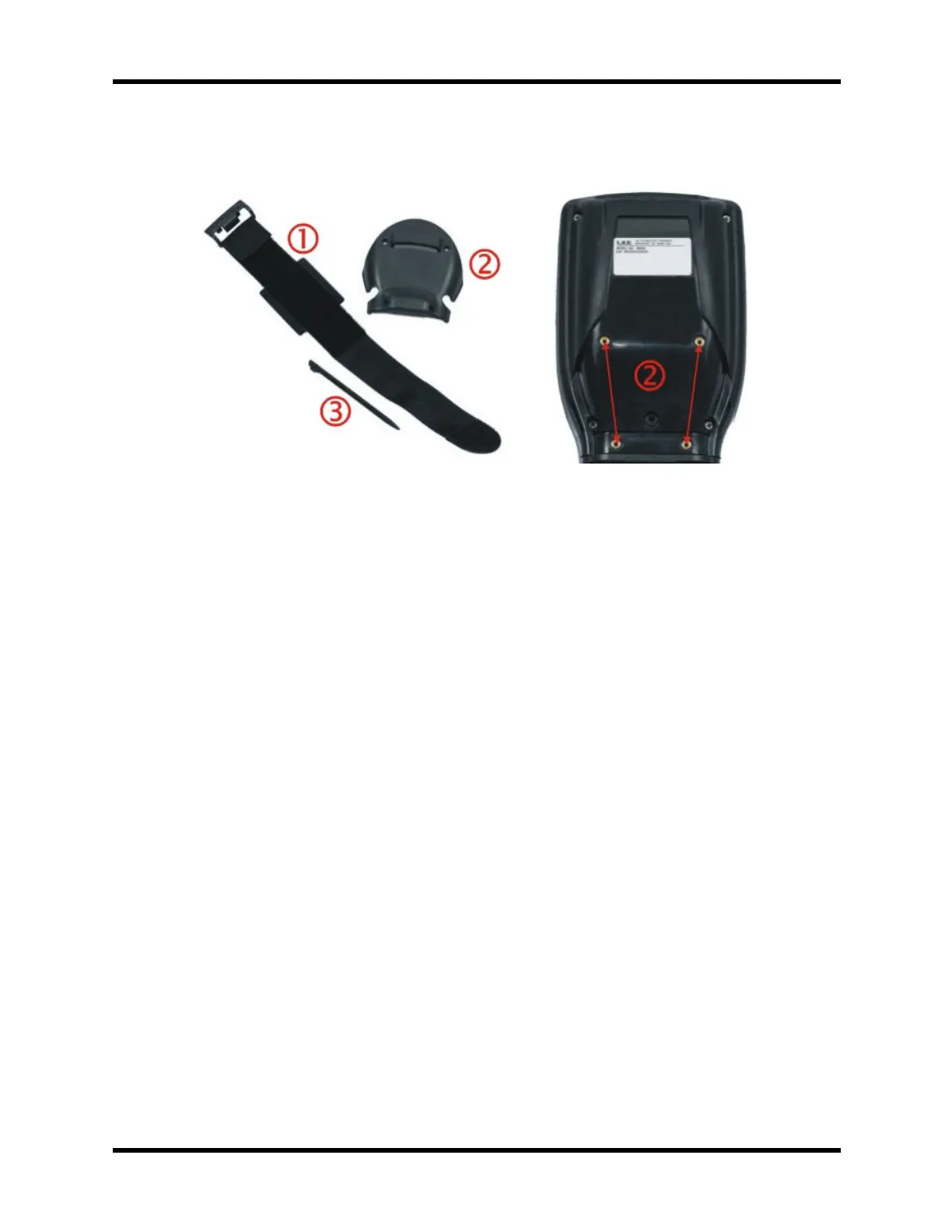

2. Place the handstrap base (2) in the grooved area, matching the screw holes in the handstrap base with
the screw holes in the body of the FC300.
3. Insert the screws (supplied) into each of the four holes and fasten the base securely.
4. Slide the handstrap bottom clip pins into the slots at the base of the FC300 and pull the strap towards
the top of the FC300 until the top clip slips into the groove.
5. Making sure the closed loop fastener surface on the handstrap are facing up, slide the strap through the
latch in the top clip.
6. Fold the end of the strap over so that the closed loop fastener surfaces mate evenly and the handstrap
is secured to the FC300.
7. Test the strap's connection making sure the FC300 is securely connected to each end of the strap con-
nectors.
Check the closed loop fastener and handstrap base connection frequently. If loose, they must be tightened or
replaced before the FC300 is placed into service again.
