4.5.1. Terminal numbering
A connection diagram is displayed on the inside surface of the terminal cover showing typical main supply
connections for the meter configuration and type.
Terminal numbers corresponding to the connection diagram are moulded into the meter case, either above or
below the terminal block depending on the meter connection type.

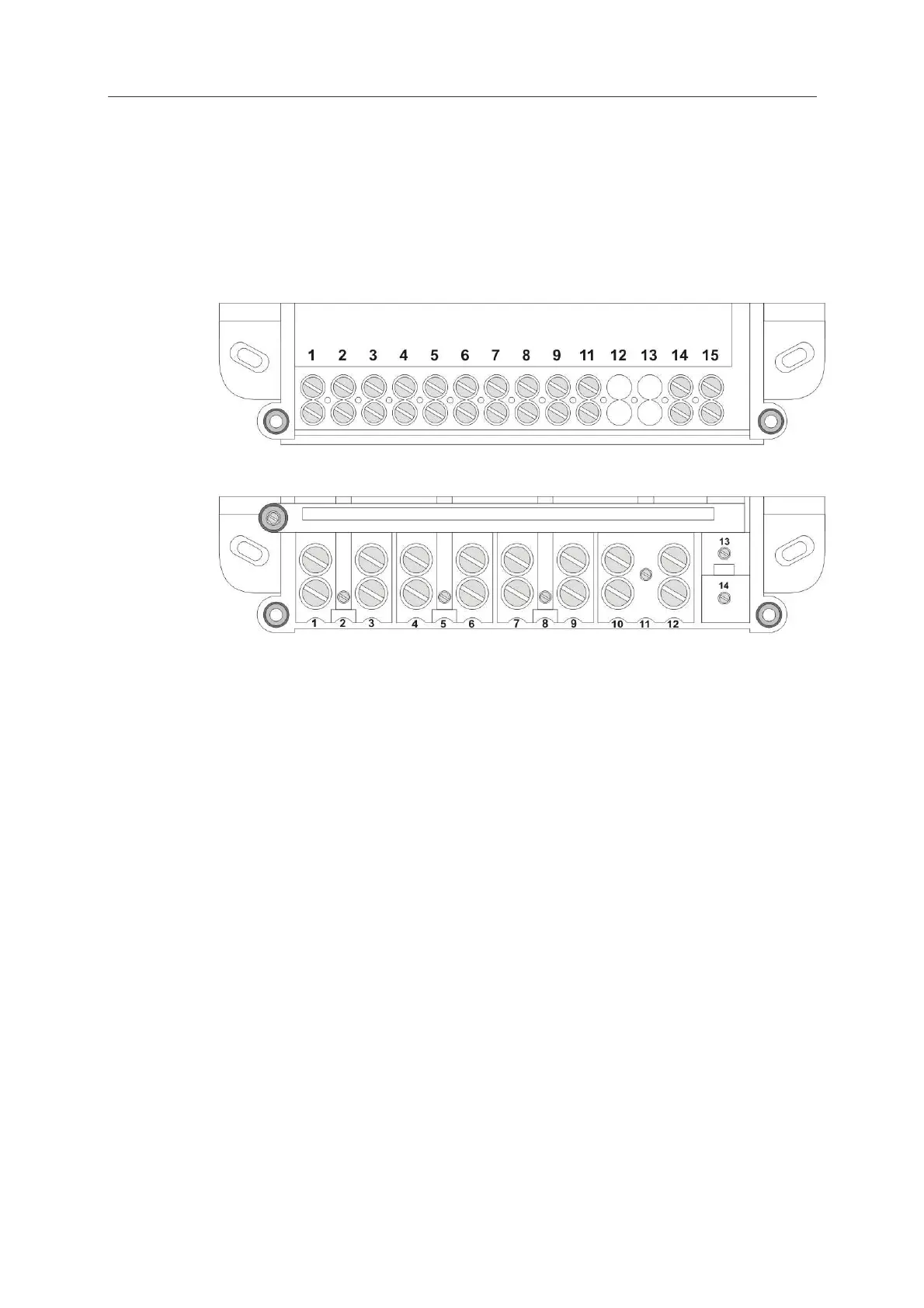

Transformer connection terminal block
Direct connection terminal block
