6.9. Metered quantities
6.9.1. Four quadrant metering

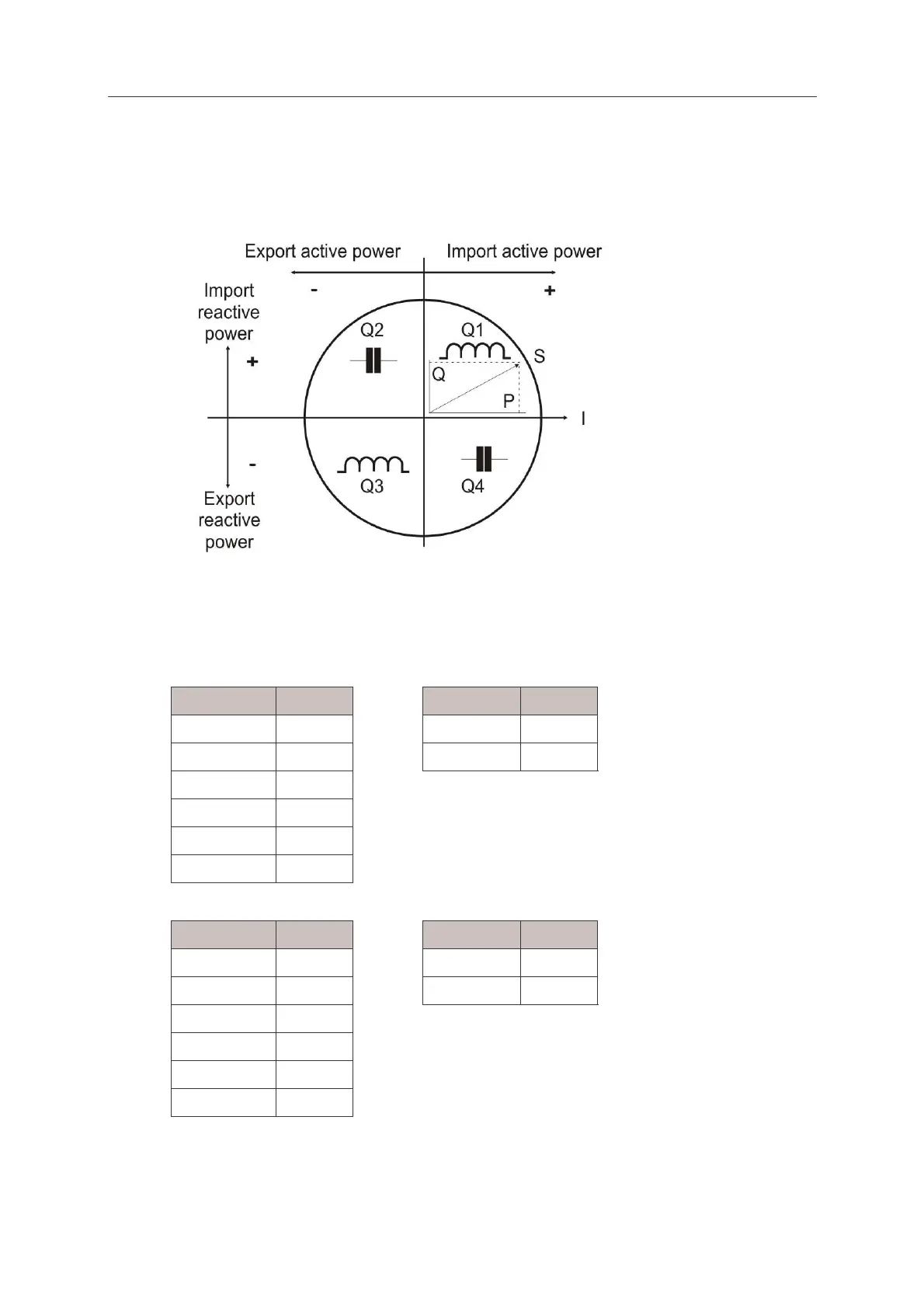

The meter measures various energy values or quantities, in all four quadrants of the AC waveform.
6.9.1.1. Measured energy quantities
The following measured energy quantities are updated every second and recorded in a series of total energy
registers (TER):
Active Energy - 8 Quantities
Per phase Direction Aggregate Direction
kWh ph 1+ Import kWh agg+ Import
kWh ph 1- Export kWh agg - Export
kWh ph 2+ Import
kWh ph 2- Export
kWh ph 3+ Import
kWh ph 3- Export
Reactive Energy - 24 Quantities
Per phase Direction Aggregate Direction
kvarh ph 1+ Import kvarh agg+ Import
kvarh ph 1- Export kvarh agg - Export
kvarh ph 2+ Import
kvarh ph 2- Export
kvarh ph 3+ Import
kvarh ph 3- Export
