The main components of the SL7000 meter are assembled onto three printed circuit boards (PCBs):
• metrology voltage divider circuitry and the switched-mode power supply
• microcontroller and memory devices and I/O circuitry
• LCD display

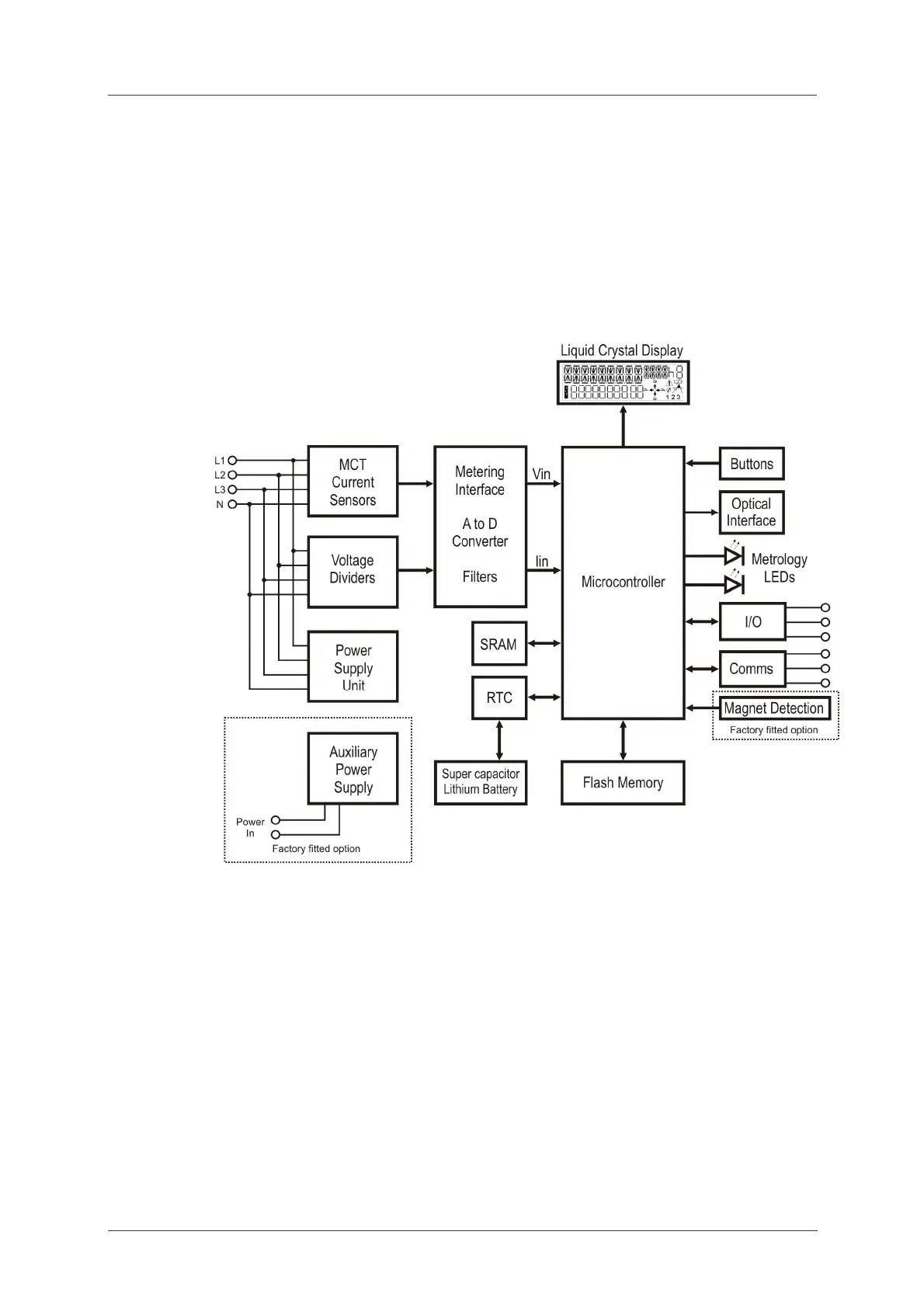

The block diagram below shows the main functional elements of the meter.
