SL7000 User Guide

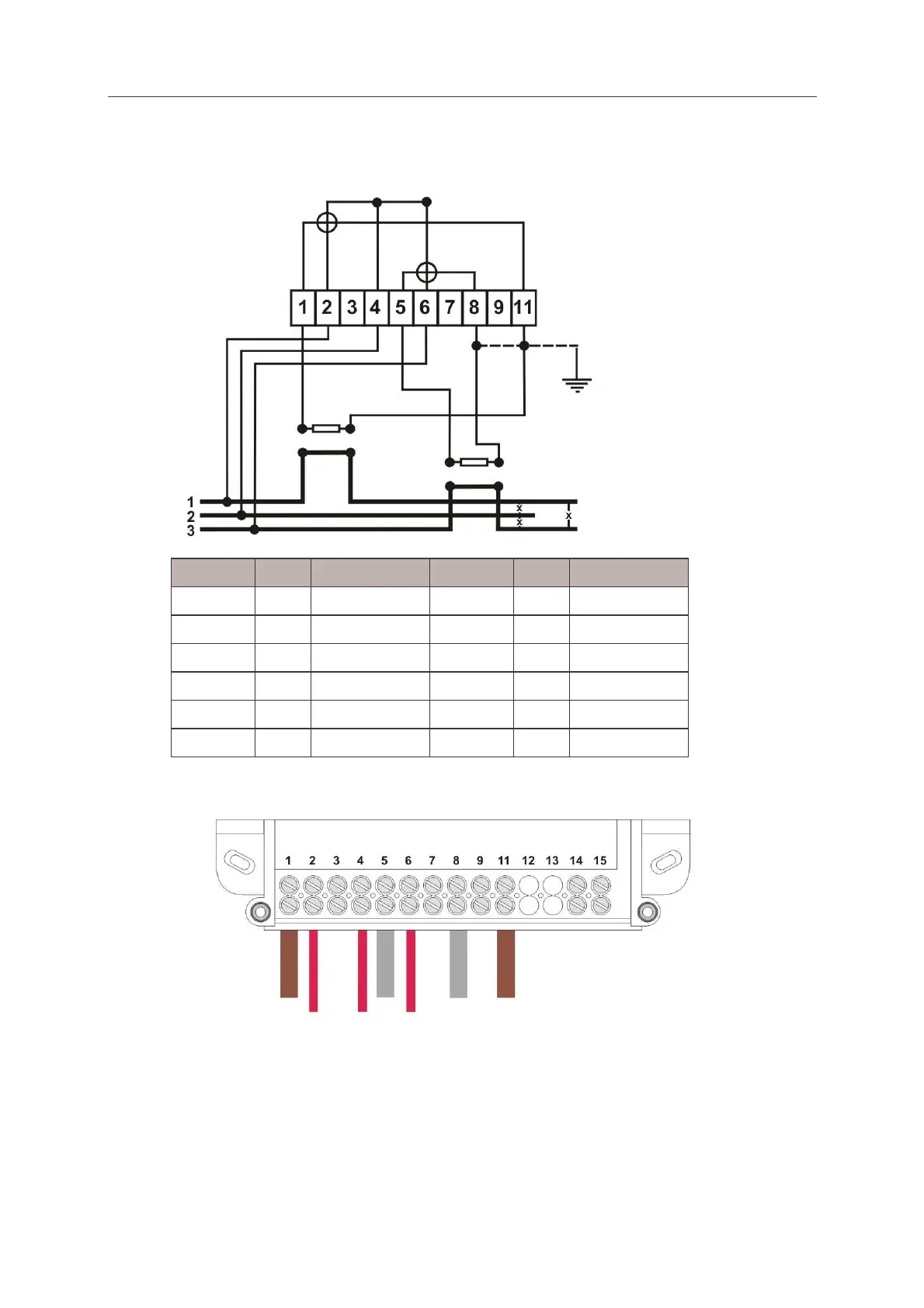

3 wire symmetrical (USE) current transformer configuration
Terminal Phase Function Terminal Phase Function
1 1 I1 - CT1 in 7
No connection
2 1 U1 - Voltage 8 3 I3 - CT2 out
3
No connection 9
No connection
4 2 U2 - Voltage 11 1 I1 - CT1 out
5 3 I3- CT2 in
6 3 U3 - Voltage
Typical wiring illustrated below:
