ITT Goulds Pumps XHD User Manual

388A
354A
184
388A
354A
100D
Figure 86: Gland half casing disassembly
6.2.22 Locate and lift the volute liner for optional discharge locations (field
replacement) - Rubber-Lined
1.

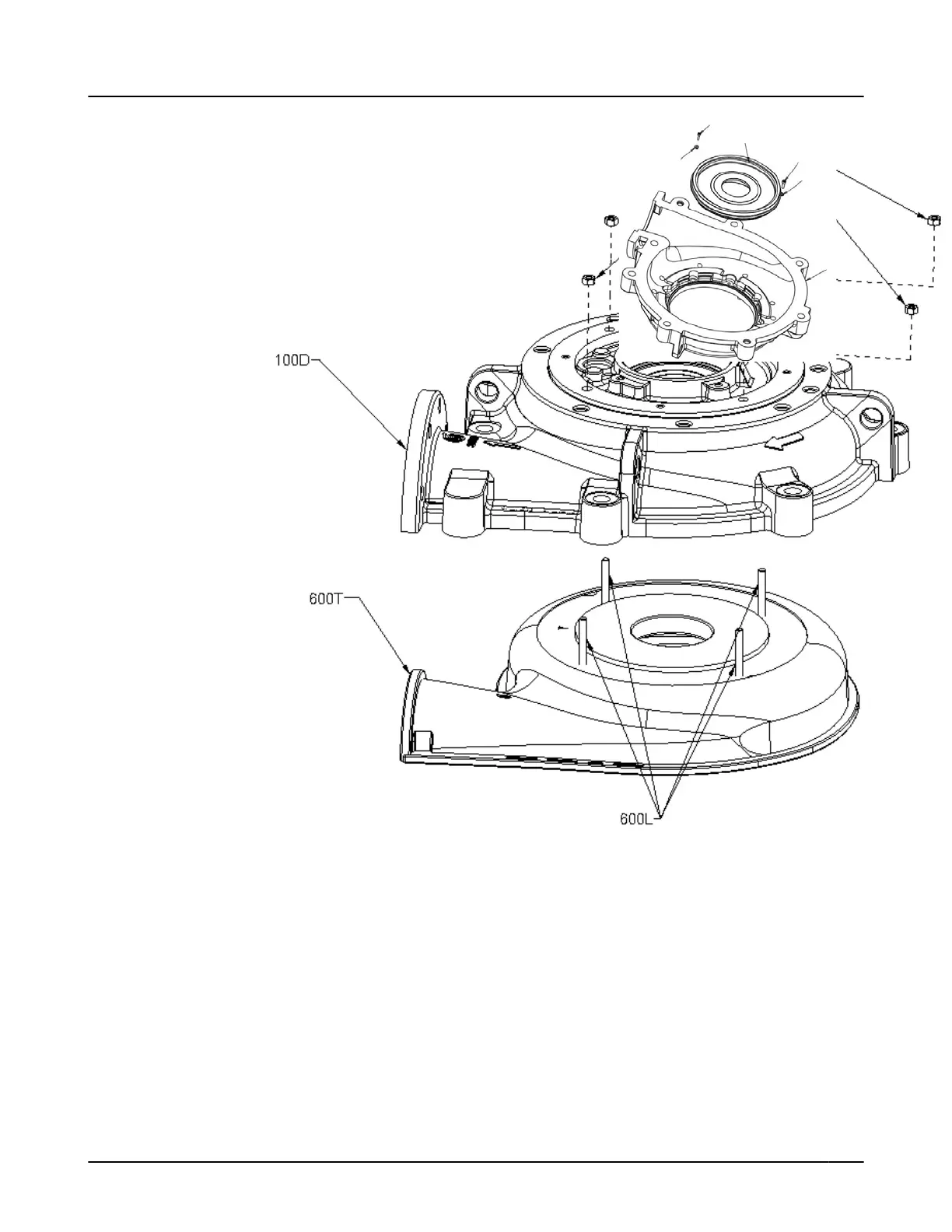

The Volute Liner (600T) can be installed into the Gland Casing (100D) the field in any of the option-
al discharge orientations.
2. Remove the Suction casing and Suction Liner assembly as described in the section 'Remove the
Suction Side.
6.2 Disassembly
XHD Installation, Operation, and Maintenance Manual 103
