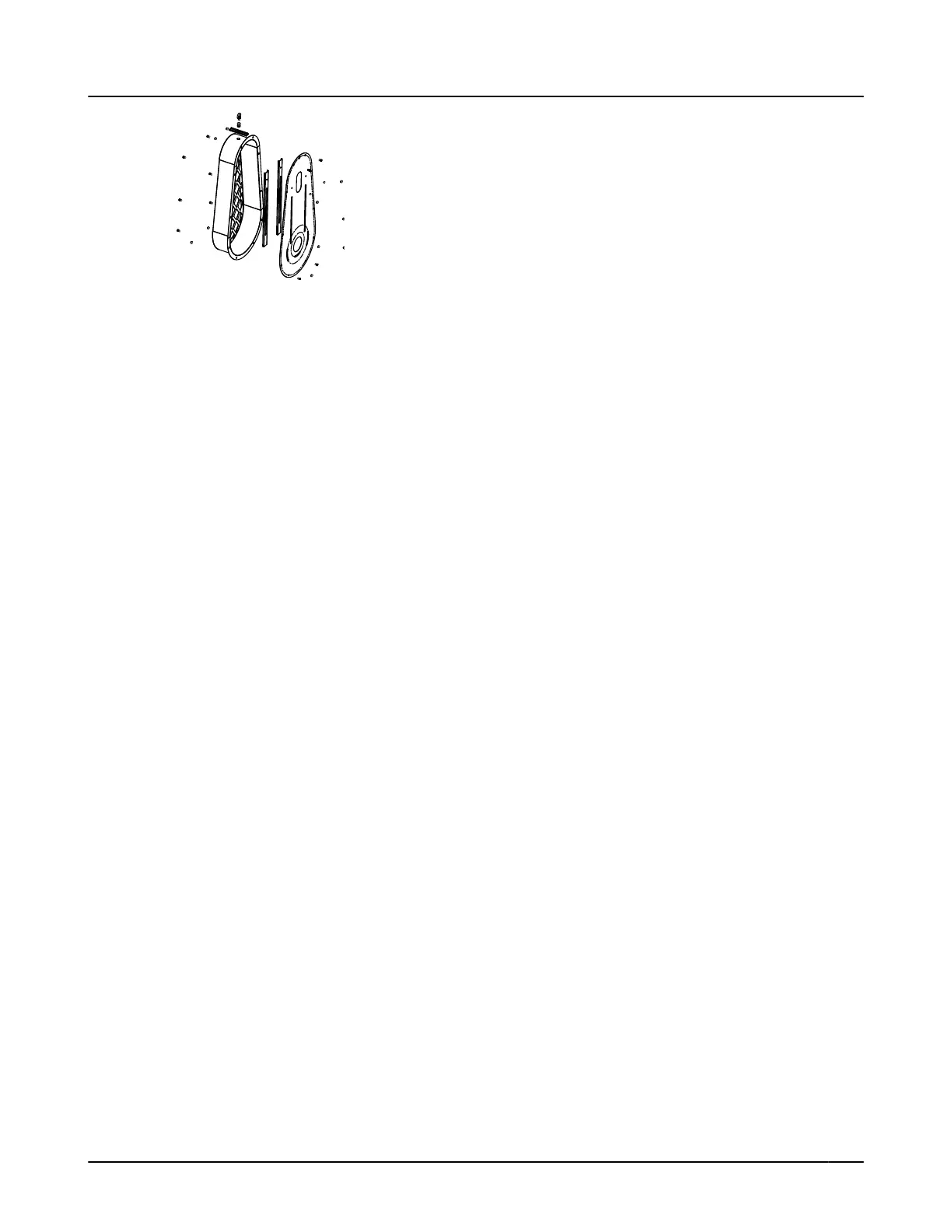

Figure 26: Belt guard removal
5.3 Remove the coupling guard
1.
Remove the nut, bolt, and washers from the slotted hole in the center of the coupling guard.
2. Slide the driver half of the coupling guard toward the pump.
3. Remove the nut, bolt, and washers from the driver half of the coupling guard.
4. Remove the driver half of the coupling guard:
a) Slightly spread the bottom apart.
b) Lift upwards.
5. Remove the remaining nut, bolt, and washers from the pump half of the coupling guard.
It is not necessary to remove the end plate from the pump side of the bearing housing. You can
access the bearing-housing tap bolts without removing this end plate if maintenance of internal
pump parts is necessary.
6. Remove the pump half of the coupling guard:
a) Slightly spread the bottom apart.
b) Lift upwards.
5.3 Remove the coupling guard
XHD Installation, Operation, and Maintenance Manual 45
