Installing the pneumatic hose

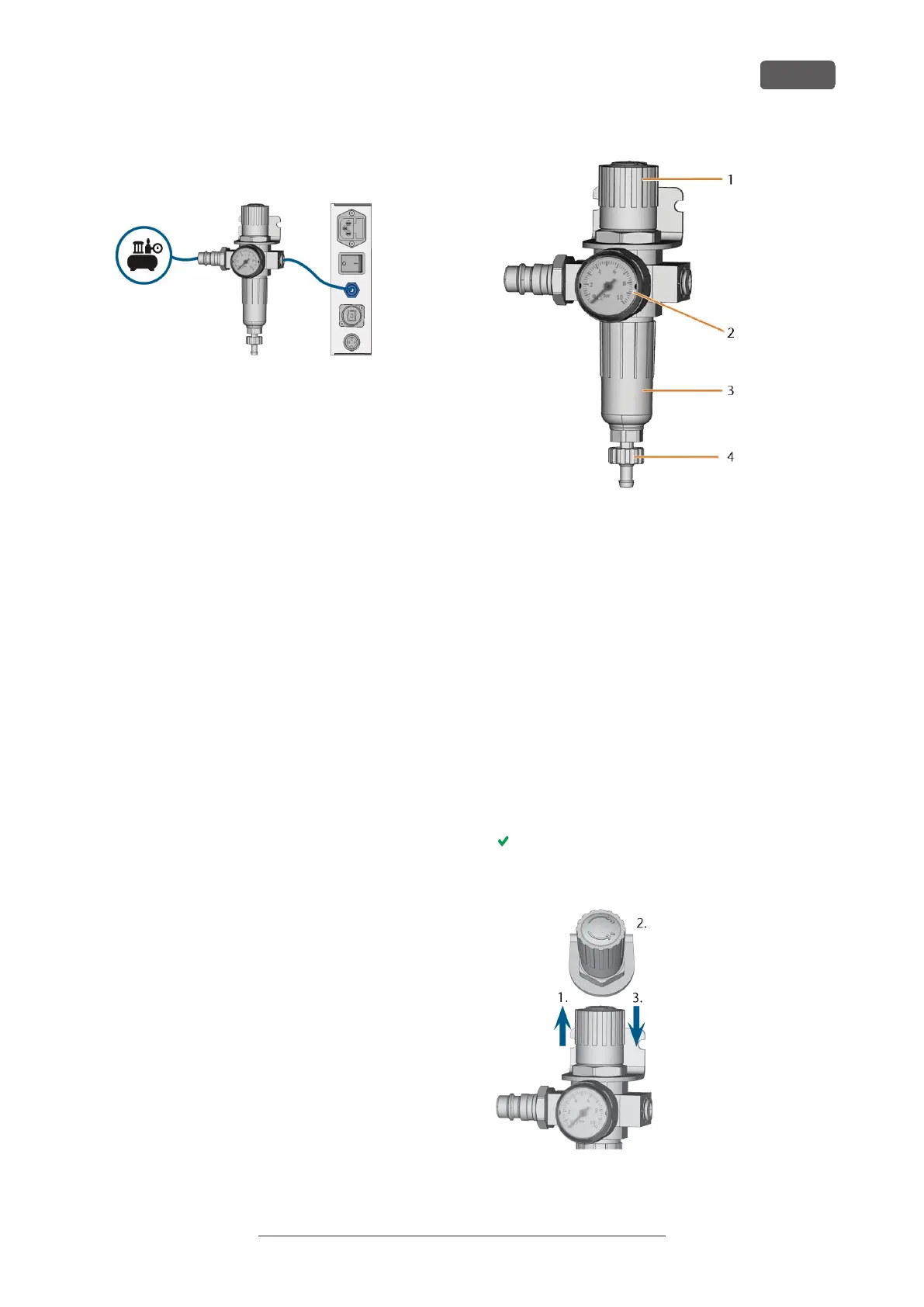

FIG. 12 – INSTALLING THE PNEUMATIC HOSE
1. Connect the main external compressed air sup-
ply.
2. Use the provided pneumatic hose to connect the
right
pneumatic connection of the compressed air
regulator to the pneumatic connection of the
machine.
3. Connect the external compressed air supply to
the
left
pneumatic connection of the compressed
air regulator.
4. Thoroughly verify that all external pneumatic
hoses are properly seated in their corresponding
connections and that the hoses and connectors
are undamaged.
5. If all hoses and connectors are properly installed
and undamaged, open the external compressed
air supply valve.
Adjusting the air pressure with the com-
pressed air regulator
Setting the air pressure is only necessary if the air pres-
sure shown by the pressure gauge does not lie
between the minimum and maximum air pressure. You
can find specific values and additional requirements in
the chapter on technical data.
FIG. 13 – COMPRESSED AIR REGULATOR: REGULATING AND
MONITORING THE AIR PRESSURE
1. Rotary knob for pressure regulation
2. Pressure gauge for monitoring the outgoing
air pressure
3. Bowl of the water separator
4. Discharge screw
1. Pull the rotary knob on top of the compressed air
regulator slightly upwards.
2. Turn the rotary knob in the desired direction:
n Turn it towards "+" to increase the pressure
n Turn it towards "–" to reduce the pressure
3. Push the rotary knob down again.
The knob is locked and cannot be changed inad-
vertently.
FIG. 14 – SETTING THE AIR PRESSURE
PrograMill Dry – Installing the machine
EN 19
