Installing the air extraction system
Ivoclar Vivadent recommends the use of the PrograMill
Suction Unit.
Requirements for the suction unit
You can find specific values and additional require-
ments in the chapter on technical data.  Technical
data – on page13
Use a suction device with the following properties
only:
n Designed for the commercial use in the dental
sector, such as PrograMill Suction Unit
n Equipped with a filter of the filter class M
n Equipped with safety devices which protect you
from static discharges (e. g. through an anti-static
suction hose)
n Minimum extraction capacity: 2,500 l/min
(88.3 cfm)
Installing the suction unit
You can install the suction unit as follows:
1. Read the documentation for the suction unit. Fol-
low the operating and safety instructions at any
time.
2. Check if the connection of the suction hose has
an outer diameter of 45mm. If the diameter is dif-
ferent, either adjust the hose or use the adapter
delivered with the machine.
3. Insert the suction hose of the suction unit into the
opening for the air extraction of the machine.
Ensure that the suction hose is properly seated.

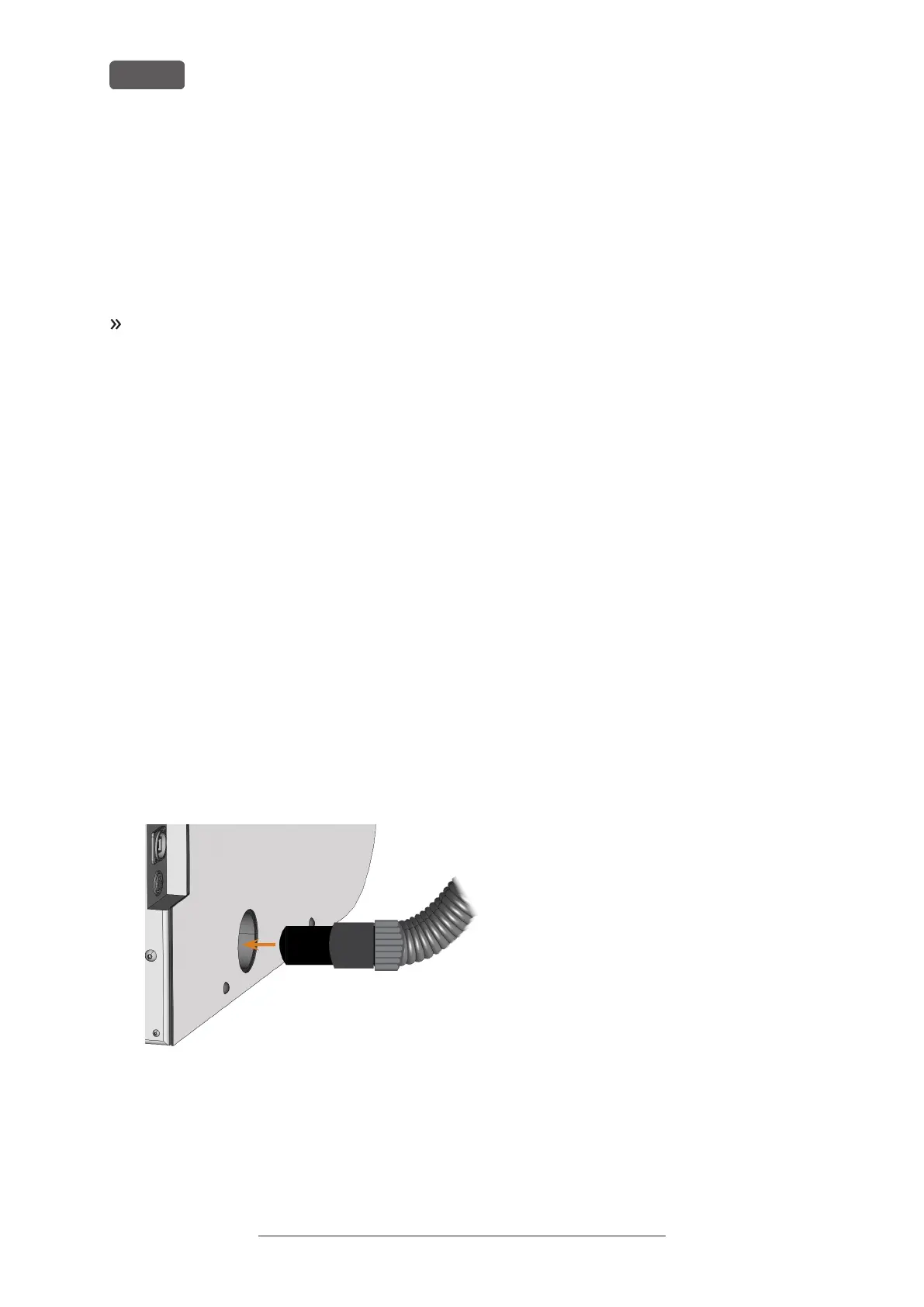

FIG. 15 – INSERTING THE SUCTION HOSE INTO THE
MACHINE
4. If you want the machine to automatically switch
the suction unit on and off:
Connect the data cable provided by the manu-
facturer of the suction to the suction control
connection of the machine. The operating
instructions of the suction unit contains further
details.
5. Continue with the installation of the suction unit as
described in the documentation of the unit.
Operating Instructions:PrograMill Dry
Version: 11/19/2020
PrograMill Dry – Installing the machine
EN 20
