HDBaseT Receiver

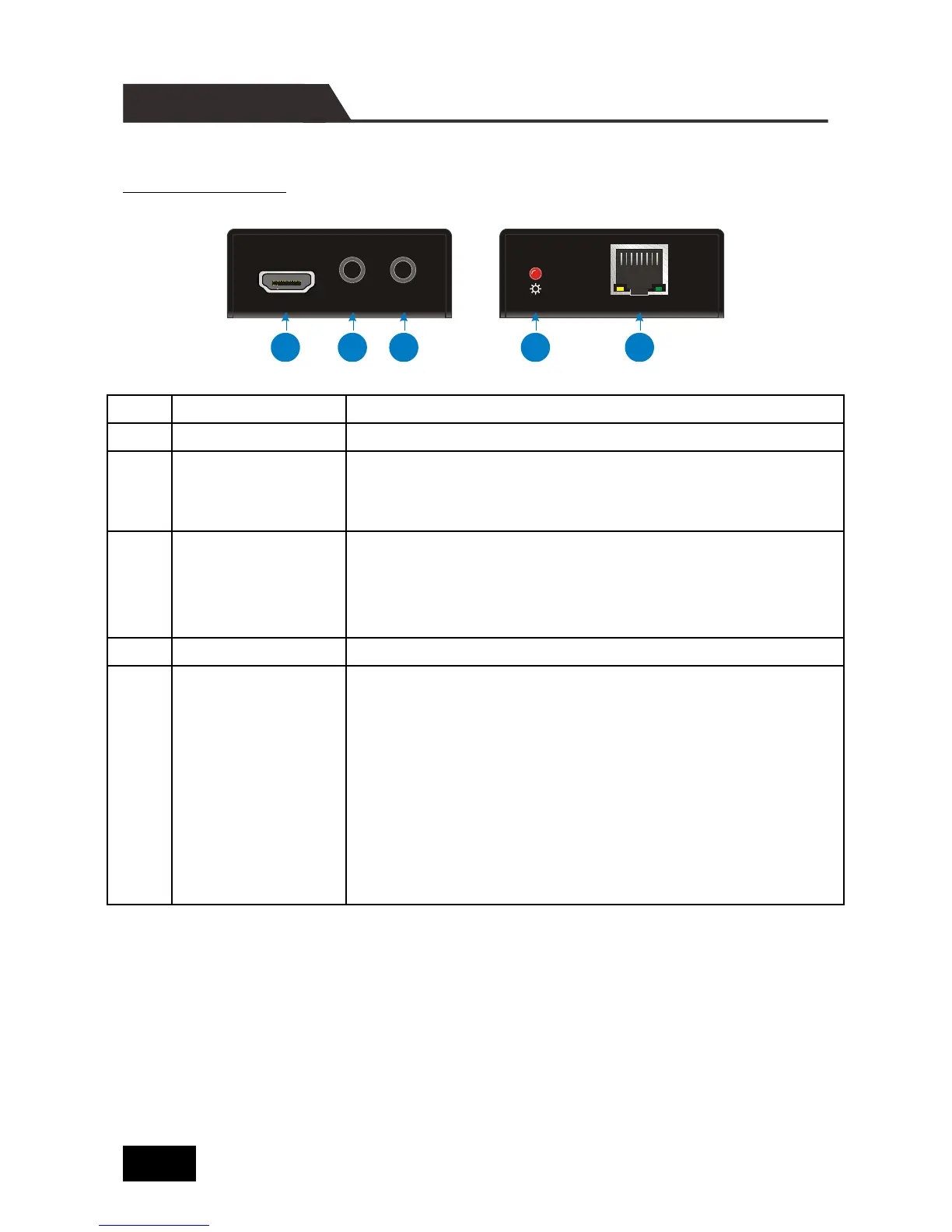

Front & Rear Panel
Plug in the IR receiver, this will receive the IR signals
from the RCU and send through to the Matrix Switcher
and then control the desired source.
Plug in the IR emitter and attached to the fornt of the
display, this will send the IR signals form the Matrix
Switcher to control the display which is connected to
the HDMI OUT port.
RED when DC power present (PoC).
The RJ45 socket has two LED status indicators. Plug in
the Pre-installed CAT cable in to the HDBT RJ45
socket.
HDCP: HDCP compliant indicator
OFF: No HDMI traffic (no picture); GREEN: Signals with
HDCP; Blinking GREEN: Signal without HDCP.
LINK: HDBT Link status indicator
OFF: No Link; YELLOW: Link Successful; Blinking
YELLOW: Link Error.
IR IN IR OUTHDMI OUT
TP IN
LINK HDCP
1
2
3
4
5
