Maintenance Manual for J2 Sedan
Electronic Control System
of Engine
187
4. Diagnosis
ECU real-time monitoring of the sensor and circuit


Sensor open circuit;


Internal short-circui
t of
sensor;


Sensor unit short-circuit to ground


Sensor unit short-circuit to system reference voltage signal wire.
5. Trouble Solution


Check sensor circuit for normal function and incorrect connection of grounding


Connect the sensor and harness to check whether the connections of power supply, grounding wire,
and signal wire are normal.
6.
Removal
and installation
1
）
Removal
①

Disconnect the
harness
connector of

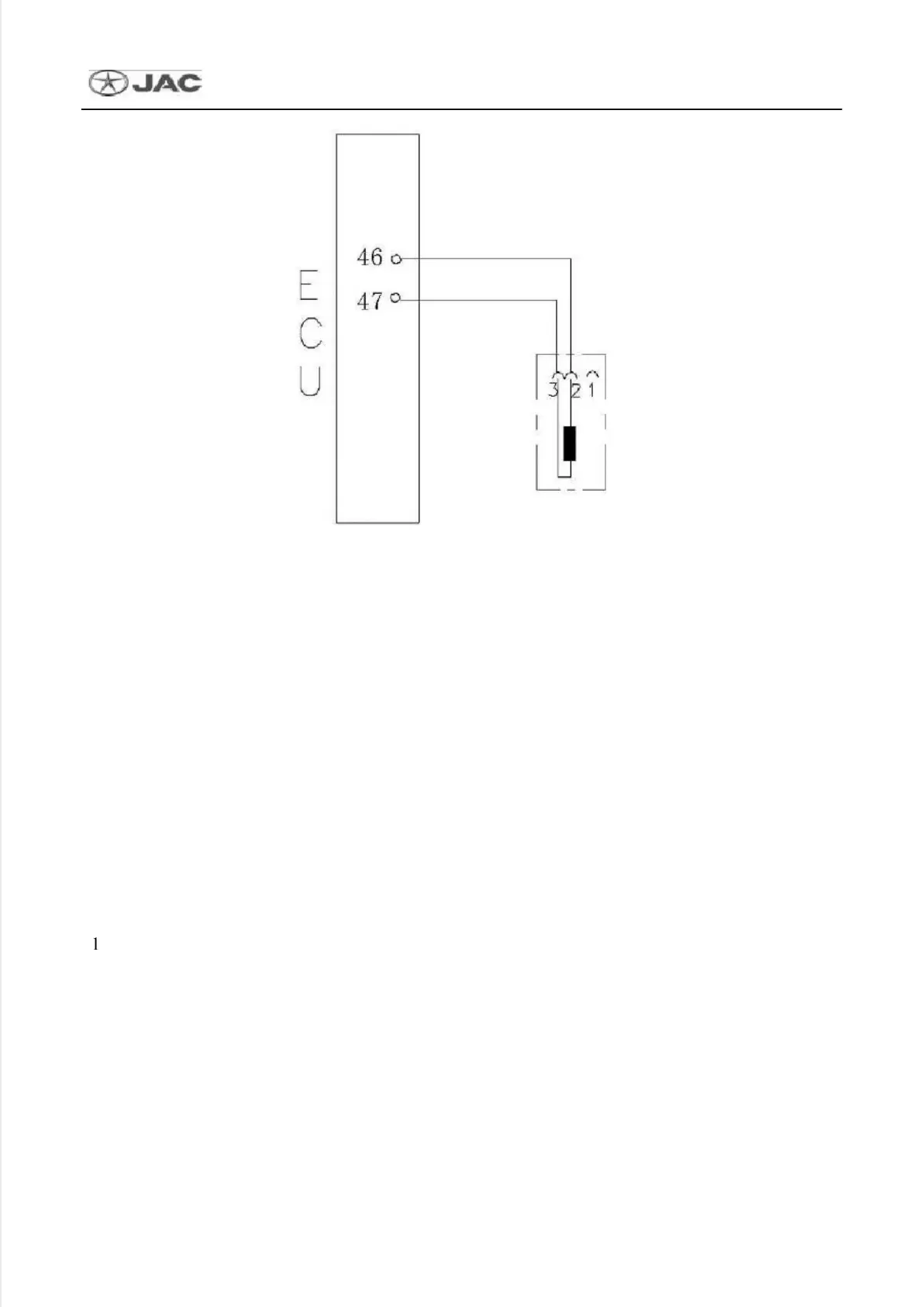

crankshaft position sensor
.
Speed sensor

