JAC J2 User Manual



Maintenance Manual for J2 Sedan
Mechanical Part of Engine
122
VI.
Fuel Pump
Assembly

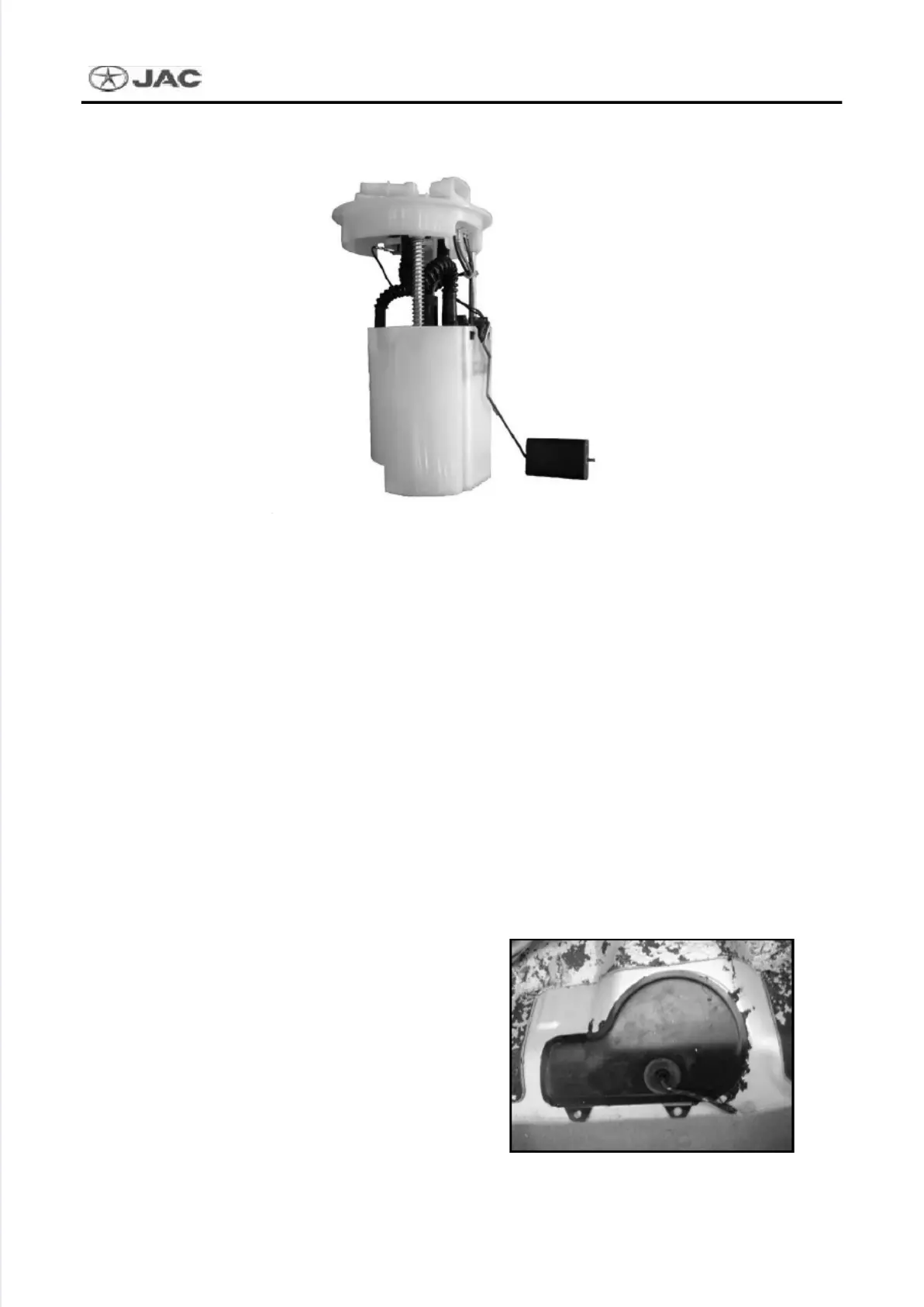

Figure of fuel
pump assembly
1. Dismantlement
Caution:
■
Do read
the “General
Precautions” be
fore dealing
with fuel sy
stem. See “General
Precautions”.
1)
Check fuel level
indicated on
fuel meter
. If the
meter indicates
“full” or “to
be full”, discharge
the
fuel from tank until the meter indicates that the fuel level is lower than position “E”.
Attention:
If fuel level exceeds mounting surface of fuel level sensor, the fuel may overflow during the
dismantlement of
fuel level sensor.
2)
Open
the
fuel
filler
cap.
3)
Release
the
pressure
in
fuel
tank.
4)
Dismount the
rear
seat
cushion. Please
refer
to
“Rear Seat”.
5)
Dismount
the
service
lid
for
fuel
tank.
■
Directly
prize
it
up
with
flat
end
screwdriver.
Fig. 1.4.012
