JAC J2 User Manual



Maintenance Manual for J2 Sedan
Mechanical Part of Engine
121
1)
Fuel
filter
■
Be
aware
of
correct
installation
direction
of
fuel filter.
towards fuel inlet pipe side
2) Connector
Connect the connector of fuel supply hose according to following methods:
①
 Check
the
connection
for foreign
substance or
damage.
②

Make the
connector align with
the resin pipe
and insert the
connector straightly until “click” is
heard.
③
 Check whether
the
connector is
connected properly
with following methods
after connection.
■
Visually
inspect that
2
raised
positions have
been
connected
to
the
connectors.
■
Stretch
the
resin
pipe
and
its
connector
hard
to verify that they have been firmly
connected.
3.
Check
after
Installation
Check whether there is fuel leakage with following steps.
1) Set ignition switch at “ON” position (when engine stopped), and
then check
the connection of fuel
pipe for lea
kage.
2) Start engine, increase its speed and recheck the connection of
fuel pipe
for leakage.

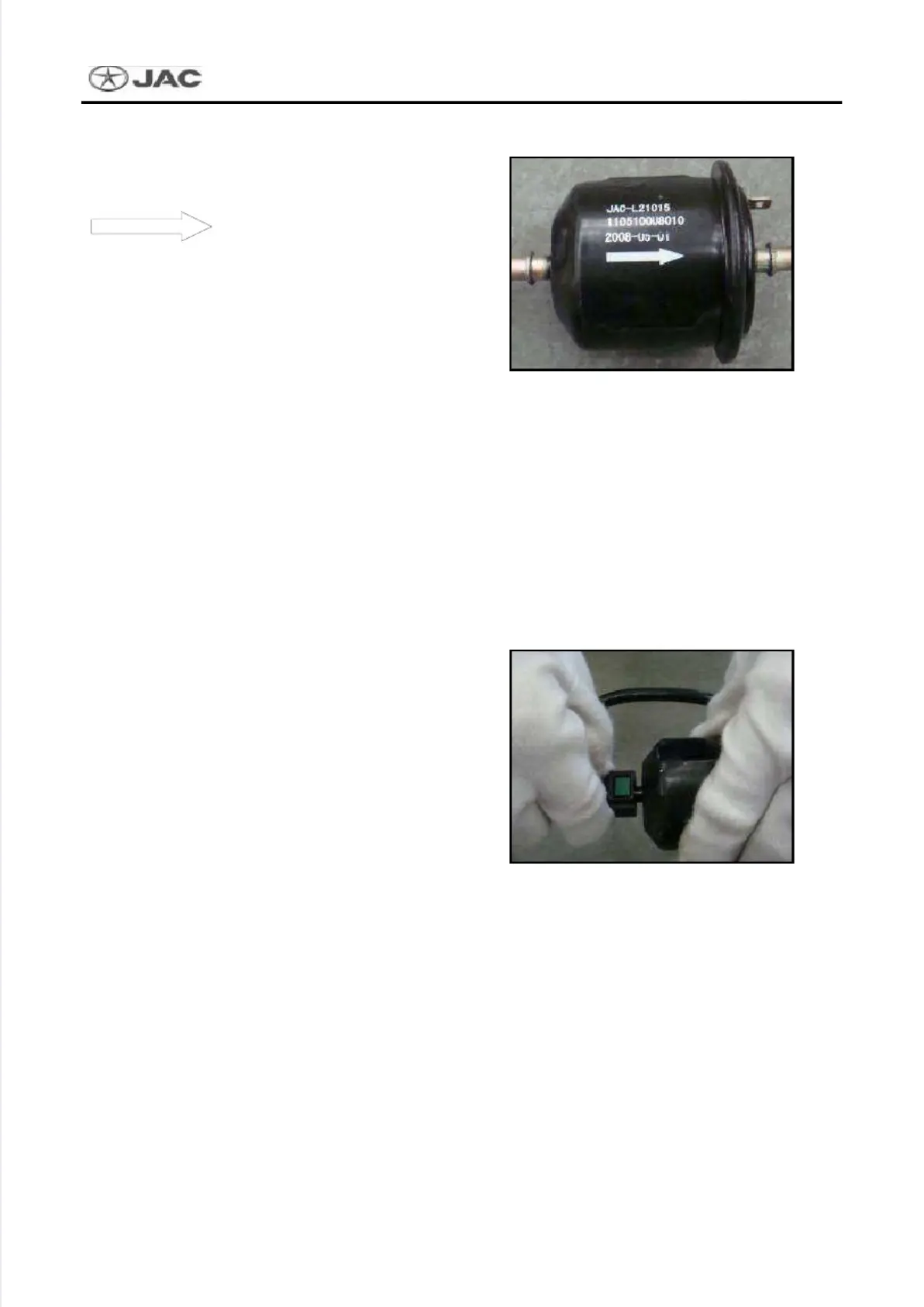

Fig. 1.4.010
Fig. 1.4.011
