JAC J2 User Manual



Maintenance Manual for J2 Sedan
Mechanical Part of Engine
58
X.
Camshaft
and
balance
shaft
assembly

1. Parts


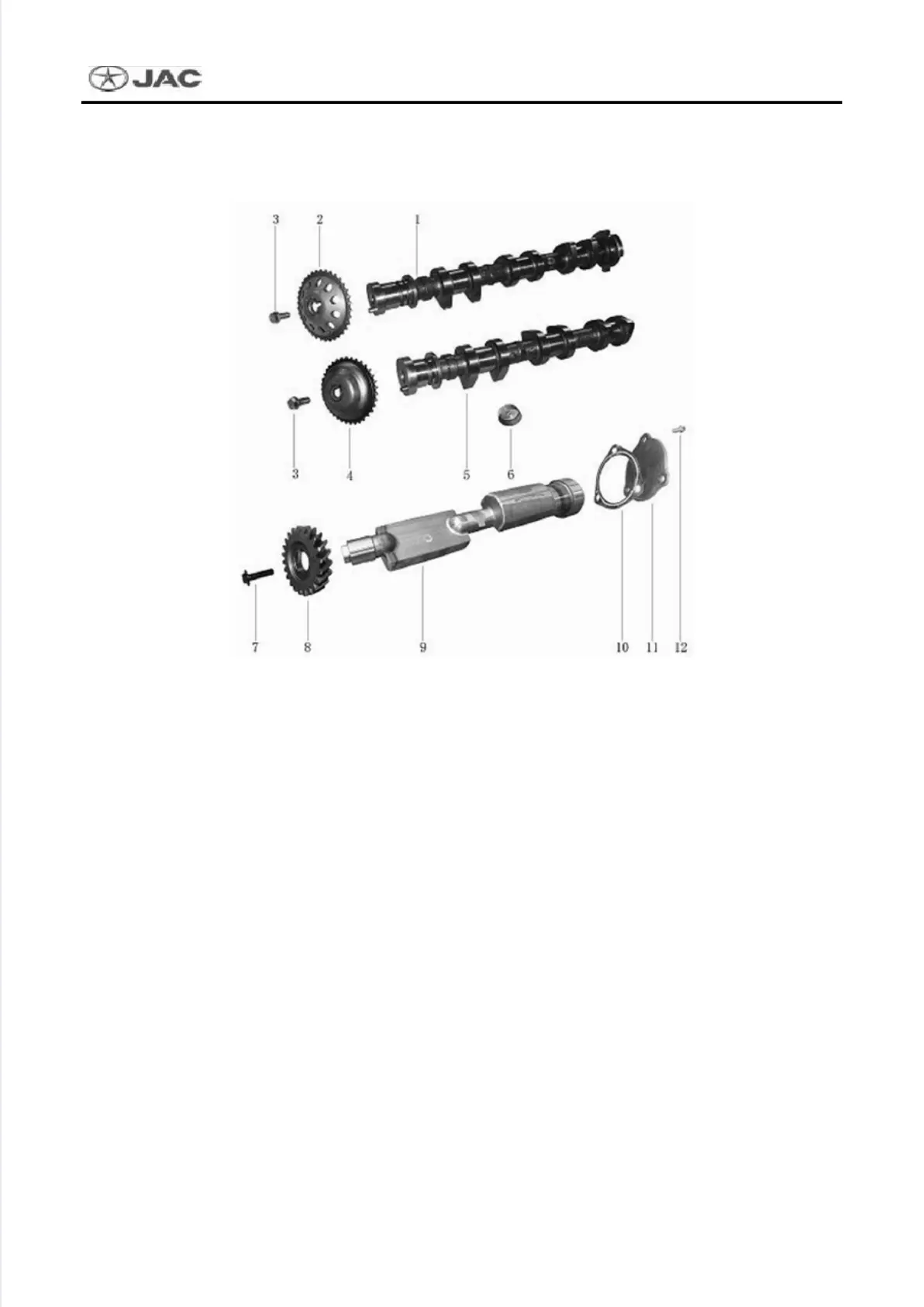

Breakdown diagram for camshaft and balance shaft
1 – Intake
camshaft
subassembly 2
–
Intake
camshaft chain
wheel
3
–
Chain
wheel
bolts
4
–
Exhaust
camshaft
chain
wheel
5
–
Exhaust
camshaft
subassembly
6
–
Mechanical
tappet
7 – Balance shaft
retaining
bolt
8
–
Balance
shaft gear 9
–
Balance shaft
10 –
Balance shaft
rear end
cap gasket
11
– B
alance shaft
rear end
cap
12 – Balance shaft rear end cap bolts
2.
Disassembly
and
installation
1
）

Disassembly of cam
shaft
①

Remove
cylinder cover. See "Intake
Manifold."
②

Remove
high-volt
age
ignition
coil.
See
"Ignition Coil."
③

Disconnect PCV
hose and
air
hose of
respirator.
④

Remove the
cylinder head
cover from
the
cylinder head.
⑤

Remove
camshaft
timing
sprocket. Seethe "timing sprocket body."
⑥

Remove camshaft
position sensor from
rear end
of the
cylinder head.
Tightening torque: 9 - 11 N • m
