JAC J2 User Manual



Maintenance Manual for J2 Sedan
Mechanical Part of Engine
54
Note: It
is
permissible
to
perform
the
dismantlement by means of the friction force of
drive belt before drive
belt is removed.
b)

Dismantle drive belt to check whether the
drive belt has wearing, aging, cracking, etc.;
if any, replace drive belt.
c)

Dismantle oil gauge assembly
■
Tightening
torque:
7-8.2 N·m
d)

Dismantle damping wheel
■
Tightening
torque:
160-170
N·m
e)

Remove the alternator bracket.
f)

Dismantle oil pan and cylinder head cover
Attention
:
Only
when
oil
pan
and
cylinder
head
cover are disassembled can the oil pump
assembly be dismantled.
Remove the cylinder head shield as per the
illustrated sequence.

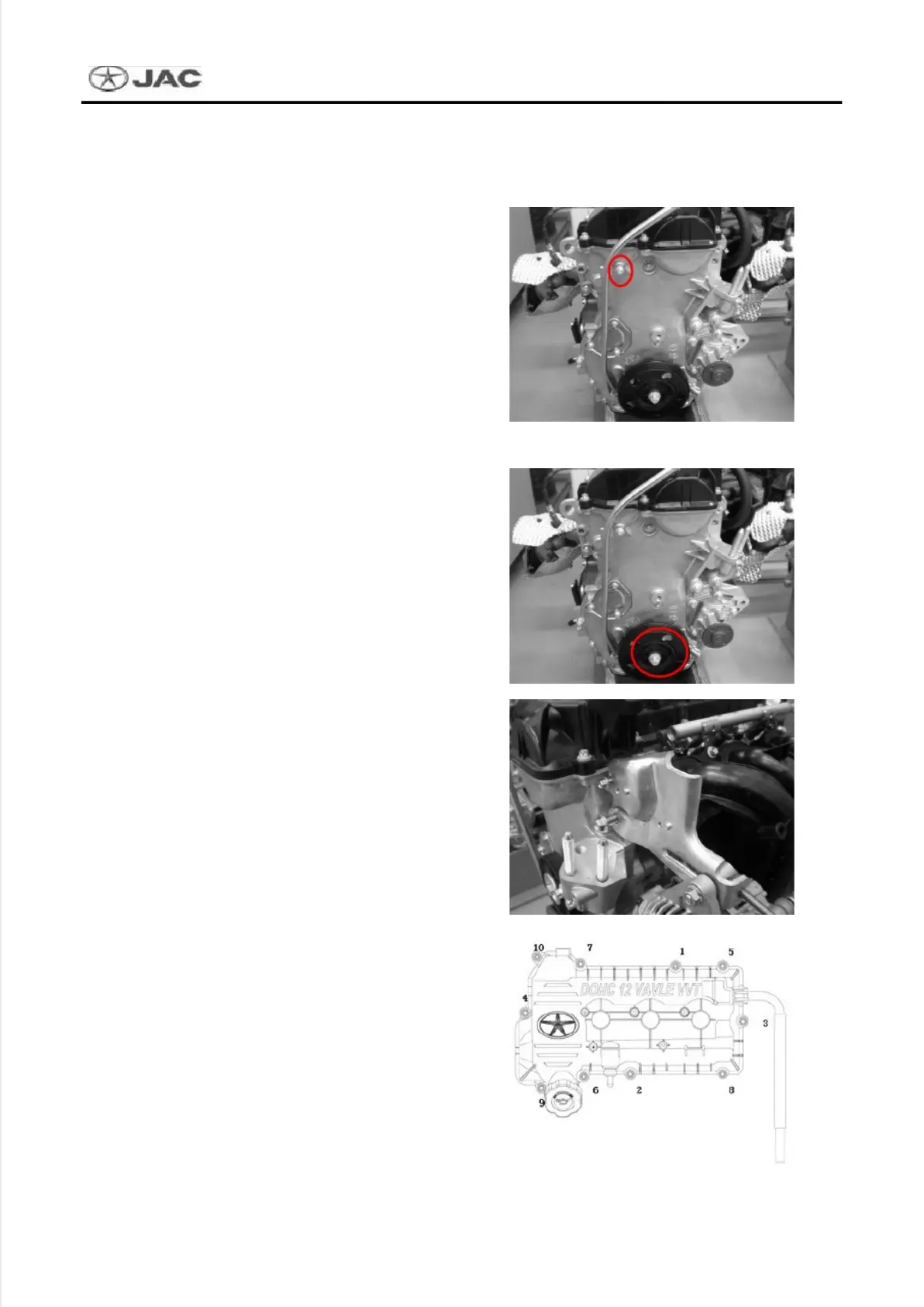

Fig. 1.1.024
Fig. 1.1.025
Fig. 1.1.026
Fig. 1.1.027
Tightening sequence for bolts
of cylinder head shield

