tecMIG 450/600
Operating manual Page 42
29. Operation / welding
- Installation of the welding unit
When installing the machine, allow for sufficient space for inlet and outlet cooling air so that the rated duty cycle
will be attained.
The machine should not be exposed to moisture, welding spatter or spark rays caused by grinding work.
- Mains connection (if not mounted)
To be carried out only by a qualified electrician!
Connect mains plug to mains cable as specified on the rating plate. The yellow-green lead is provided for PE
earth conductor. The three phases (black, brown, blue) may be con-nected to L1, L2, and L3 at random.

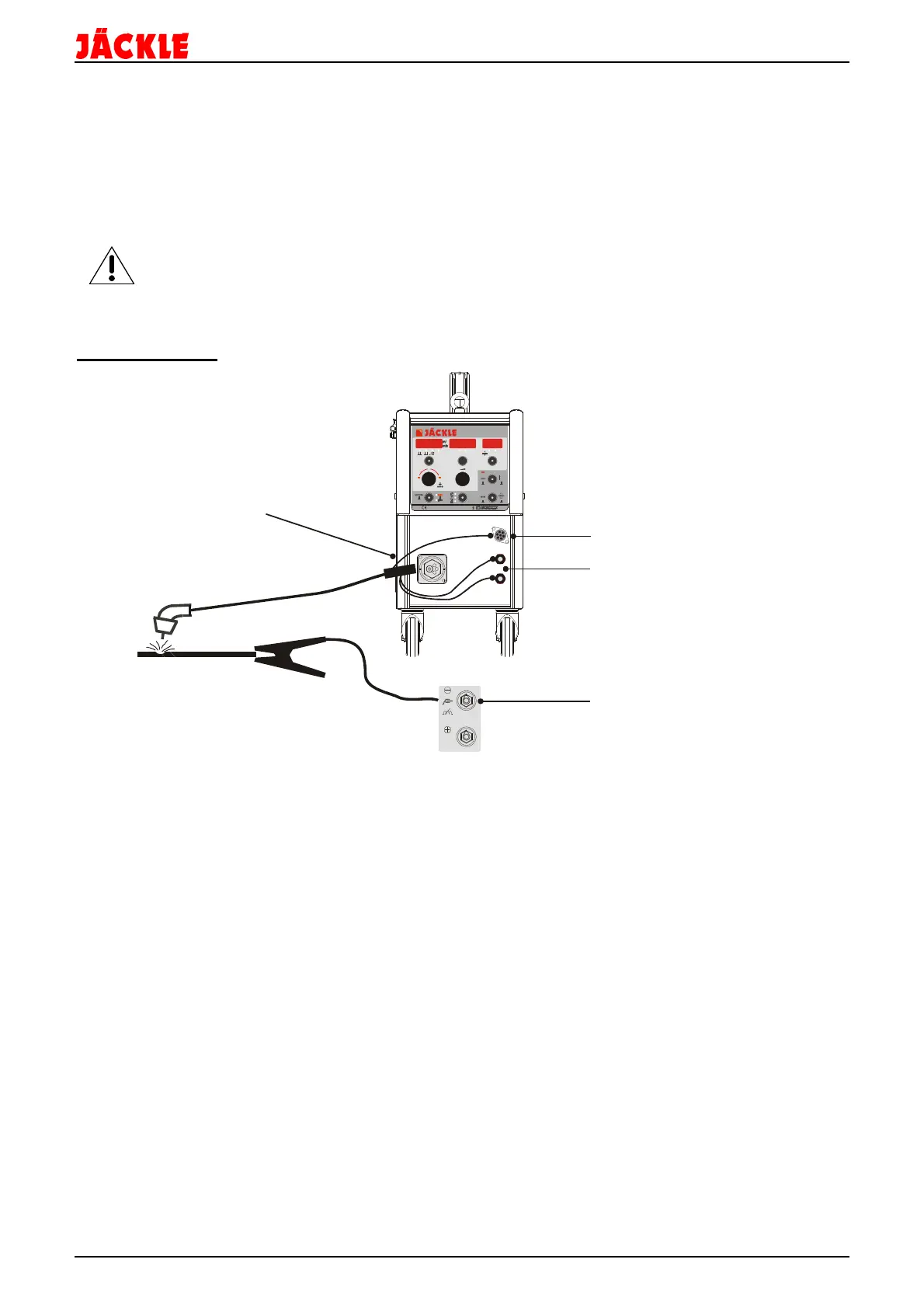

MIG / MAG welding
Brenner
Zentralanschluss
Central
torch connection
Massebuchse
Workpiece socket
S % sec
l/min
TEST
mm
V A
MC 1
F
X
LADEN
SPEICHERN
Anschluss up/down Brenner
Connection up/down torch
Wasservorlauf ‘blau-kalt’ DN 5
water flow ‘blue-cold’ DN 5
Wasserrücklauf ‘rot-heiß’ DN 5
water runback ‘red-hot’ DN 5
