SECTION 6: PARTS SECTION
CONTROL BOX ASSEMBLY (CONTINUED)
ITEM QTY DESCRIPTION Mfg. No.
1 1 Timer, Solid State 05945-307-07-93
2 1 Liquid Level Control, 2 Probe, 4 SEC 06680-200-01-93
3 1 Thermometer, LED with 21" & 89" Probe 06685-400-04-00
1 Wash Probe, 19” 06685-400-06-00
1 Rinse Probe, 87” 06685-400-07-00
4 2 Locknut, 10-24 S/S Hex with Nylon Insert 05310-373-01-00
5 1 Decal, Detergent Dispenser 09905-107-02-12
6 2 Screw, 10-32 x 3/8" Long Truss 05305-173-12-00
7 1 Din Rail, 9 11/16" Long 05700-001-26-97
8 1 Switch, SPDT 3 Position, WASH-OFF-RINSE 05930-302-03-41
9 1 Light, Amber Indicator 28 VAC 05945-504-02-90
10 1 Switch, SPDT 3 Position, AUTO-OFF-MANUAL 05930-301-49-00
11 1 Light, Green Indicator 28 VAC 05945-504-04-90
12 1 Switch, SPDT 2 Position, ON-OFF 05930-301-46-00
13 1 Light, Red Indicator 28 VAC 05945-504-01-90
14 1 Overload, 2.5-4 AMP Range (208-230V Models Only) 05945-111-68-41
14 1 Overload, 460V, 3 PH 05945-304-02-09
15 1 Relay, Wash Motor, 208-460V, 1PH & 3 PH 05945-109-03-09
16 1 Relay, Wash Heater, 208-230V, 1 PH (Not used on 200S) 05945-109-02-09
17 1 Relay, Rinse Heater, 208-230/460V (200B Only) 05945-109-01-09
18 1 Decal, Ground 09905-011-86-86
19 1 Control Box Weldment with Tric-nuts 05700-001-26-44
20 1 WireLug 05940-200-76-00
21 1 Decal, L1, L2, & L3 09905-101-12-66
22 1 Decals, Copper Conductors 09905-011-47-35
23 1 Block, 3 Pole Power Distribution 05945-603-01-66
24 2 Screw, 10-32 x 7/8" Fillister Head 05305-973-04-00
25 2 Fitting, 3/4" Straight Xtraflex 05975-205-46-44
26 4 Screw, 10-32 x 7/8" Fillister Head 05305-973-04-00
27 1 Relay, 24 VAC Coil 05945-301-07-40
28 1 Holder, Fuse #350 330 05920-401-03-14
29 1 Transformer, 60VA, 208/240V Class 05950-400-01-35
29 1 Transformer, 60VA, 460V 05950-400-02-35
30 2 Screw, 10-32 x 3/8" Long Truss 05305-173-12-00
31 1 Decal, Control Box 09905-101-00-00
32 1 Light, Blue Indicator 28 VAC 05945-504-05-90
33 1 Light, Clear Indicator 28 VAC 05945-504-03-90
34 1 Fitting, Liquid Tite, Temperature Probe 05975-205-43-00
35 1 Connector, Liquid Tite Fitting, .27 to .48 05975-011-59-50
200 Series Technical Manual
7610-100-45-00 Rev. E (02/10/2006)

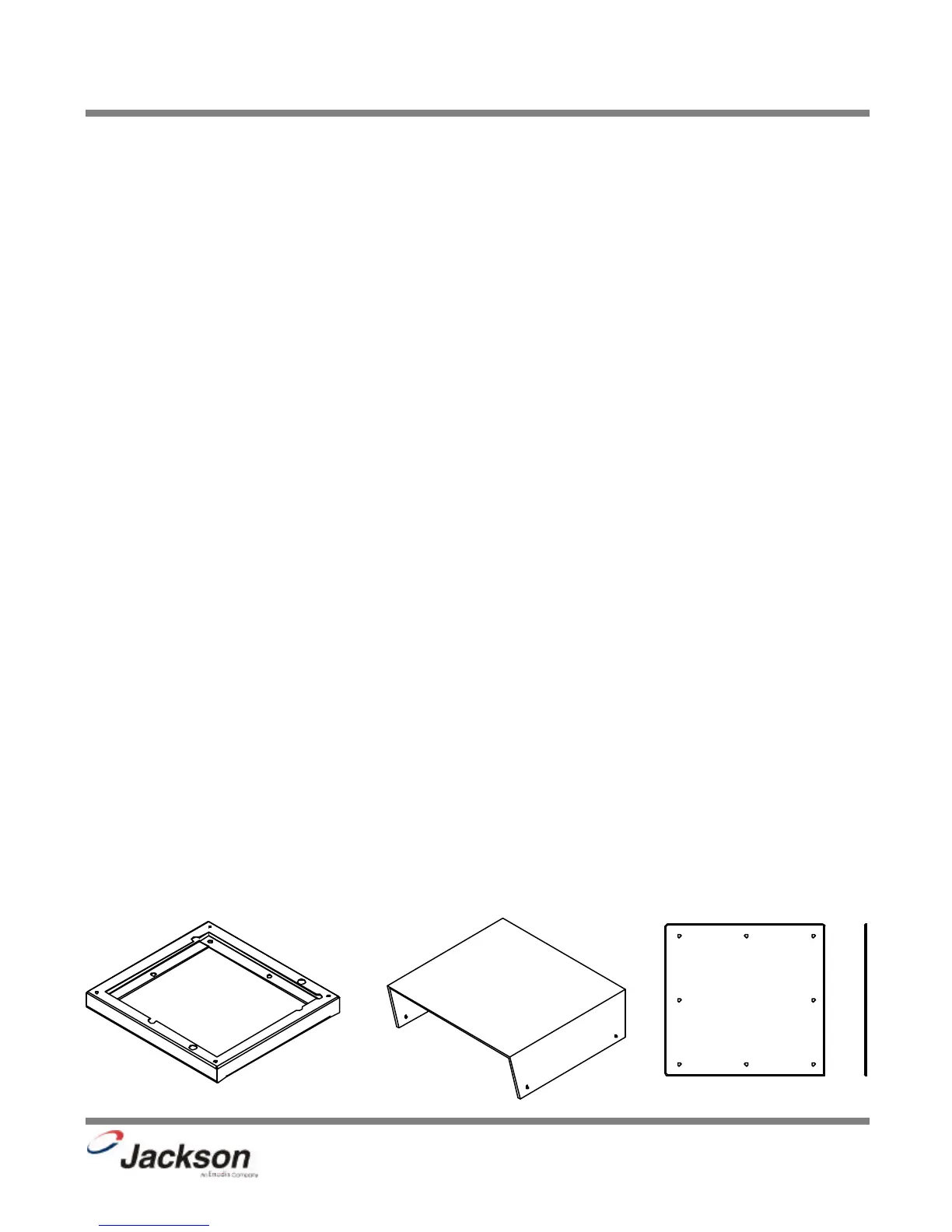

Spacer, Control Box
09515-800-94-00
Platform, with Tricnuts
05700-001-26-89
Cover, Control Box
05700-001-22-09
