Jackson 200B - Steam Coil Assembly

42
200 Series Technical Manual
7610-100-45-00 Rev. E (02/10/2006)
SECTION 6: PARTS SECTION

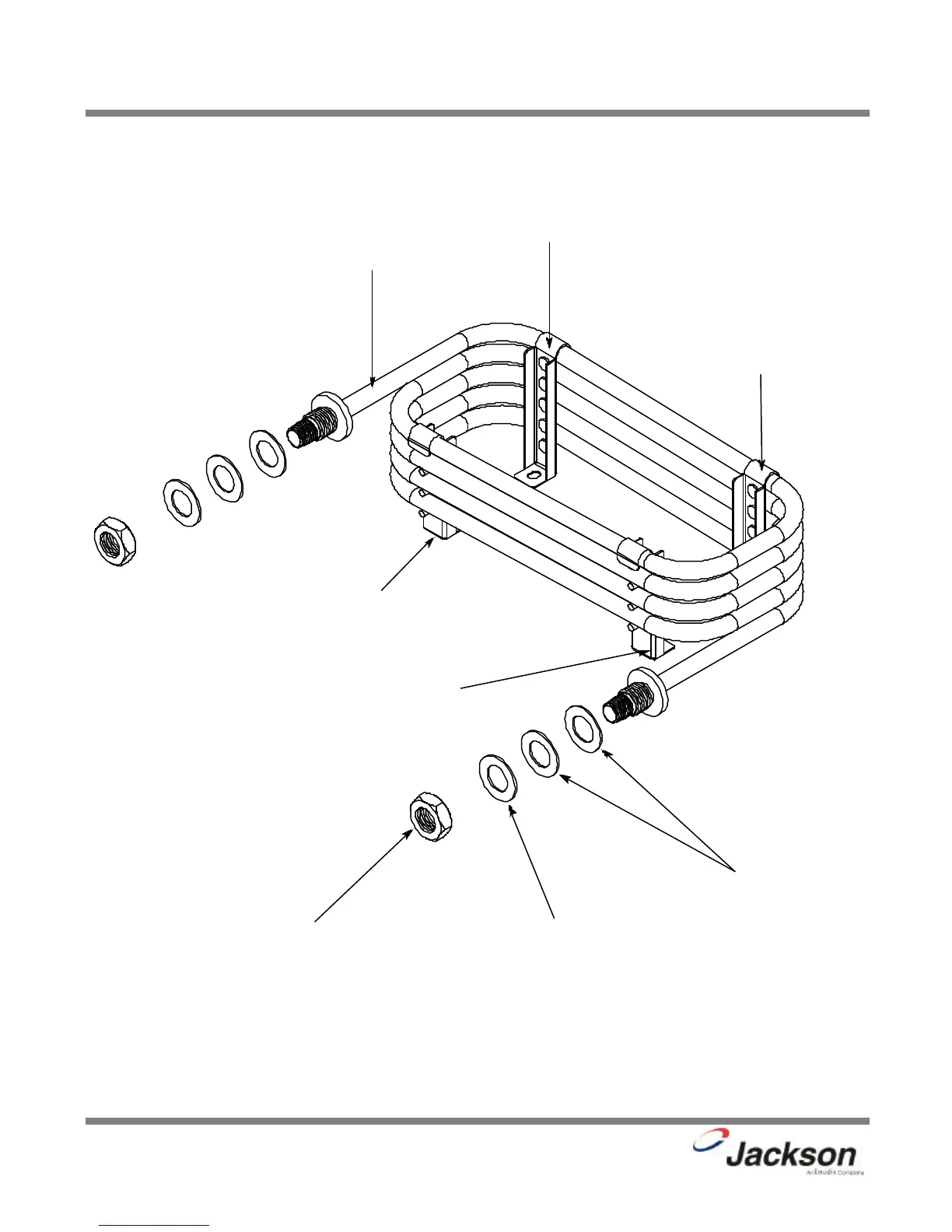

COIL ASSEMBLY (200S)
Stand C, Steam Coil Support
05700-002-08-52
Steam Coil Weldment
05700-021-41-38
Stand D, Steam Coil Support
05700-002-08-53
Stand B, Steam Coil Support
05700-002-08-51
Adapter, Steam Coil Nut
2 per assembly
05700-011-17-85
Washer, Steam Coil
2 per assembly
05700-001-17-87
Gasket, Steam Coil
4 per assembly
05700-001-17-86
Stand A, Steam Coil Support
05700-002-08-50
Complete Steam Coil Assembly
05700-002-08-62
