46
200 Series Technical Manual
7610-100-45-00 Rev. E (02/10/2006)
SECTION 6: PARTS SECTION

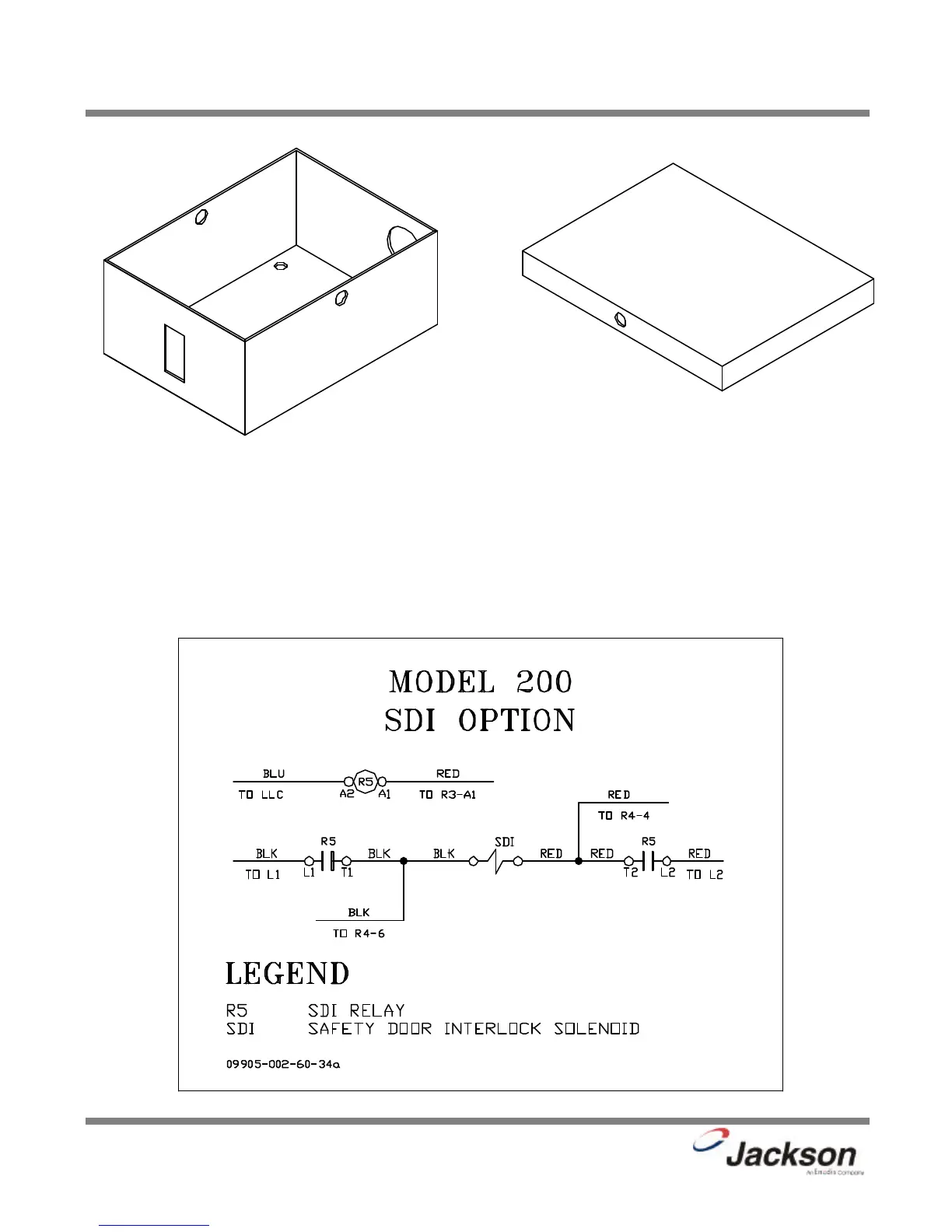

SAFETY DOOR INTERLOCK (SDI) OPTION
Safety Door Interlock Box Bottom
05700-001-21-26
Safety Door Interlock Box Cover
05700-001-21-27
Other Safety Door Interlock (SDI) components (not shown):
Pipe Clamp (found on the side of the machine) 05700-000-35-05
Solenoid, Electrical Interlock Option 04810-100-61-33
Relay 05945-109-03-09
