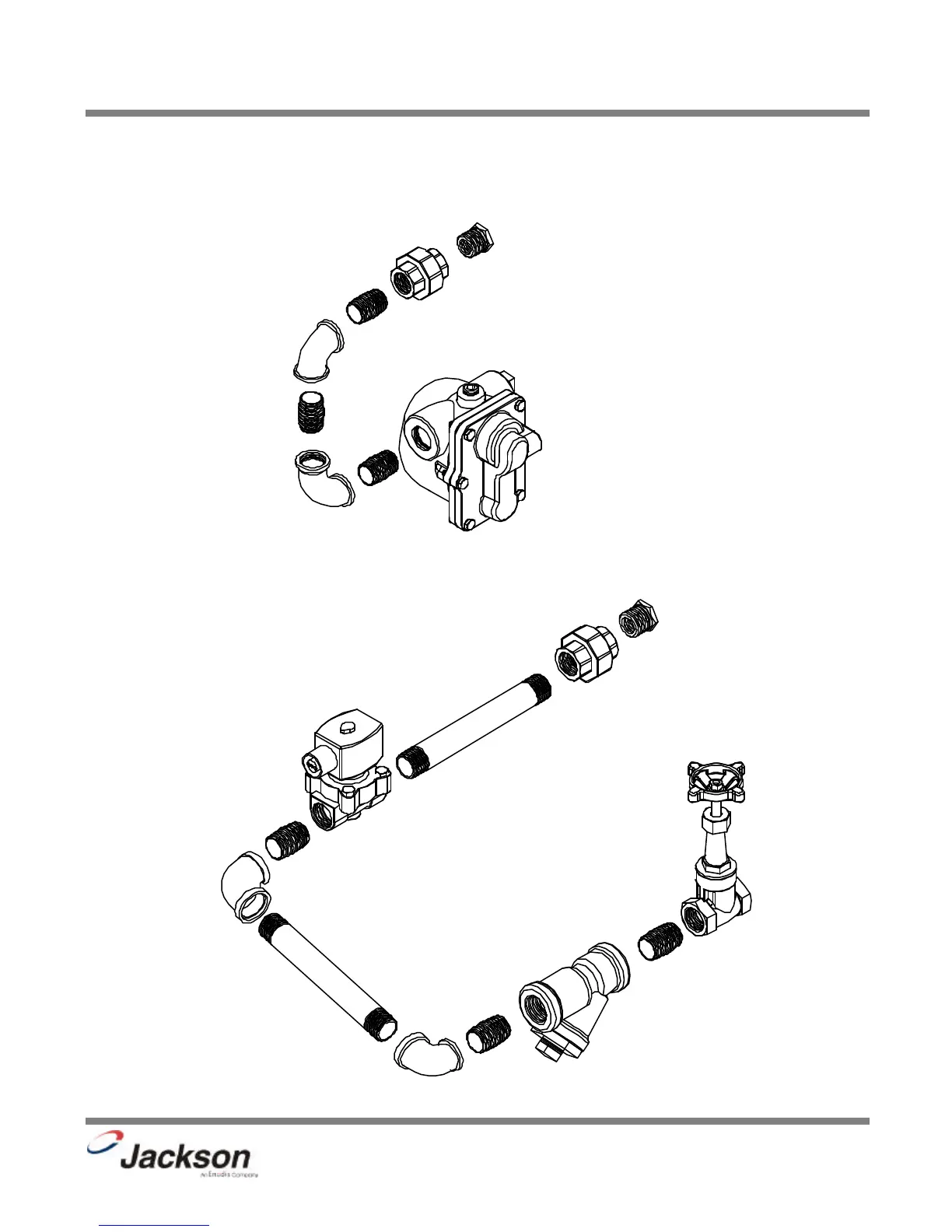

INCOMING STEAM PLUMBING ASSEMBLY (200S)
Union, 3/4’’ NPT, Black Iron
2 per assembly
04730-912-01-01
6” x 3/4” NPT, Black Iron Pipe
2 per assembly
04730-907-01-34
Gate Valve, 3/4” NPT
04820-100-19-00
Y-Strainer, 3/4” NPT Black Iron
04730-217-01-32
Pipe Plug
04730-909-01-34
Solenoid Valve, Steam Plumbing, 24V
04820-100-26-34
Elbow, 3/4” 90°
4 per assembly
04730-906-10-34
Steam Trap, 3/4” NPT F&T
06680-500-02-77
Bushing, Reducing, 3/4” to 1/2”
04730-911-02-34
Bushing, Reducing, 3/4” to 1/2”
04730-911-02-34
Nipple, Close, 3/4” NPT, Black Iron
6 per assembly
04730-907-01-00
To order this complete assembly, use part number 05700-041-42-73.
