Jackson 200B - Incoming Plumbing; Outlet Plumbing Assembly

39
200 Series Technical Manual
7610-100-45-00 Rev. E (02/10/2006)
SECTION 6: PARTS SECTION

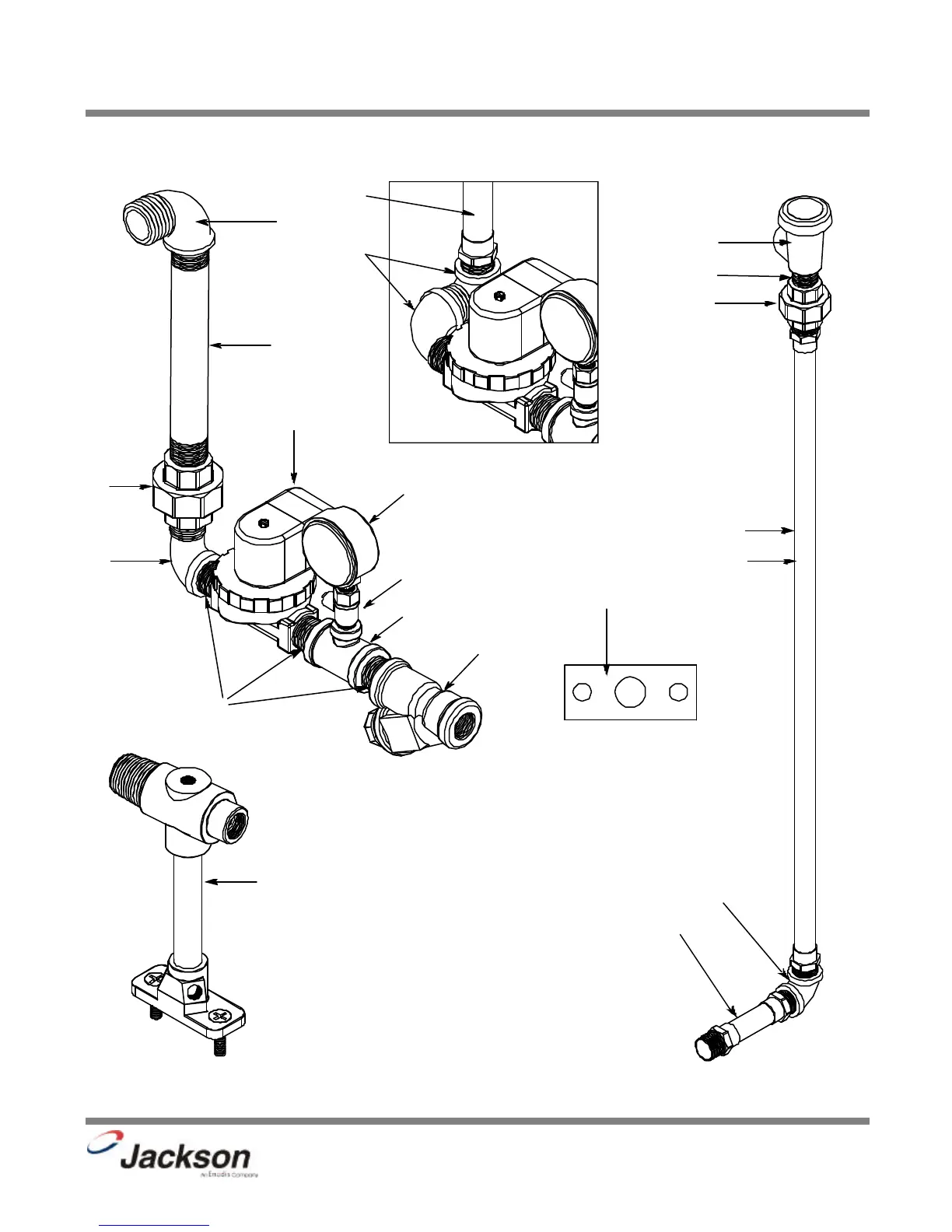

INCOMING FILL PLUMBING/OUTLET PLUMBING
200B INCOMING FILL PLUMBING
200/200LT INCOMING FILL PLUMBING
200B OUTLET PLUMBING
10
5
8
11
12
7
7
12
9
6
7
8
3
13
2
1
5
4
14
16
15
When servicing plumbing components, take care not to
damage the threads of each individual item. Damaged
threads can cause leaks and loss of pressure, which
could adversely effect the performance of the Tempstar
dishmachine. It is strongly recommended that teflon
thread tape, used in conservative amounts, be applied
to threads when joining components together. It is not
advised to use thread sealing compounds, sometimes
referred to as “pipe dope”. Compounds can be ejected
from the threads during the tightening process and
become lodged in key components, thereby rendering
them useless. Some of the components include the
solenoid valve and the pressure gauge isolation ball
valve.
