Jackson 200B - Page 45

40
200 Series Technical Manual
7610-100-45-00 Rev. E (02/10/2006)
SECTION 6: PARTS SECTION
INCOMING FILL PLUMBING/OUTLET PLUMBING (CONTINUED)
ITEM QTY DESCRIPTION Mfg. No.
1 1 Y Strainer 3/4" NPT 04730-717-02-06
2 1 Gauge, Pressure, 0-100 PSI 06685-111-88-34
3 1 Valve, Ball, 1/4" NPT 04810-011-72-67
4 1 Tee, Brass, 3/4" NPT x 3/4" NPT x 1/4" NPT 04730-211-04-00
5 4 Nipple, Close, 3/4" NPT 04730-207-34-00
6 1 Valve, Solenoid, 3/4" NPT, 24V 04810-100-01-40
7 2 Elbow, 3/4" NPT, Brass, 90° Street (Note configuration for 200/200LT) 04730-206-04-34
8 2 Union Assembly (1 Only for 200/200LT) 05700-002-63-79
8a 1 Union, 3/4" NPT, Brass 04730-212-05-00
8b 1 O-Ring 05330-400-05-00
9 1 Nipple, 3/4” x 6” Brass (200B Only) 05700-001-26-74
10 1 Vacuum Breaker, 3/4" NPT 04820-002-53-77
11 1 Nipple Assembly (200B) 05700-001-26-73
11a 2 Adapter, 3/4" Male 04730-401-11-01
11b 1 Tube, Copper 3/4” x 29 3/8” 05700-011-82-29
12 1 Nipple Assembly (200/200LT) 05700-001-26-14
12a 2 Adapter, 3/4" Male 04730-401-11-01
12b 1 Tube, Copper 3/4” x 46 3/8” 05700-011-65-25
13 1 Elbow, 3/4" NPT,90° Brass(200B Only) 04730-206-13-00
14 1 Nipple Assembly (200B Only) 05700-001-26-72
14a 2 Adapter, 3/4" Male 04730-401-11-01
14b 1 Tube, Copper 3/4” x 2 7/8” 05700-011-76-76
15 2 Rinse Injector Gasket 05330-500-19-00
16 1 Rinse Injector Weldment 05700-001-25-78
16a 3 Plug, 1/8” NPT, Brass 04730-209-07-37
16b 1 Union, 1/4” Brass (For Thermostat Probe) 05700-001-16-52

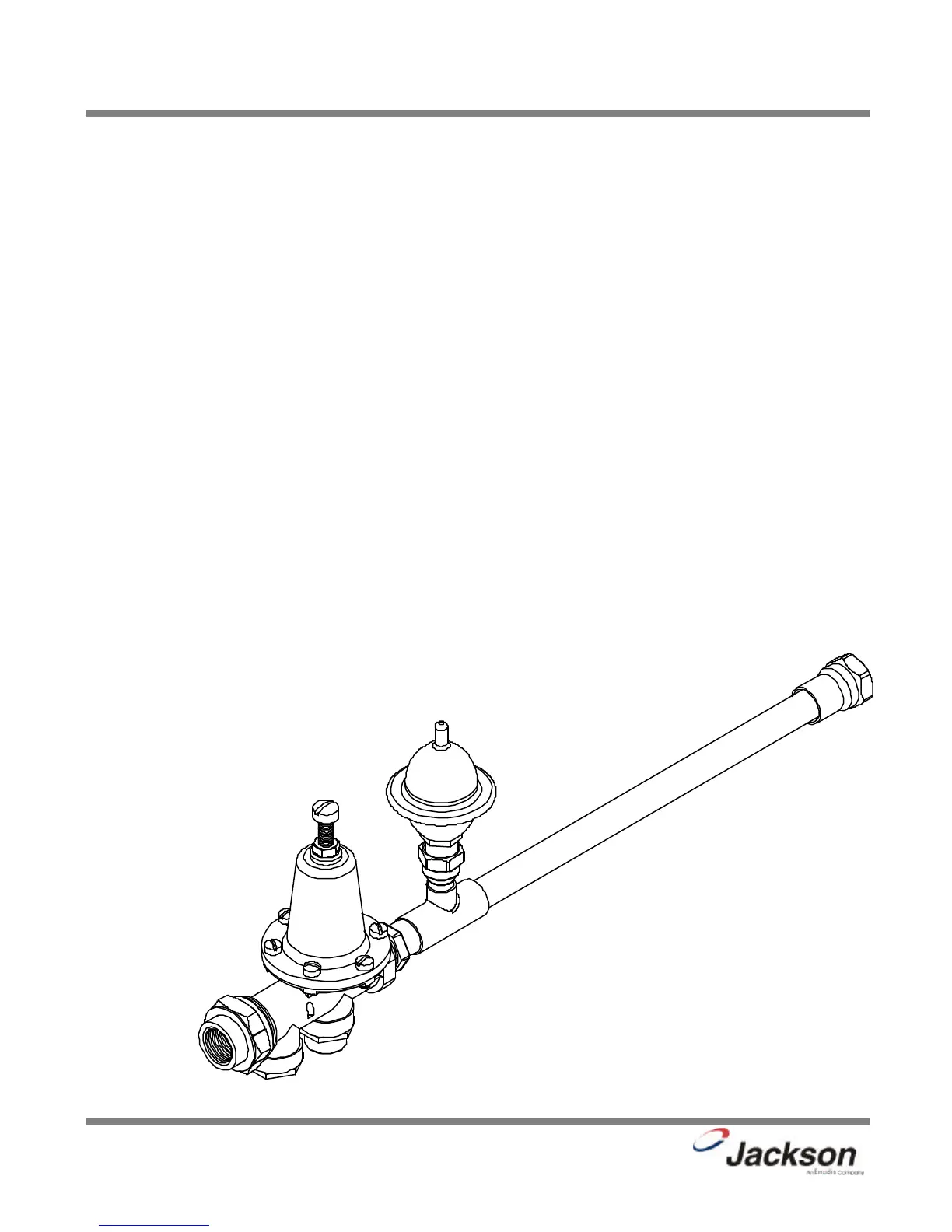

Water Hammer Arrestor, 1/2" NPT
06685-100-05-00
To order this complete assembly use part number 05700-001-96-41.
Regulator, Pressure 3/4”
06685-011-58-22
WATER PRESSURE REGULATOR KIT (WPRK) OPTION PLUMBING
