Jackson 200B - Hood Assembly

30
SECTION 6: PARTS SECTION

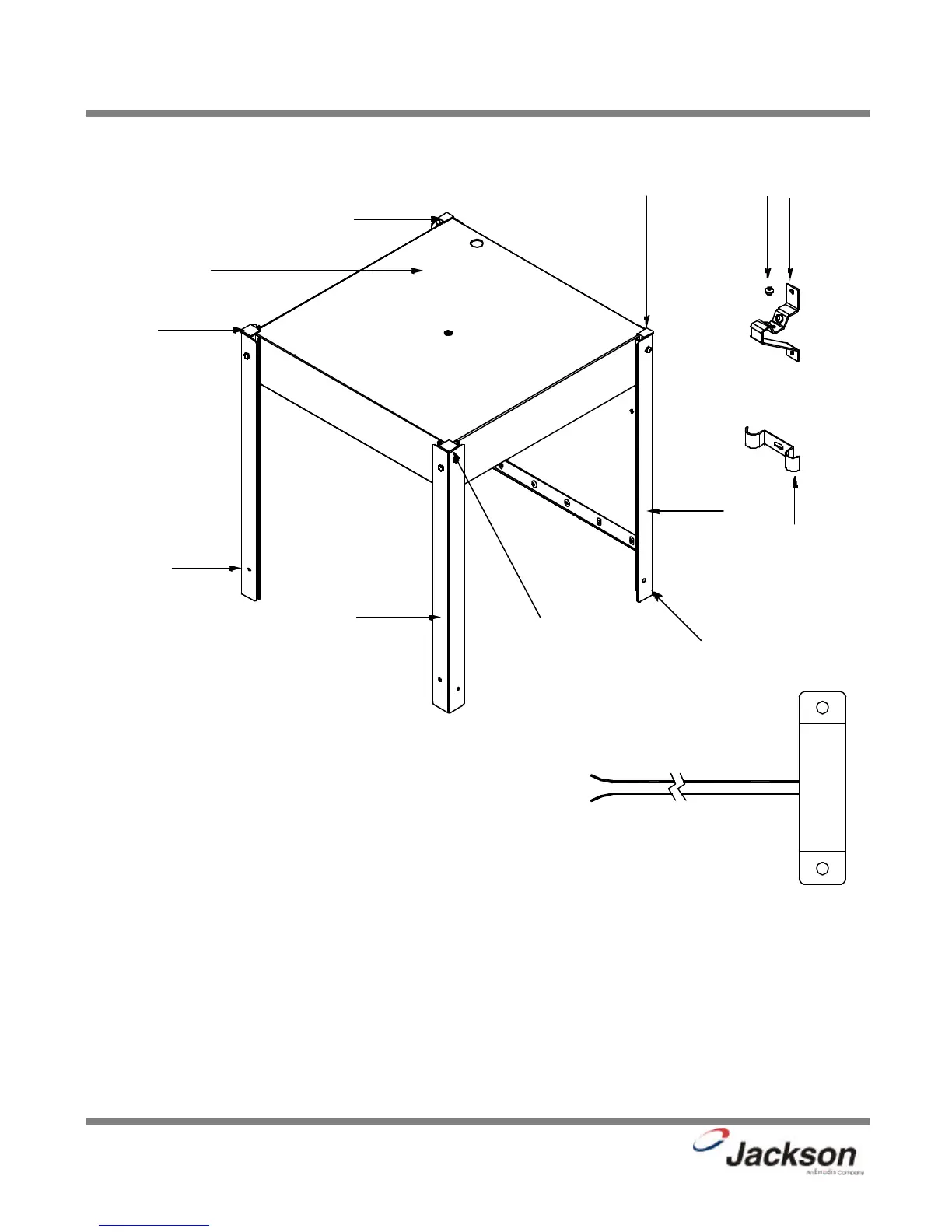

HOOD ASSEMBLY (SINGLE PIECE WELDMENT)
ITEM QTY DESCRIPTION Mfg. No.
1 1 Hood, Weldment 05700-001-23-22
2 2 Bracket, Cantilever Support 05700-031-88-00
3 6 Wear Button 1/2” Dia. 05700-011-88-01
4 1 Clamp, Double 05700-002-23-89
5 2 Hood Spacer, Rear 05700-001-23-06
6 2 Hood Spacer, Front 05700-001-23-07
7 2 Front Door Rail 05700-001-20-82
8 4 Hood Support 05700-001-20-83
9 6 Hood Spacer, Bottom (Not shown) 05700-001-23-05
200 Series Technical Manual
7610-100-45-00 Rev. E (02/10/2006)
1
6
5
7, 8
6
7, 8
9
9
2
8
4
3
5
Magnetic Reed Switch
5930-002-36-80
