48
200 Series Technical Manual
7610-100-45-00 Rev. E (02/10/2006)
SECTION 6: PARTS SECTION

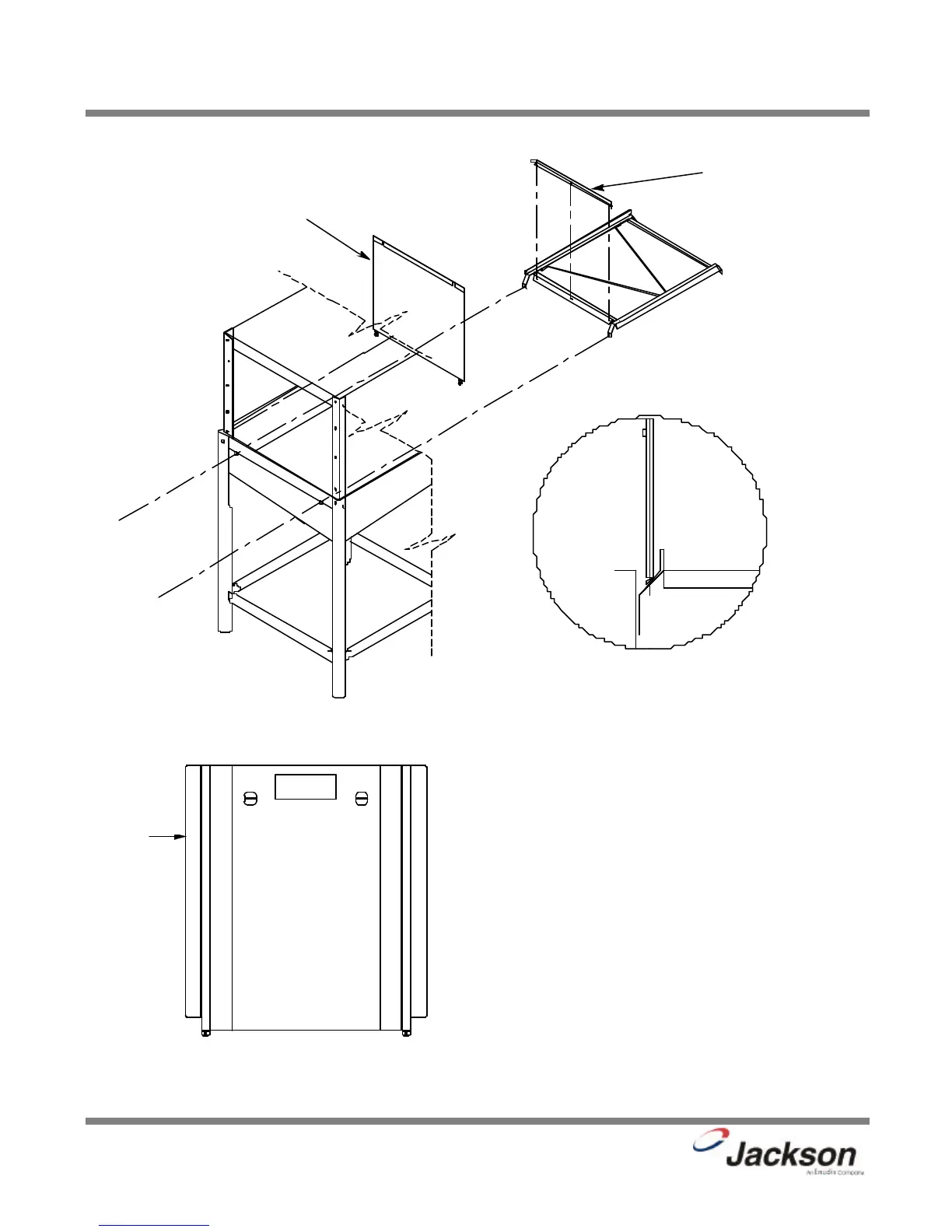

FALSE PANEL INSTALLATION
1. Loosen the rack assembly from the unit.
2. False panel will mount to the rack; inside the dishmachine.
3. Position panel in unit on side to be closed.
4. Hold panel against side of dishmachine and push up.
5. Panel will clip inside the unit under the edge of the hood.
6. Holes in false panel willl ine up with rack assembly holes.
7. Re-install screws for rack assembly which will secure false panel
to unit.
8. Re-assemble the rack track in an “L” shape for a corner opera-
tion.
Bottom of side panel.
Insert this
side first.
False panel positioned in unit.
Rack rail removed & reposi-
tioned for a corner operation.
Front False Panel
05700-001-29-39
Front False Panel Kit with Hardware
05700-021-30-39
