Jackson 200B - Rinse Tank Assembly

35
SECTION 6: PARTS SECTION

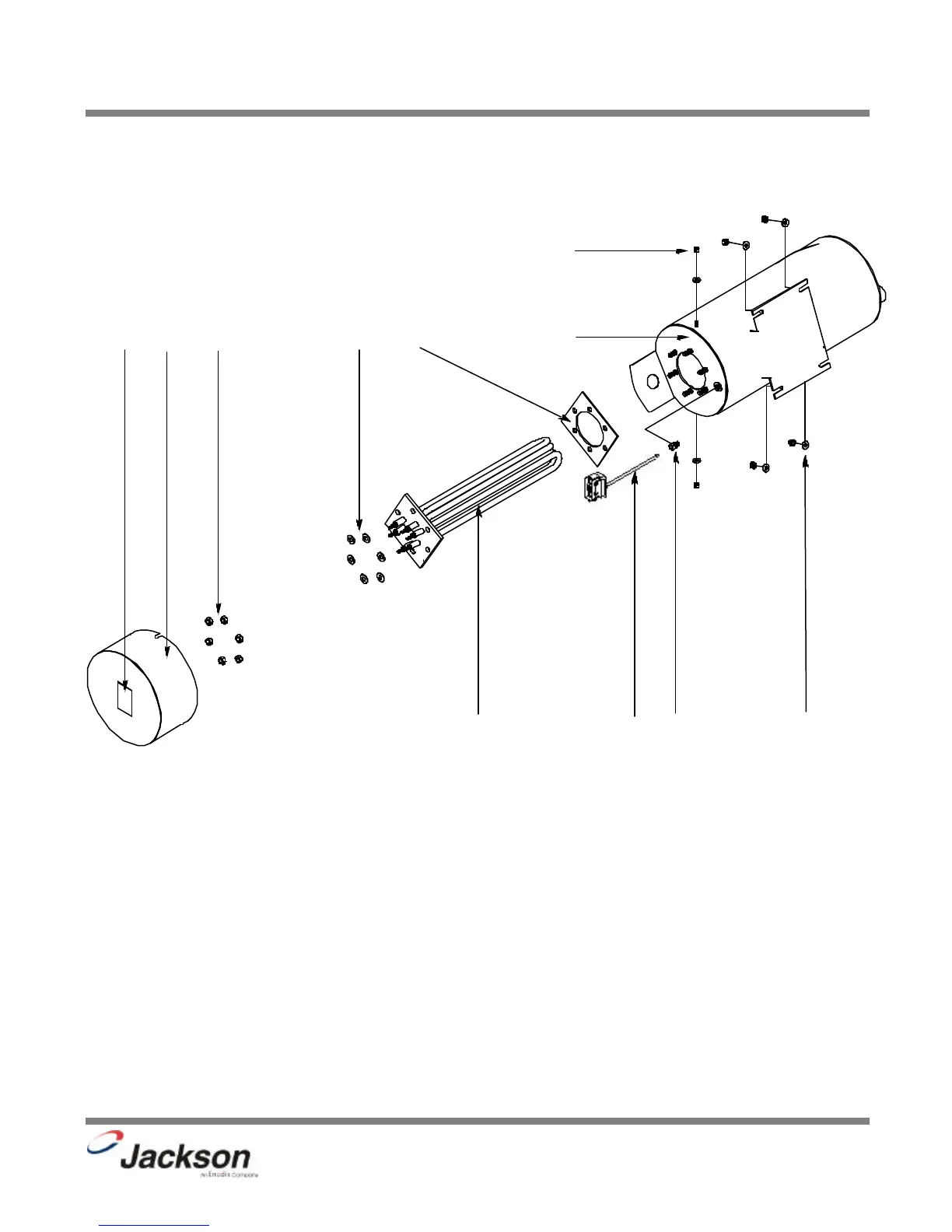

RINSE TANK ASSEMBLY (200B)
ITEM QTY DESCRIPTION Mfg. No.
1 1 Booster Tank Weldment 05700-001-22-02
2 2 Locknut, 10-24 with Nylon Insert 05310-373-01-00
3 2 Washer, #10 S/S Flat 05311-173-01-00
4 1 Decal, Warning - Disconnect Power 09905-100-75-93
5 1 Booster Tank Cover Weldment 05700-001-29-30
6 6 Nut, Hex, 5/16"-18 05310-275-01-00
7 4 Washer, 1/4" ID, S/S, Flat 05311-174-01-00
8 4 Locknut, 1/4"-20 with Nylon Insert 05310-374-01-00
9 1 Thermostat, Rinse 05930-510-03-79
10 6 Washer, 5/16” I.D. 05311-175-01-00
11 1 Gasket, Rinse Heater 05330-200-02-70
12 1 Fitting, 1/4" Imperial Brass 05310-924-02-05
200 Series Technical Manual
7610-100-45-00 Rev. E (02/10/2006)
4
5
9
11
12
2, 3
16 10
8, 7
SEE PAGE ENTITLED
“WASH/RINSE HEATERS”.
