Jackson 200B - 200;200 B;200 LT 208 - 230 - 460 V, 50;60 HZ, Single;Three Phase

50

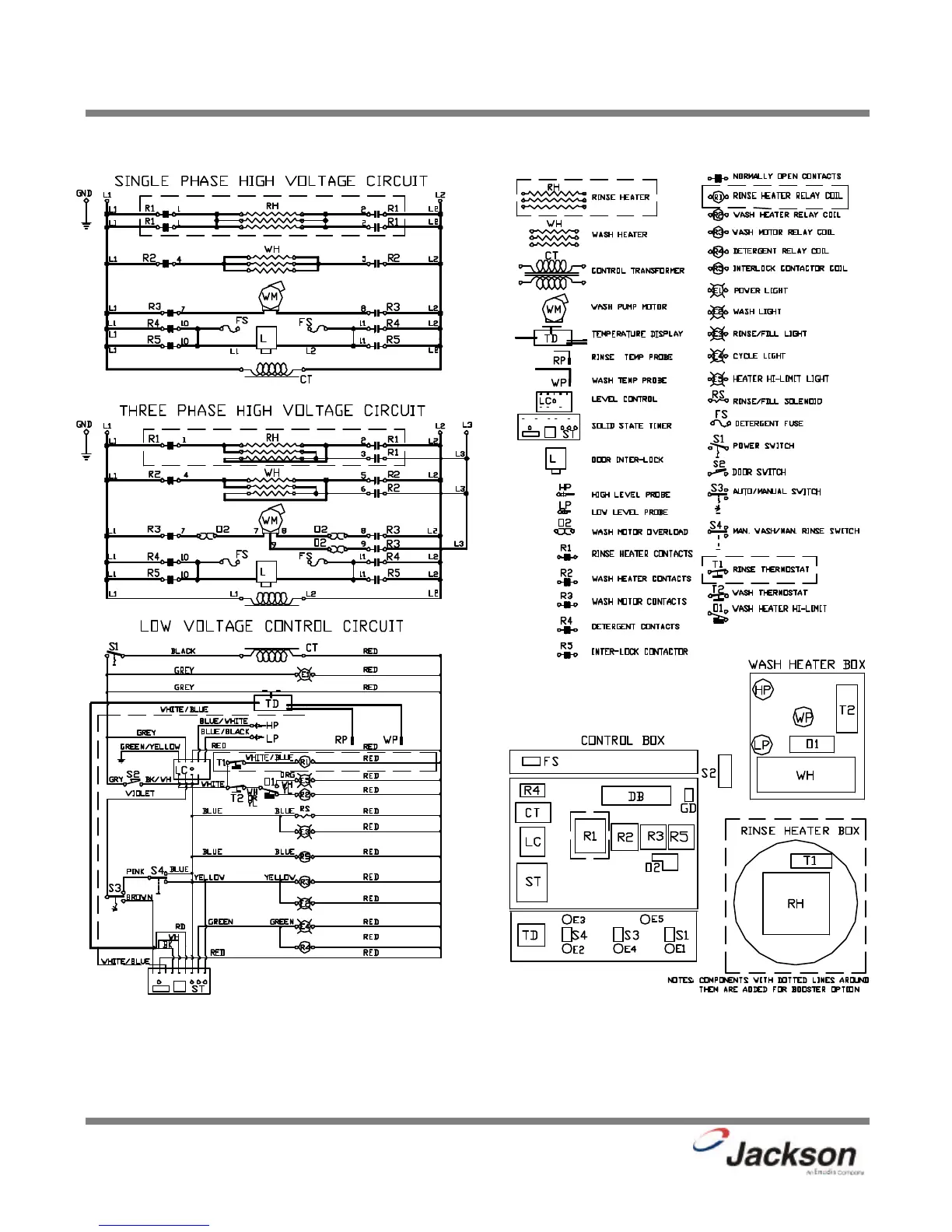

SECTION 7: ELECTRICALSCHEMATICS
200/200B/200LT 208-230-460V, 50/60 HZ, SINGLE & THREE PHASE
200 Series Technical Manual
7610-100-45-00 Rev. E (02/10/2006)
Dashed White/Blue wire is added for Sani-sure Option.
Sani-sure can only be installed on machines with booster option.
9905-105-01-12
