Jackson 200B - Page 37

32
SECTION 6: PARTS SECTION
CANTILEVER ARM/DOOR ASSEMBLIES (CONTINUED)
ITEM QTY DESCRIPTION Mfg. No.
1 1 Cantilever Arm 05700-001-21-00
2 2 Spring Pin, 1/4" x 1 1/8" 05315-407-06-00
3 2 Yoke Assembly 05700-000-75-77
3a 1 Cotter Pin 05315-207-01-00
3b 1 Yoke 05700-000-75-78
3c 1 Clevis Pin, 5/16” x 1 3/8” 05315-700-01-00
3d 2 Nylon Washer 05311-369-03-00
3e 1 Bushing 03120-100-03-00
3f 2 Locknut, 3/8”-16 S/S Hex Center 05310-256-04-00
4 2 Rod, Spring 05700-001-28-18
5 2 Spring 05340-109-02-00
6 2 Bolt, Cantilever Hanger Eye 3/8"-16 05306-956-05-00
7 2 Washer, 3/8" ID x 7/8" OD S/S 05311-176-02-00
8 4 Nut, 3/8"-16 S/S Hex 05310-276-01-00
9 2 Connector, Cantilever Arm 05700-001-25-42
10 2 Screw, 1/4"-20 x 1 1/2" Long S/S 05305-274-23-00
11 4 Washer, 1/4" S/S 05311-174-01-00
12 16 Locknut, 1/4"-20 S/S Hex with Nylon Insert Low Profile 05310-374-02-00
13 2 Sleeve, Cantilever Arm 05700-000-85-69
14 2 Plug, Cantilever Arm 05340-011-35-00
15 1 Magnet, Reed Switch 05930-002-68-53
16 2 Locknut, 8-32 S/S Hex with Nylon Insert 05310-272-02-00
17 4 Door Stop 05700-021-38-88
18 6 Door, Guides 05330-600-02-00
19 2 Screw, 1/4"-20 x 3/4" Long S/S 05305-274-04-00
20 2 Sleeve, Lever & Wrap 05700-001-25-41
21 8 Locknut, 1/4"-20 S/S Hex with Nylon Insert 05310-374-01-00
22 1 Door, Front (Complete Assembly) 05700-001-25-72
22A 1 Door Only, Front 05700-001-20-98
22B 1 Operation Decal 09905-101-11-12
23 1 Door, Left Side (Complete Assembly) 05700-001-25-73
23A 1 Door Only, Left Side 05700-001-20-99
24 1 Door, Right Side (Complete Assembly) 05700-001-25-74

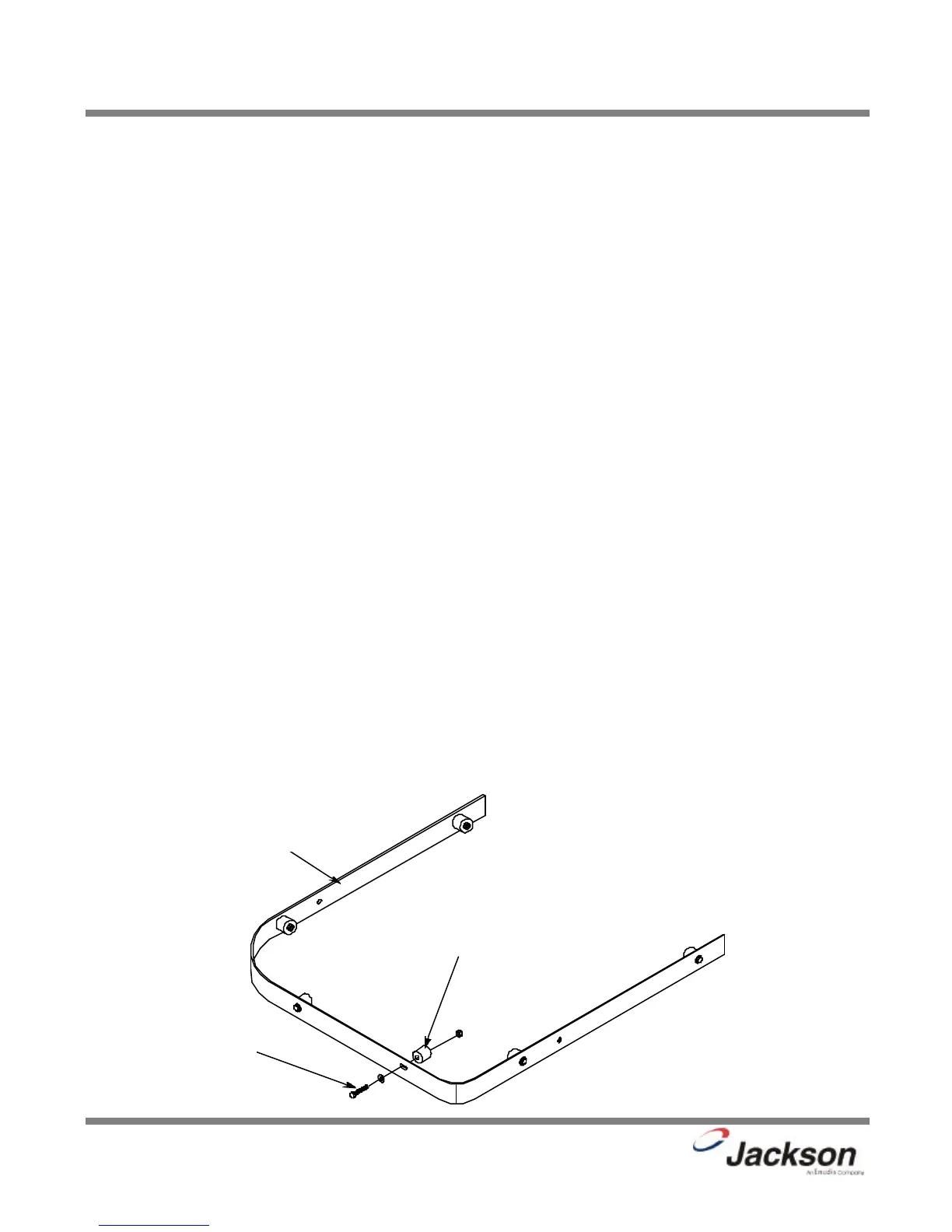

25 1 Door Connector Wrap 05700-001-22-73
26 6 Door Connector Wrap Spacer 05700-001-23-12
27 6 Screw, 1/4"-20 x 1 1/8" Long S/S 05305-274-21-00
28 8 Screw, 1/4"-20 x 3/8" Long S/S 05305-179-02-00
200 Series Technical Manual
7610-100-45-00 Rev. E (02/10/2006)
11, 21, 27
25
26
