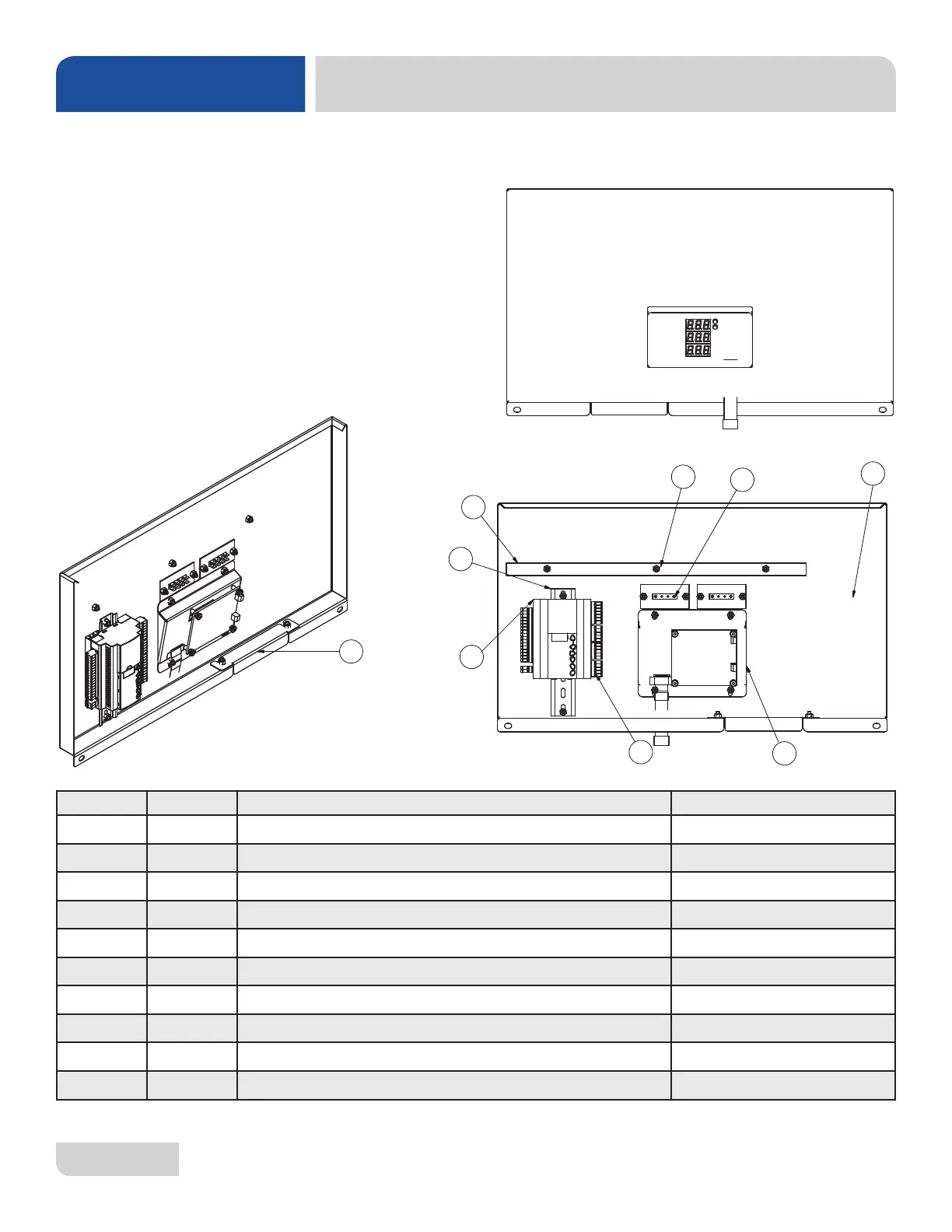

Jackson AVENGER HT-E - Control Kick Panel Components

32
07610-004-04-18-R
CONTROL KICK PANEL
PARTS
1
2
NOTE:
DIELECTRIC COVER HIDDEN
FOR CLARITY
3
5
4
6
7
8
9
1
2
NOTE:
DIELECTRIC COVER HIDDEN
FOR CLARITY
3
5
4
6
7
8
9
ITEM QTY DESCRIPTION PART NUMBER
1 16 Lock Nut 10-24 S/S Hex w/ Nylon Insert 05310-373-01-00
2 1 Dielectric Cover 05700-004-06-12
3 1 PLC Controller 05700-004-17-68
4 1 Din Rail 05700-021-94-96
5 2 Terminal Board, 4 POS 05940-021-94-85
6 1 Terminals, 88970317 M3 MA SET XD26 RBT 05700-004-05-08
7 1 Access Panel Cover 05700-004-11-27
8 1 Control Panel, Switch/Temp/Display 05700-004-27-00
9 1 Kick Panel Weldment 05700-004-04-28
10 1 Harness Switch to PLC (Not Shown) 05999-004-10-49
1
2
NOTE:
DIELECTRIC COVER HIDDEN
FOR CLARITY
3
5
4
6
7
8
9
Control Panel Complete Assembly
05700-004-05-62
FRONT
BACK
