Jackson AVENGER HT-E - Schematics; 208;230 V Electrical Diagram

50
07610-004-04-18-R

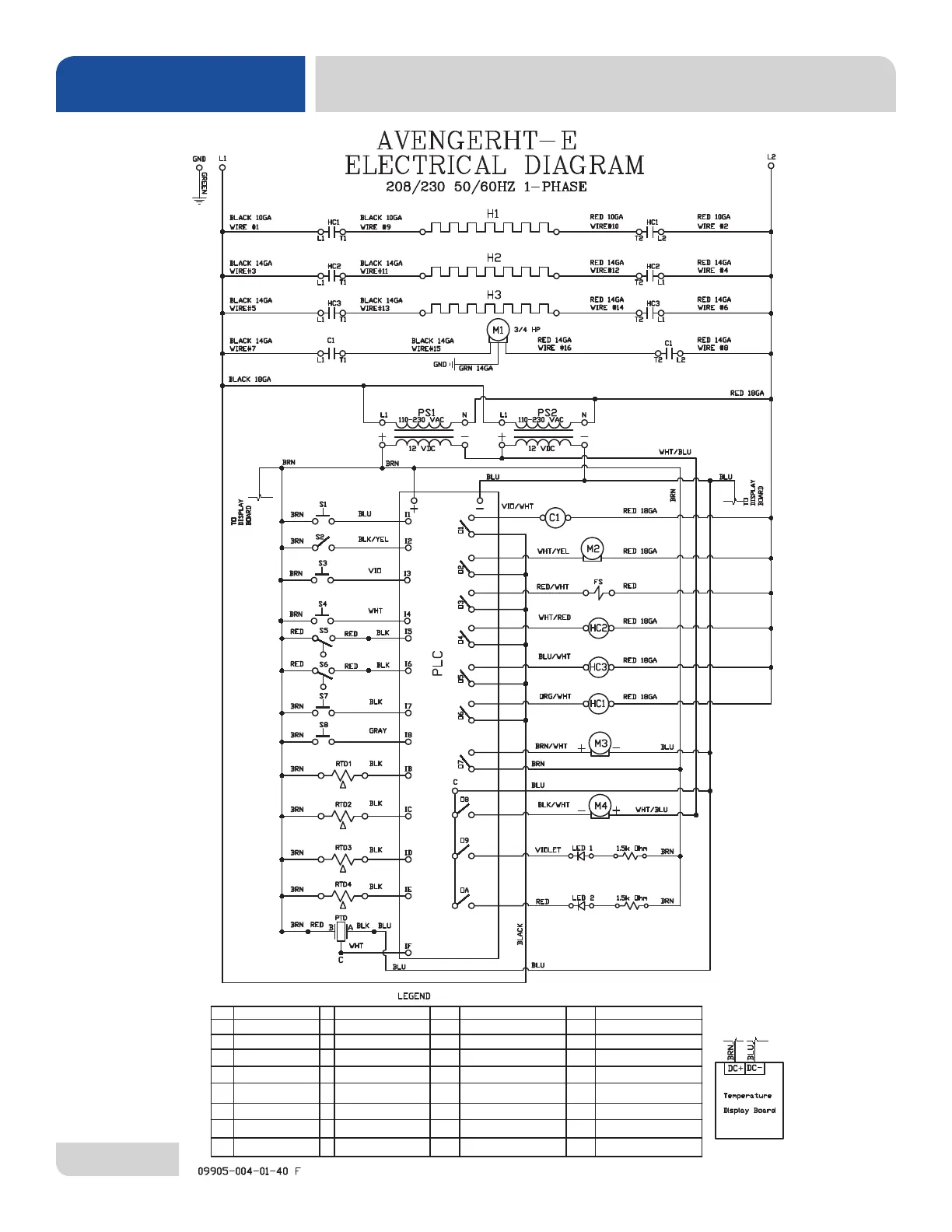

SCHEMATICS
GND GROUND S1 POWER SWITCH
RTD1
WASH REGULATING THRMOSTAT
H1
WASH HEATER S2 DOOR SAFETY SWITCH
RTD2 TOP RINSE TANK THERMOSTAT
H2 RINSE HEATER TOP S3 CYCLE SWITCH
RTD3 LOWER RINSE TANK THERMOSTAT
H3 RINSE HEATER BOTTOM S4 DELIME SWITCH
RTD4 TEMPERATURE GAUGE
M1 WASH MOTOR S5 HORIZONTAL FLOAT SWITCH
FS
RINSE/FILL SOLENOID
M2
DRAIN MOTOR S6 VERTICAL FLOAT SWITCH
HC1 WASH HEATER CONTACTOR
M3 DETERGENT MOTOR S7 RINSE AID PRIME SWITCH
HC2 TOP RINSE HEATER CONTACTOR
M4 RINSE AID MOTOR S8 DETERGENT PRIME SWITCH
HC3 LOWER RINSE HEATER CONTACTOR
PTD PRESSURE TRANSDUCER PS1 POWER SUPPLY
C1 WASH MOTOR CONTACTOR
PS2 POWER SUPPLY
LED 1
LED 2
FLUSH INDICATOR LED
DELIME INDICATOR LED
208/230 V, 50/60 HZ, 1-PHASE
