1
ITEM QTY DESCRIPTION PART NUMBER
1 1 Left Shroud 05700-003-37-04
2 1 Kick Panel Assembly 05700-004-05-62
3 1 Door Assembly 05700-004-04-21
4 1 Shroud Top 05700-003-37-06
5 1 Shroud Right 05700-003-37-05
6 1 Sump 05700-004-02-94
7 1
Drain Pump - 208 V 04730-003-91-41
Drain Pump - 480 V 04730-004-18-40
8
1 Wash Motor Assembly - 208 V 05700-004-04-04
1 Wash Motor Assembly - 480 V 05700-004-19-74
9 1 Terminal Block Box Cover 05700-003-27-70
10 1
Inlet Plumbing - 208 V 05700-004-09-03
Inlet Plumbing - 480 V 05700-004-11-43
11 1 Booster Assembly 05700-004-01-15
12 1 Rear Dress Panel (Optional) 05700-004-23-52

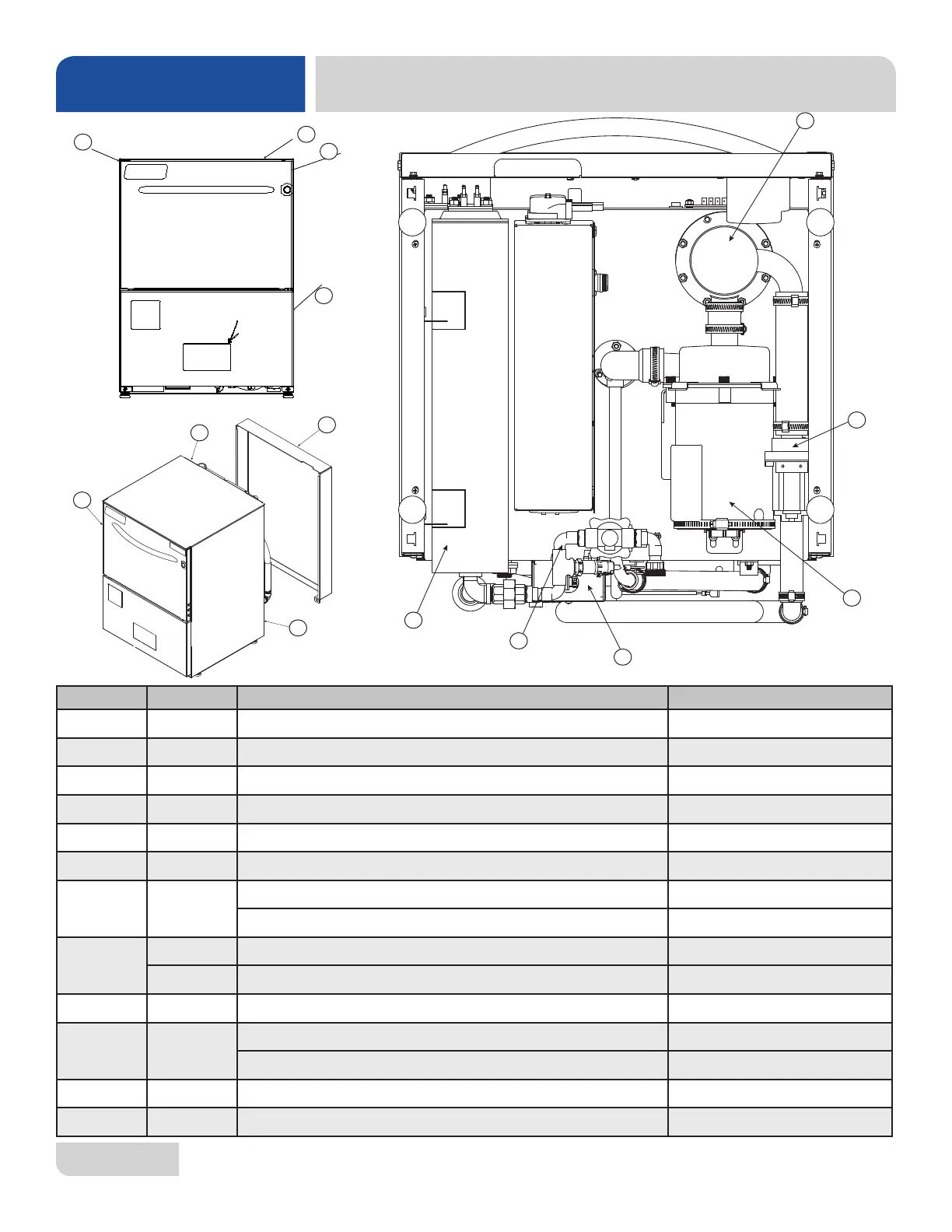

MACHINE ASSEMBLY
PARTS
4
3
2
3
4
5
12
7
9
10
11
8
6
