Jackson AVENGER HT-E - Chemical Feeder Pump Programming

8
07610-004-04-18-R
CHEMICAL
FEEDER PUMP
PROGRAMMING
(INSTALLATION
TECHNICIAN ONLY)

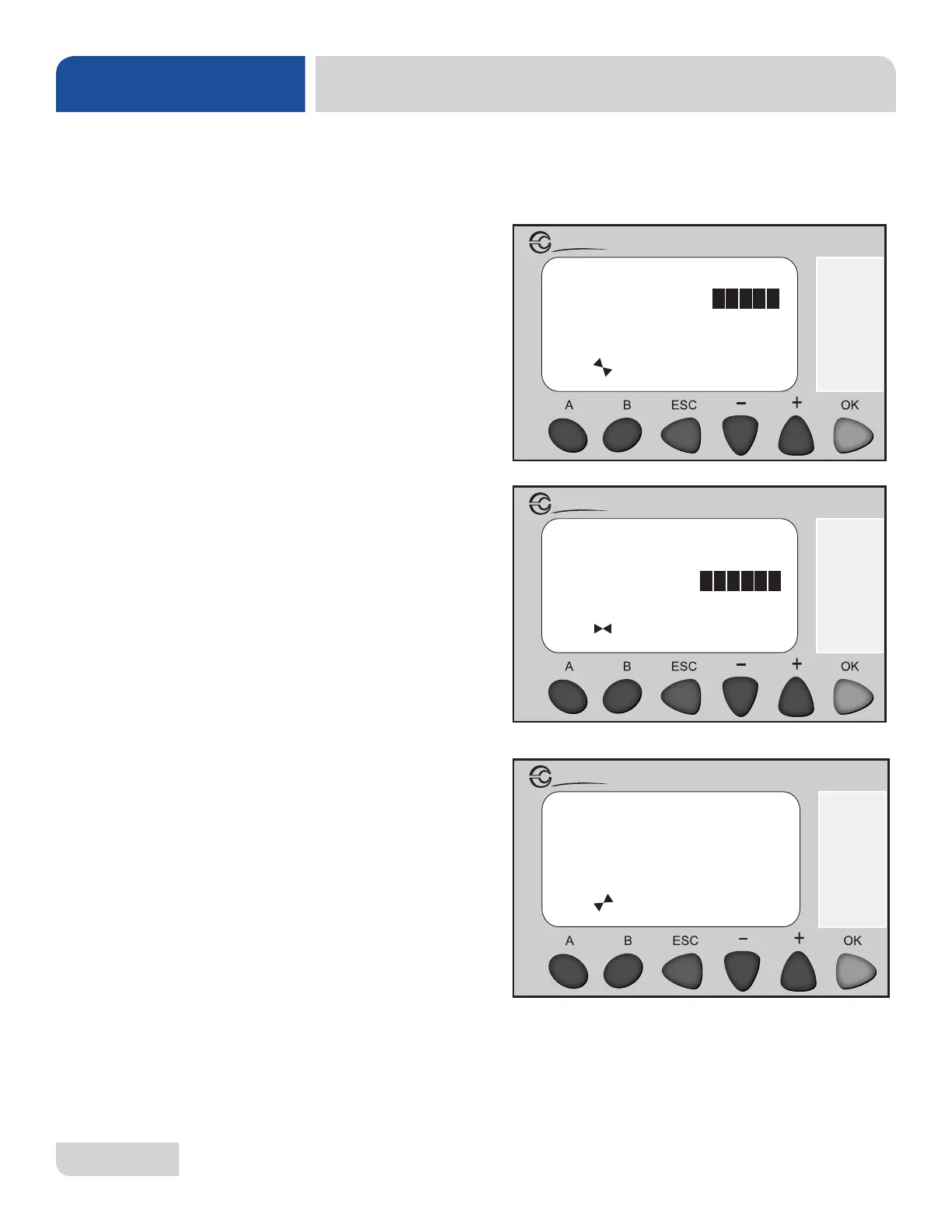

The chemical feeder pump timers are located on screens 3, 4, and 5. To access the
programming mode follow the process detailed below.
INSTRUCTIONS
INSTALLATION
1. Press “A” to cycle
through screens until
reaching the "Fill Cycle
Timers" screen (#3).
2. Press “+” or “-” to
highlight the timer in need
of adjustment and press
“OK” to enter edit mode
for that timer.
3. Press “+” or “-” to make
needed adjustments and
press “OK” to conrm.
4. Press “A” and continue
to the “Wash Cycle Timers”
screen (#4). Follow steps
2 and 3 to conrm any
adjustments.
5. Press “A” and continue
to the “Wash Cycle Timers”
screen (#5). Follow steps
2 and 3 to conrm any
adjustments.
6. Press “A” and “B”
simultaneously to return
to the home screen (#1).
Run the machine through
several cycles to
verify changes.
Fill CYCLE TIMERS:
Fill Timer: s
Det Timer:
R/A Timer: 0012.0s
s
Millenium 3
Crouzet
0010.0
WASH CYCLE TIMERS:
Det Timer:
R/A Timer: 00008s
San Time:
s
Millenium 3
Crouzet
0005.0
s
00008
WASH CYCLE TIMERS:
Wash Time: 00075s
Rinse Time:
Drain Time: 00008s
s
Millenium 3
Crouzet
